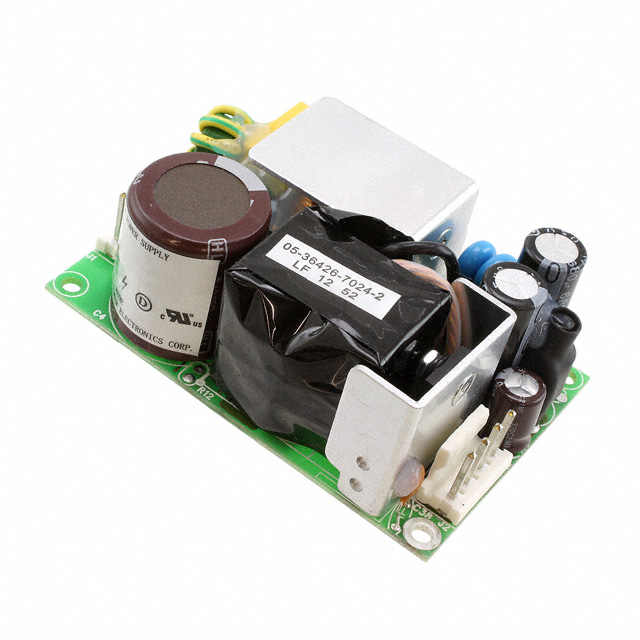

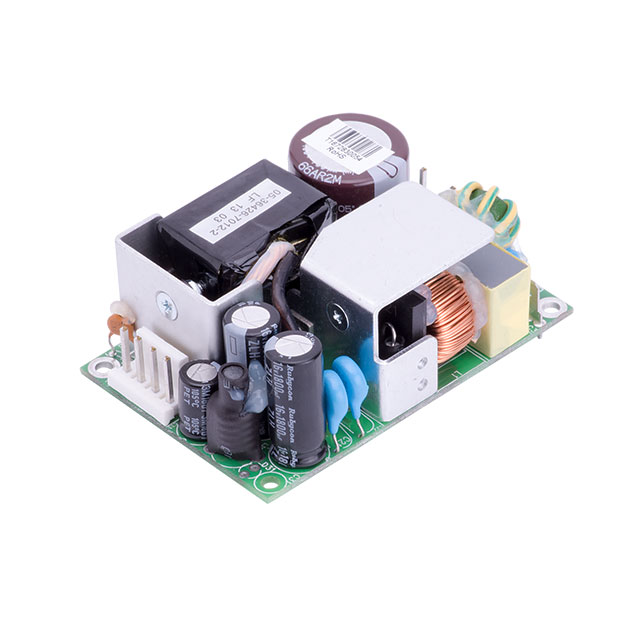

GB60S12 Series
Manufacturer: SL POWER / Advanced Energy
Beta
⌘K
AC/DC CONVERTER 12V 55W
| Part | Minimum Load Required | Features | Voltage - Output 1 | Approval Agency | Efficiency | Mounting Type | Current - Output 1 | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Isolation | Voltage - Input [Max] | Voltage - Input [Min] | Number of Outputs | Applications | Power (Watts) | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SL POWER / Advanced Energy | Universal Input | 12 V | CE | 83 % | Chassis Mount | 4.58 A | 70 °C | -10 °C | 4000 V | 270 VAC | 80 VAC | 1 | ITE (Commercial) | 55 W | 25.4 mm | 3 in | 25.4 mm | 50.8 mm | 50.8 mm | 76.2 mm | Open Frame |
