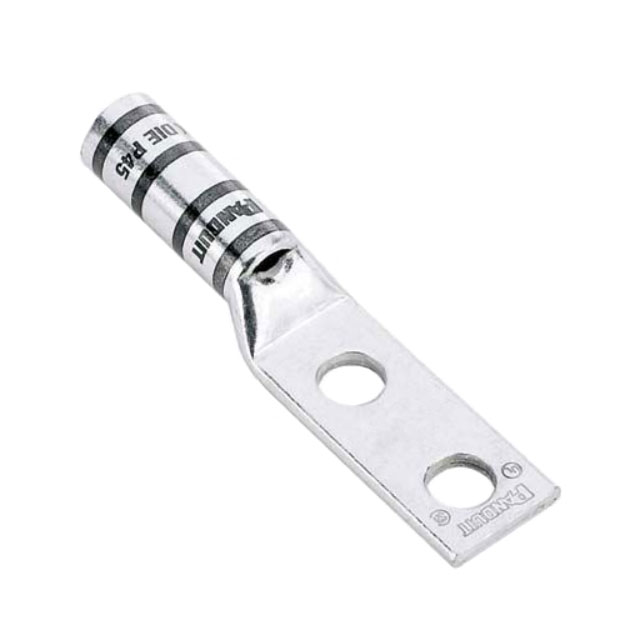

LCC750 Series
Manufacturer: Panduit Corp
Beta
⌘K
LUG TERMINAL, BLANK TONGUE, PAN-LUG SERIES, CRIMP, COMPRESSION LUG, M12
| Part | Diameter - Barrel OD [diameter] | Diameter - Barrel OD [diameter] | Contact Material | Diameter - Barrel ID [diameter] | Diameter - Barrel ID [diameter] | Contact Finish | Tab Thickness | Tab Thickness | Length - Overall [x] | Length - Overall [x] | Mounting Type | Terminal Type | Width - Outer Edges [x] | Width - Outer Edges [x] | Color | Terminal Style | Wire Gauge | Wire Gauge | Termination | Insulation | Diameter - Ring ID [diameter] | Diameter - Ring ID [diameter] | Stud/Tab Size | Diameter - Ring ID | Diameter - Ring ID |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panduit Corp | 1.3 in | 33.02 mm | Copper | 1.03 in | 26.16 mm | Electro-Tin | 0.26 in | 6.6 mm | 178.82 mm | 7.04 " | Free Hanging (In-Line) | Rectangular Tongue | 48.01 mm | 1.89 in | Black | No Stud Hole | 750 MCM | 750 MCM | Barrel Crimp | Non-Insulated | |||||
 Panduit Corp | 1.3 in | 33.02 mm | Copper | 1.03 in | 26.16 mm | Electro-Tin | 0.26 in | 6.6 mm | 145.03 mm | 5.71 in | Free Hanging (In-Line) | Rectangular Tongue | 48.01 mm | 1.89 in | Black | Two Stud Holes | 750 MCM | 750 MCM | Barrel Crimp | Non-Insulated | 10.41 mm | 0.41 " | 0.375 Stud | ||
 Panduit Corp | 1.3 in | 33.02 mm | Copper | 1.03 in | 26.16 mm | Electro-Tin | 0.26 in | 6.6 mm | 178.82 mm | 7.04 " | Free Hanging (In-Line) | Rectangular Tongue | 48.01 mm | 1.89 in | Black | Two Stud Holes | 750 MCM | 750 MCM | Barrel Crimp | Non-Insulated | 0.5 Stud | 13.46 mm | 0.53 in |
