1468A Series
Manufacturer: Belden Inc.
Beta
⌘K

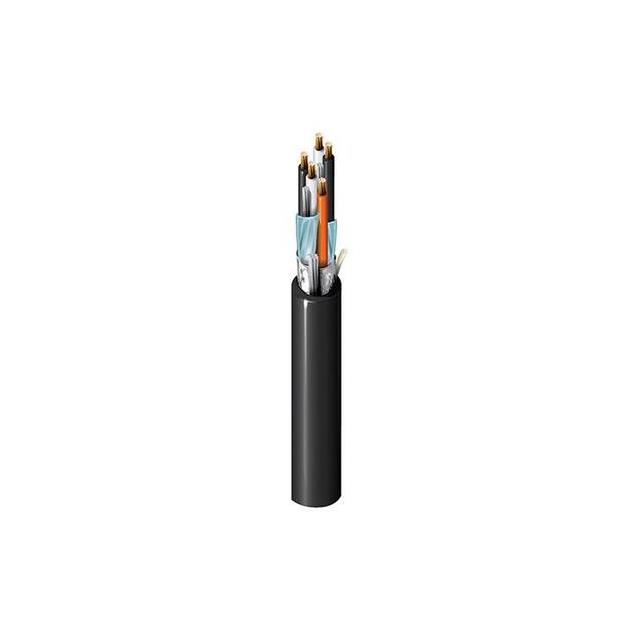

MULTI-PAIR 25COND 18/22AWG
| Part | Shield Material | Shield Coverage | Conductor Insulation | Features | Shield Type | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Material | Operating Temperature [Min] | Operating Temperature [Max] | Wire Gauge | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Cable Type | Ratings | Jacket (Insulation) Material | Voltage | Jacket Color | Usage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | Poly-Vinyl Chloride (PVC) | Drain Wire Rip Cord | Foil | 7 | 26 AWG 30 AWG | 17.37 mm | 0.684 " | Copper Bare | -30 ░C | 105 ░C | 18 AWG 22 AWG | 1.6 mm | 0.063 in | Multi-Pair | UL Style 2464 | Poly-Vinyl Chloride (PVC) | 300 VDC | Black | Instrumentation |
