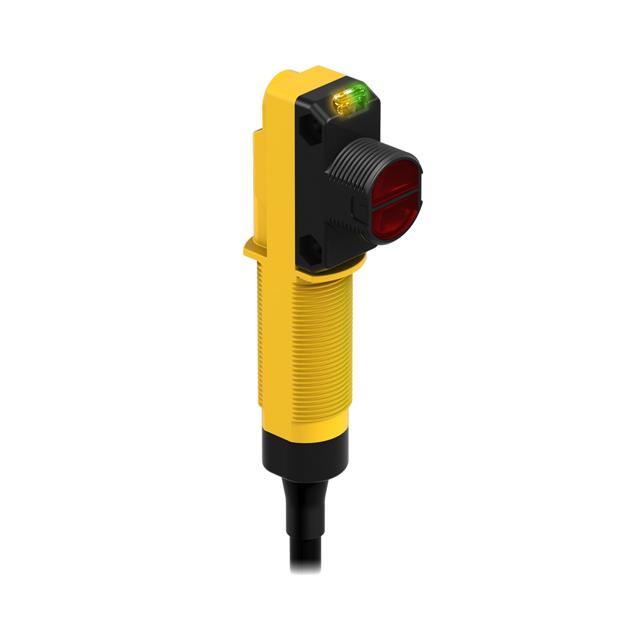

QS18R Series
Manufacturer: BANNER ENGINEERING
Beta
⌘K
WORLD-BEAM QS18 UNIV VOLT; RETRO
| Part | Ingress Protection | Sensing Distance | Sensing Distance | Operating Temperature [Min] | Operating Temperature [Max] | Cable Length | Cable Length | Voltage - Supply [Min] | Voltage - Supply [Max] | Adjustment Type | Light Source | Response Time | Connection Method | Output Configuration | Sensing Method |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BANNER ENGINEERING | IEC IEC IP67 IP67 NEMA 6P | 21.33 ft | 6.5 m | -25 °C | 70 °C | 78.74 " | 2 m | 20 VDC 20 VAC | 140 VAC/DC 140 V | Adjustable Potentiometer | Red (630nm) | 8.3 ms | Cable | Dark-On | Retroreflective NonPolarized |
 BANNER ENGINEERING | IEC IEC IP67 IP67 NEMA 6P | 39.37 in | 1 m | -25 °C | 70 °C | 78.74 " | 2 m | 20 VDC 20 VAC | 140 VAC/DC 140 V | Adjustable Potentiometer | Infrared | 8.3 ms | Cable | Dark-On | Diffuse |
