A31CSQ Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
RELAY AUTOMOTIVE SPDT 80A 24V
| Part | Coil Power | Contact Material | Coil Resistance | Must Operate Voltage | Coil Current | Release Time | Coil Voltage | Must Release Voltage | Switching Voltage [Max] | Contact Form | Contact Rating (Current) | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Features | Termination Style | Coil Type | Operate Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | 1.8 W | Silver Tin Oxide Indium Oxide (AgSnOInO) | 320 Ohms | 16.8 VDC | 0.075 A | 5 ms | 24 VDC | 2.4 VDC | 75 VDC | SPDT (1 Form C) | 80 A | Socketable | 125 °C | -40 C | Sealed - Fully | Quick Connect - Multiple Sizes | Non Latching | 7 ms |

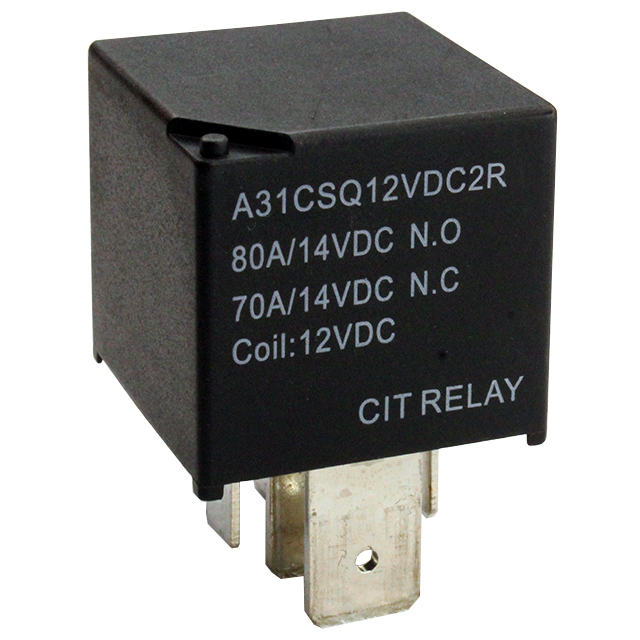

 CIT Relay and Switch | 1.8 W | Silver Tin Oxide Indium Oxide (AgSnOInO) | 80 Ohms | 8.4 VDC | 0.15 A | 5 ms | 12 VDC | 1.2 VDC | 75 VDC | SPDT (1 Form C) | 80 A | Socketable | 125 °C | -40 C | Resistor Sealed - Fully | Quick Connect - Multiple Sizes | Non Latching | 7 ms |

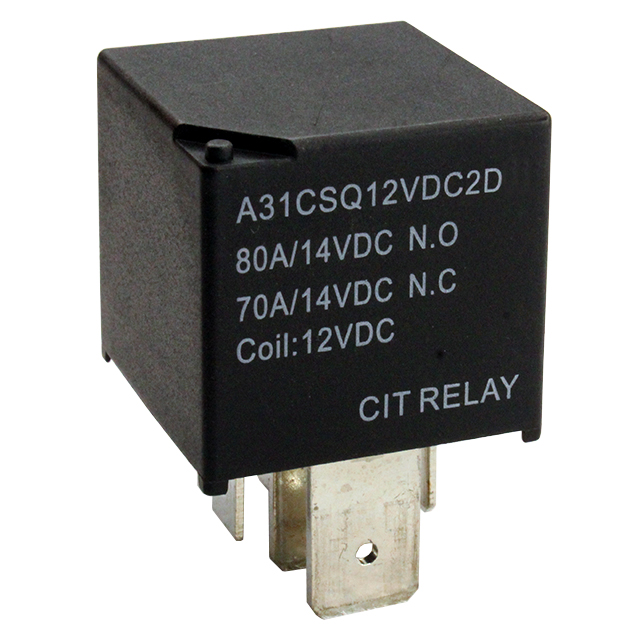

 CIT Relay and Switch | 1.8 W | Silver Tin Oxide Indium Oxide (AgSnOInO) | 80 Ohms | 8.4 VDC | 0.15 A | 5 ms | 12 VDC | 1.2 VDC | 75 VDC | SPDT (1 Form C) | 80 A | Socketable | 125 °C | -40 C | Sealed - Fully | Quick Connect - Multiple Sizes | Non Latching | 7 ms |
 CIT Relay and Switch | 1.8 W | Silver Tin Oxide Indium Oxide (AgSnOInO) | 320 Ohms | 16.8 VDC | 0.075 A | 5 ms | 24 VDC | 2.4 VDC | 75 VDC | SPDT (1 Form C) | 80 A | Socketable | 125 °C | -40 C | Diode Sealed - Fully | Quick Connect - Multiple Sizes | Non Latching | 7 ms |

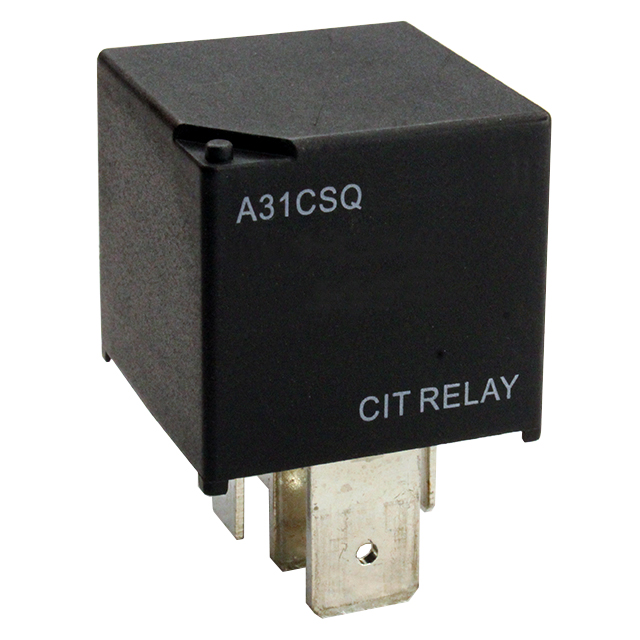

 CIT Relay and Switch | 1.8 W | Silver Tin Oxide Indium Oxide (AgSnOInO) | 320 Ohms | 16.8 VDC | 0.075 A | 5 ms | 24 VDC | 2.4 VDC | 75 VDC | SPDT (1 Form C) | 80 A | Socketable | 125 °C | -40 C | Resistor Sealed - Fully | Quick Connect - Multiple Sizes | Non Latching | 7 ms |
