DVF18 Series

Catalog

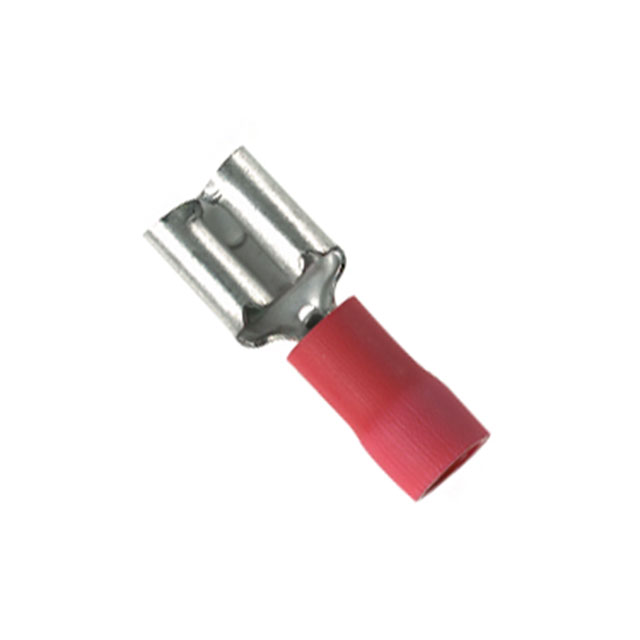

CONN QC RCPT 18-22AWG 0.250

Part	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Mounting Type	Insulation	Length - Overall [x]	Length - Overall [x]	Tab Thickness	Tab Thickness	Termination	Tab Width [x]	Tab Width [x]	Contact Material	Gender	Wire Gauge [Max]	Wire Gauge [Min]	Contact Finish	Color	Terminal Type
Panduit Corp DVF18-250-CY	0.137 in	3.48 mm	Free Hanging (In-Line)	Non-Mating End Insulated	0.81 "	20.57 mm	0.81 mm	0.032 in	Crimp	6.35 mm	0.25 in	Brass	Female	22 AWG	17.5 AWG	Tin	Red	Standard
Panduit Corp DVF18-187-MY	0.137 in	3.48 mm	Free Hanging (In-Line)	Non-Mating End Insulated	0.76 "	19.3 mm	0.81 mm	0.032 in	Crimp	4.75 mm	0.187 in	Brass	Female	22 AWG	17.5 AWG	Tin	Red	Standard
Panduit Corp DVF18-188-MY	0.137 in	3.48 mm	Free Hanging (In-Line)	Non-Mating End Insulated	0.76 "	19.3 mm	0.51 mm	0.02 in	Crimp	4.75 mm	0.187 in	Brass	Female	22 AWG	17.5 AWG	Tin	Red	Standard
Panduit Corp DVF18-188-CY	0.137 in	3.48 mm	Free Hanging (In-Line)	Non-Mating End Insulated	0.76 "	19.3 mm	0.51 mm	0.02 in	Crimp	4.75 mm	0.187 in	Brass	Female	22 AWG	17.5 AWG	Tin	Red	Standard
