85875 Series

Catalog

CONN HEADER VERT 6POS 3.96MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Contact Type	Number of Positions Loaded	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Number of Rows	Connector Type	Contact Length - Mating	Contact Length - Mating	Current Rating (Amps)	Contact Finish - Mating	Shrouding	Insulation Material	Insulation Height	Insulation Height	Termination	Mounting Type	Contact Shape	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Style	Insulation Color	Overall Contact Length [x]	Overall Contact Length [x]
TE Connectivity AMP Connectors 85875-9	2.54 µm	100 µin	Brass	Male Pin	All	Push-Pull	100 çin	2.54 çm	6	105 ░C	-65 ░C	Tin-Lead	0.125 in	3.18 mm	1	Header	19.05 mm	0.75 in	5 A	Tin-Lead	Unshrouded	Thermoplastic	0.125 in	3.18 mm	Solder	Through Hole	Rectangular	3.96 mm	0.156 in	UL94 V-0	Board to Board Cable	Black	25.4 mm	1 in

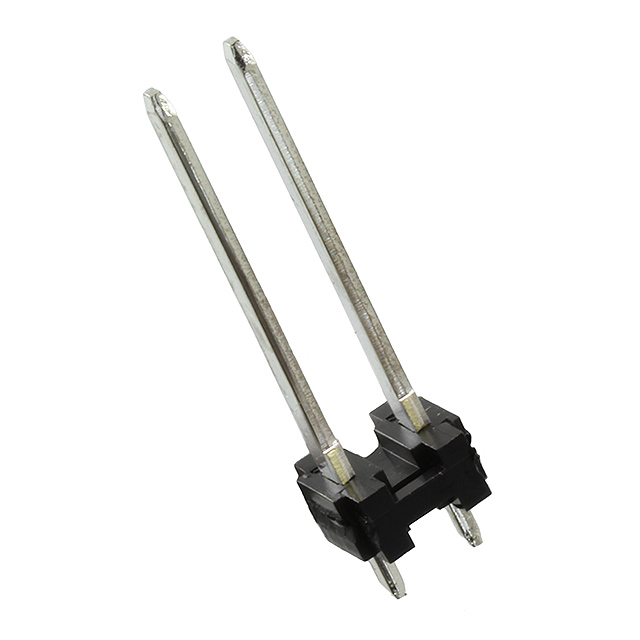

TE Connectivity AMP Connectors 85875-7	2.54 µm	100 µin	Brass	Male Pin	All	Push-Pull	100 çin	2.54 çm	2	105 ░C	-65 ░C	Tin-Lead	0.125 in	3.18 mm	1	Header	19.05 mm	0.75 in	5 A	Tin-Lead	Unshrouded	Thermoplastic	0.125 in	3.18 mm	Solder	Through Hole	Rectangular	3.96 mm	0.156 in	UL94 V-0	Board to Board Cable	Black	25.4 mm	1 in
