51D30 Series
Manufacturer: Grayhill Inc.
Beta
⌘K
SWITCH ROTARY 2-6POS 150MA 115V
| Part | Termination Style | Voltage Rating - DC | Number of Positions [Min] | Number of Positions [Max] | Contact Finish | Index Stops | Mounting Type | Voltage Rating - AC | Depth Behind Panel [custom] | Actuator Type | Contact Timing | Number of Poles per Deck | Angle of Throw | Circuit per Deck | Current Rating (Amps) | Actuator Length [x] | Number of Decks [custom] | Panel Cutout Dimensions [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

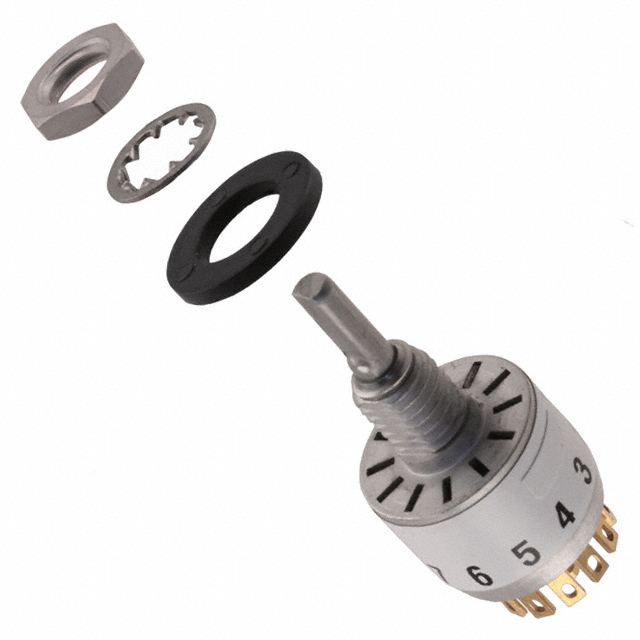

 Grayhill Inc. | Solder Lug | 28 V | 2 | 6 | Gold | Adjustable | Panel Mount | 115 V | 18.77 mm | Flatted (3.17mm Dia) | Non-Shorting (BBM) | 2 | 30 ° | DP6T | 150 mA 200 mA | 9.53 mm | 1 | |
 Grayhill Inc. | Solder Lug | 28 V | 2 | 3 | Gold | Adjustable | Panel Mount | 115 V | 18.77 mm | Flatted (3.17mm Dia) | Non-Shorting (BBM) | 30 ° | 4P3T | 150 mA 200 mA | 9.53 mm | 1 | 6.45 mm | |

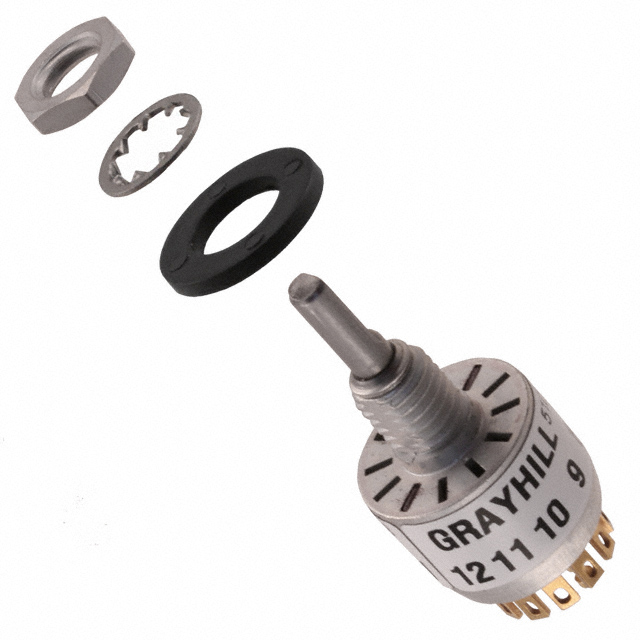

 Grayhill Inc. | Solder Lug | 28 V | 2 | 12 | Gold | Adjustable | Panel Mount | 115 V | 18.77 mm | Flatted (3.17mm Dia) | Non-Shorting (BBM) | 1 | 30 ° | SP12T | 150 mA 200 mA | 9.53 mm | 1 | |
Grayhill Inc. | Solder Lug | 28 V | 2 | 12 | Gold | Adjustable | Panel Mount | 115 V | 18.77 mm | Flatted (3.17mm Dia) | Shorting (MBB) | 1 | 30 ° | SP12T | 150 mA 200 mA | 9.53 mm | 1 |
