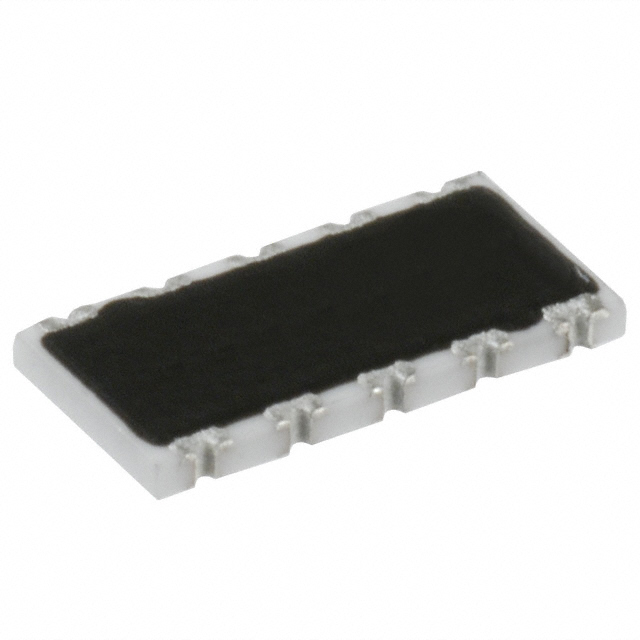

EXB-A10 Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

RESISTOR ARRAY, CHIP, 8 ELEMENTS ROHS COMPLIANT: YES

Part	Tolerance	Number of Pins	Circuit Type	Resistance (Ohms)	Supplier Device Package	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Temperature Coefficient	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Number of Resistors	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Power Per Element	Resistance (Ohms)
Panasonic Industrial Automation Sales EXB-A10P820J	5 %	10	Bussed	82 Ohms	2512	0.026 in	0.65 mm	200 ppm/°C	3.1 mm	6.4 mm	0.252 in	0.122 in	8	-55 °C	125 °C	Surface Mount
Panasonic Industrial Automation Sales EXB-A10E183J	5 %	10	Bussed	18 kOhms	2512	0.026 in	0.65 mm	200 ppm/°C	3.1 mm	6.4 mm	0.252 in	0.122 in	8	-55 °C	125 °C	Surface Mount	63 mW
Panasonic Industrial Automation Sales EXB-A10P153J	5 %	10	Bussed		2512	0.026 in	0.65 mm	200 ppm/°C	3.1 mm	6.4 mm	0.252 in	0.122 in	8	-55 °C	125 °C	Surface Mount		15k
Panasonic Industrial Automation Sales EXB-A10P824J	5 %	10	Bussed	820 kOhms	2512	0.026 in	0.65 mm	200 ppm/°C	3.1 mm	6.4 mm	0.252 in	0.122 in	8	-55 °C	125 °C	Surface Mount
Panasonic Industrial Automation Sales EXB-A10P222J	5 %	10	Bussed	2.2 kOhms	2512	0.026 in	0.65 mm	200 ppm/°C	3.1 mm	6.4 mm	0.252 in	0.122 in	8	-55 °C	125 °C	Surface Mount
Panasonic Industrial Automation Sales EXB-A10E471J	5 %	10	Bussed	470 Ohms	2512	0.026 in	0.65 mm	200 ppm/°C	3.1 mm	6.4 mm	0.252 in	0.122 in	8	-55 °C	125 °C	Surface Mount	63 mW
Panasonic Industrial Automation Sales EXB-A10E222J	5 %	10	Bussed	2.2 kOhms	2512	0.026 in	0.65 mm	200 ppm/°C	3.1 mm	6.4 mm	0.252 in	0.122 in	8	-55 °C	125 °C	Surface Mount	63 mW
Panasonic Industrial Automation Sales EXB-A10E152J	5 %	10	Bussed	1.5 kOhms	2512	0.026 in	0.65 mm	200 ppm/°C	3.1 mm	6.4 mm	0.252 in	0.122 in	8	-55 °C	125 °C	Surface Mount	63 mW
Panasonic Industrial Automation Sales EXB-A10P183J	5 %	10	Bussed	18 kOhms	2512	0.026 in	0.65 mm	200 ppm/°C	3.1 mm	6.4 mm	0.252 in	0.122 in	8	-55 °C	125 °C	Surface Mount
Panasonic Industrial Automation Sales EXB-A10P563J	5 %	10	Bussed	56 kOhms	2512	0.026 in	0.65 mm	200 ppm/°C	3.1 mm	6.4 mm	0.252 in	0.122 in	8	-55 °C	125 °C	Surface Mount
