117-43 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN IC DIP SOCKET 64POS GOLD

Part	Material Flammability Rating	Termination Post Length	Termination Post Length	Current Rating (Amps)	Contact Finish - Mating	Contact Material - Post	Number of Positions or Pins (Grid) [x]	Number of Positions or Pins (Grid)	Number of Positions or Pins (Grid) [y]	Type [custom]	Type [custom]	Type	Mounting Type	Housing Material	Pitch - Post	Pitch - Post	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Features	Termination	Number of Positions or Pins (Grid) [custom]	Type	Type

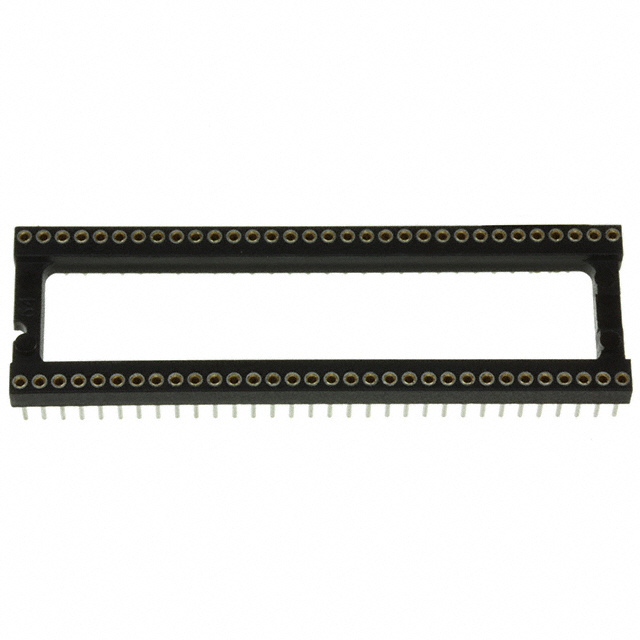

Mill-Max Manufacturing Corp. 117-43-664-41-005000	UL94 V-0	0.125 in	3.18 mm	3 A	Gold	Brass Alloy	2	64	32	15.24 mm	0.6 in	DIP	Through Hole	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.07 in	1.78 mm	0.07 in	1.78 mm	200 µin	5.08 µm	Beryllium Copper	-55 C	125 °C	0.76 Ám	30 Áin	Tin	Open Frame	Solder
Mill-Max Manufacturing Corp. 117-43-640-61-005000	UL94 V-0	0.125 in	3.18 mm	3 A	Gold	Brass Alloy		40		15.24 mm	0.6 in	DIP	Through Hole	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.07 in	1.78 mm	0.07 in	1.78 mm	200 µin	5.08 µm	Beryllium Copper	-55 C	125 °C	0.76 Ám	30 Áin	Tin	Open Frame	Solder

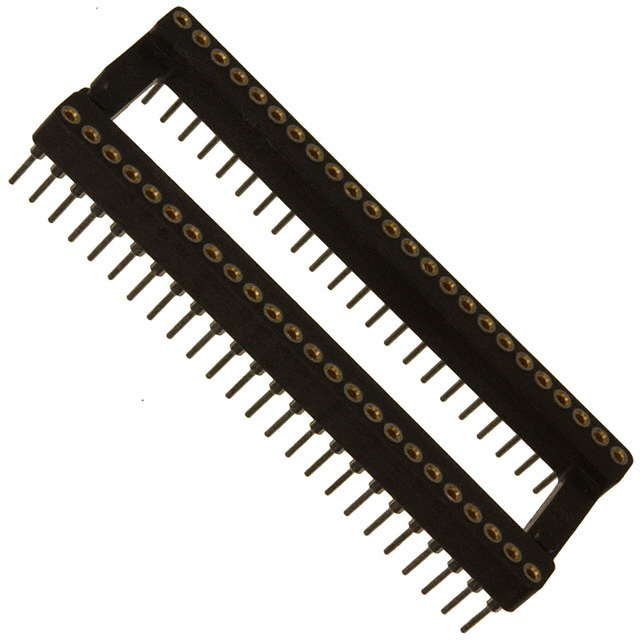

Mill-Max Manufacturing Corp. 117-43-648-41-005000	UL94 V-0	0.125 in	3.18 mm	3 A	Gold	Brass Alloy	24		2	15.24 mm	0.6 in	DIP	Through Hole	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.07 in	1.78 mm	0.07 in	1.78 mm	200 µin	5.08 µm	Beryllium Copper	-55 C	125 °C	0.76 Ám	30 Áin	Tin	Open Frame	Solder	48
Mill-Max Manufacturing Corp. 117-43-428-61-005000	UL94 V-0	0.125 in	3.18 mm	3 A	Gold	Brass Alloy		28				DIP	Through Hole	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.07 in	1.78 mm	0.07 in	1.78 mm	200 µin	5.08 µm	Beryllium Copper	-55 C	125 °C	0.76 Ám	30 Áin	Tin	Open Frame	Solder		0.4 in

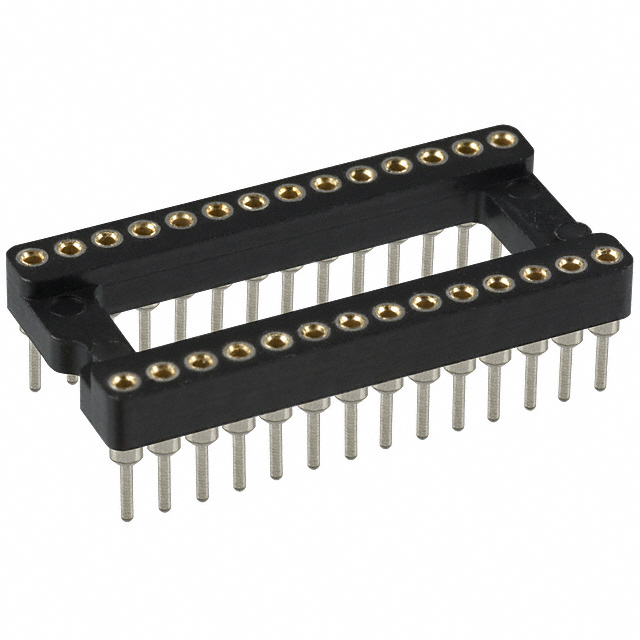

Mill-Max Manufacturing Corp. 117-43-428-41-005000	UL94 V-0	0.125 in	3.18 mm	3 A	Gold	Brass Alloy		28				DIP	Through Hole	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.07 in	1.78 mm	0.07 in	1.78 mm	200 µin	5.08 µm	Beryllium Copper	-55 C	125 °C	0.76 Ám	30 Áin	Tin	Open Frame	Solder		0.4 in

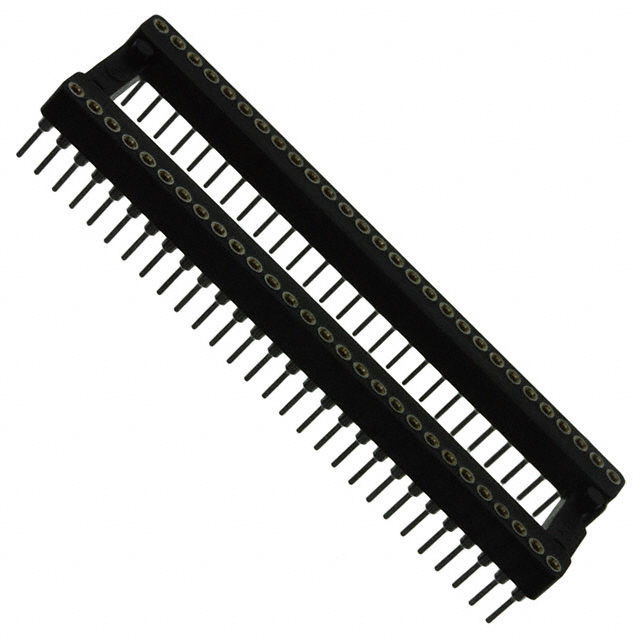

Mill-Max Manufacturing Corp. 117-43-656-41-005000	UL94 V-0	0.125 in	3.18 mm	3 A	Gold	Brass Alloy		56		15.24 mm	0.6 in	DIP	Through Hole	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.07 in	1.78 mm	0.07 in	1.78 mm	200 µin	5.08 µm	Beryllium Copper	-55 C	125 °C	0.76 Ám	30 Áin	Tin	Open Frame	Solder

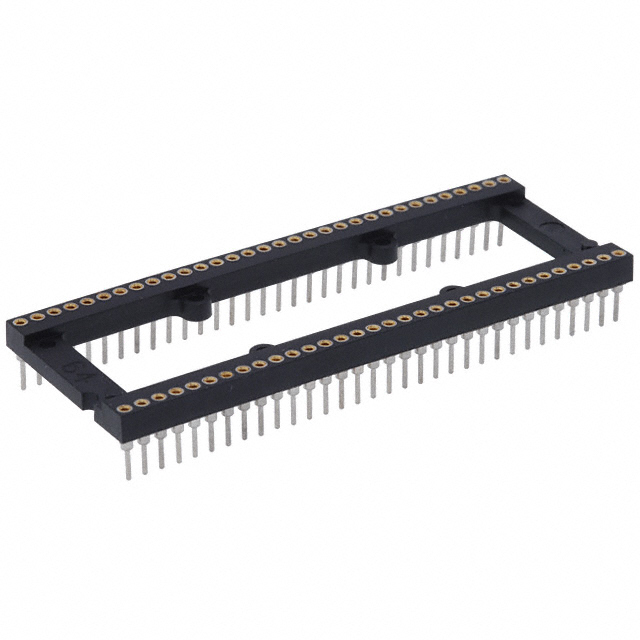

Mill-Max Manufacturing Corp. 117-43-764-41-005000	UL94 V-0	0.125 in	3.18 mm	3 A	Gold	Brass Alloy	2	64	32			DIP	Through Hole	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.07 in	1.78 mm	0.07 in	1.78 mm	200 µin	5.08 µm	Beryllium Copper	-55 C	125 °C	0.76 Ám	30 Áin	Tin	Open Frame	Solder		0.75 in	19.05 mm
Mill-Max Manufacturing Corp. 117-43-640-41-005000	UL94 V-0	0.125 in	3.18 mm	3 A	Gold	Brass Alloy		40		15.24 mm	0.6 in	DIP	Through Hole	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.07 in	1.78 mm	0.07 in	1.78 mm	200 µin	5.08 µm	Beryllium Copper	-55 C	125 °C	0.76 Ám	30 Áin	Tin	Open Frame	Solder

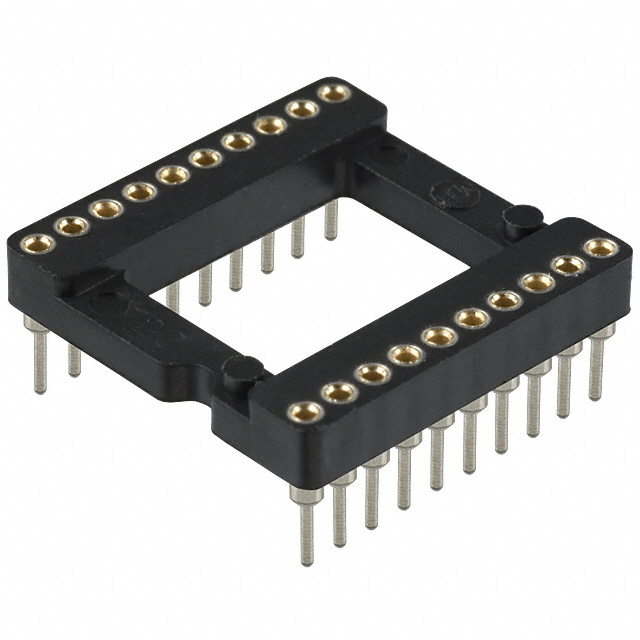

Mill-Max Manufacturing Corp. 117-43-620-41-005000	UL94 V-0	0.125 in	3.18 mm	3 A	Gold	Brass Alloy		20		15.24 mm	0.6 in	DIP	Through Hole	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.07 in	1.78 mm	0.07 in	1.78 mm	200 µin	5.08 µm	Beryllium Copper	-55 C	125 °C	0.76 Ám	30 Áin	Tin	Open Frame	Solder
Mill-Max Manufacturing Corp. 117-43-656-61-005000	UL94 V-0	0.125 in	3.18 mm	3 A	Gold	Brass Alloy		56		15.24 mm	0.6 in	DIP	Through Hole	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.07 in	1.78 mm	0.07 in	1.78 mm	200 µin	5.08 µm	Beryllium Copper	-55 C	125 °C	0.76 Ám	30 Áin	Tin	Open Frame	Solder
