XZCCBDMEDGK161 Series

Manufacturer: SunLED

Catalog

LED RGB CLEAR 4SMD R/A

Part	Wavelength - Peak	Configuration	Wavelength - Dominant	Viewing Angle	Lens Color	Lens Size [y]	Lens Size [x]	Lens Style	Size / Dimension [y]	Size / Dimension [x]	Supplier Device Package	Lens Transparency	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Current - Test	Mounting Type	Package / Case	Color	Height (Max) [z]

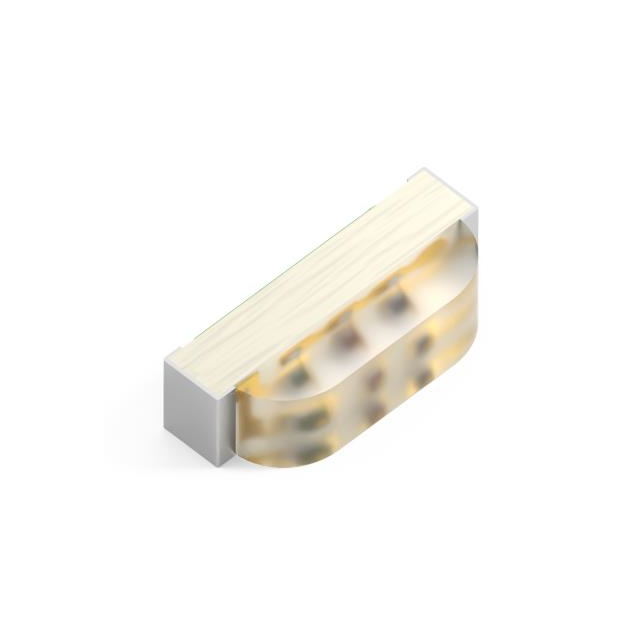

SunLED XZCCBDMEDGK161W	460 nm 515 nm 630 nm	Common Anode	465 nm 525 nm 621 nm	130 °	Colorless	0.7 mm	2.1 mm	Rectangle with Domed Top	1 mm	2.5 mm	4-SMD	Clear	1.8 V	2.65 V	2.65 V	2 mA	Right Angle Surface Mount	4-SMD No Lead	Blue Green Red	0.85 mm
