ESY128M Series
Manufacturer: KEMET
Beta
⌘K

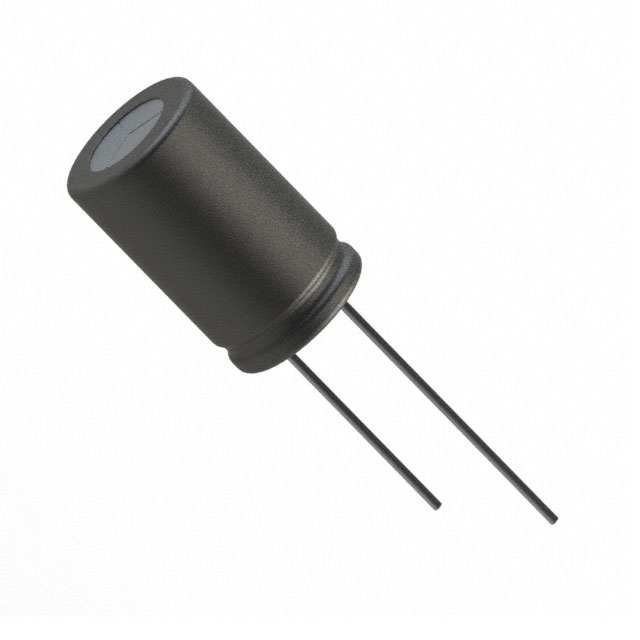

CAP ALUM 1200UF 20% 6.3V RADIAL
| Part | Voltage - Rated | Ripple Current @ Low Frequency | Operating Temperature [Min] | Operating Temperature [Max] | Impedance | Polarization | Lead Spacing | Lead Spacing | Lifetime @ Temp. | Size / Dimension [diameter] | Size / Dimension [diameter] | Package / Case | Tolerance | Capacitance | ESR (Equivalent Series Resistance) | Mounting Type | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Applications | Ripple Current @ High Frequency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | 6.3 VDC | 1.144 A | -40 C | 105 ░C | 38 mOhms | Polar | 0.197 " | 5 mm | 4000 Hrs | 0.394 in | 10 mm | Can Radial | 20 % | 1.2 mF | 38 mOhm | Through Hole | 0.709 in | 18 mm | General Purpose | 1.43 A |
