6653 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

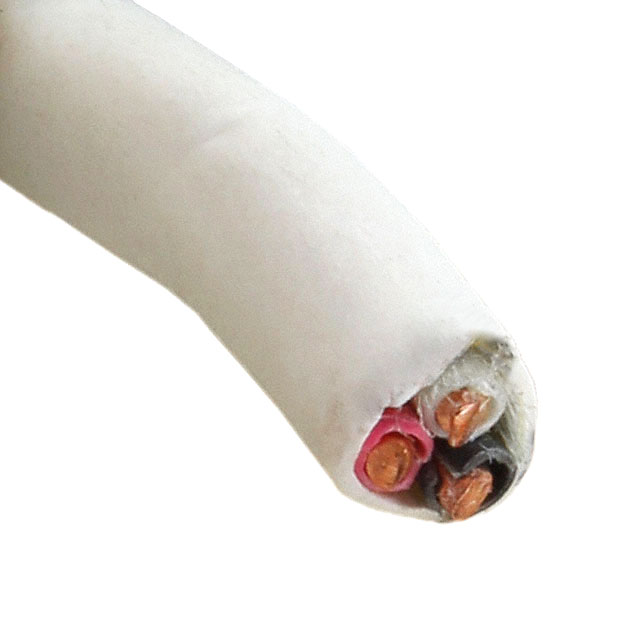

MULTICONDUCTOR CABLE, CONTROL, UNSHIELDED, 3 CONDUCTOR, 18 AWG, 100 FT, 30.5 M
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Cable Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Length [x] | Length [x] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Material | Ratings | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors | Jacket Color | Conductor Material | Conductor Insulation | Voltage | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | -55 C | 105 ░C | Multi-Conductor | 5.44 mm | 0.214 in | 18 AWG | 100 ft | 30.5 m | 0.813 mm | 0.032 in | Poly-Vinyl Chloride (XLPVC) | UL Style 2576 | 28 AWG | 7 | 3 | White | Copper Tinned | Poly-Vinyl Chloride (PVC) | 300 VDC | ||
ALPHA WIRE | -55 C | 105 ░C | Multi-Conductor | 5.44 mm | 0.214 in | 18 AWG | 0.813 mm | 0.032 in | Poly-Vinyl Chloride (XLPVC) | UL Style 2576 | 28 AWG | 7 | 3 | White | Copper Tinned | Poly-Vinyl Chloride (PVC) | 300 VDC | 152.4 m | 500 ft |
