DF12 Series

Catalog

AC POWER ENTRY MODULES DF12 .ABDWF060C0 6A

Part	Current Rating - Filter	Switch Features	Voltage Rating - Appliance Inlet	Connector Type	Filter Type	Current Rating - Appliance Inlet	Material Flammability Rating	Connector Style	Mounting Type	Approval Agency	Termination	Termination	Termination	Ingress Protection	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Current Rating - Circuit Breaker
SCHURTER Inc. DF12.0991.5110.1	6 A	Circuit Breaker Switch On-Off	250 VAC	Receptacle Male Blades - Module	Filtered (EMI RFI) - Commercial	10 A	UL94 V-0	IEC 320-C14	Flange Panel Mount	cULus ENEC	6.3 mm	Quick Connect	0.25 "	IP40	75.5 mm	30.8 mm	6 A

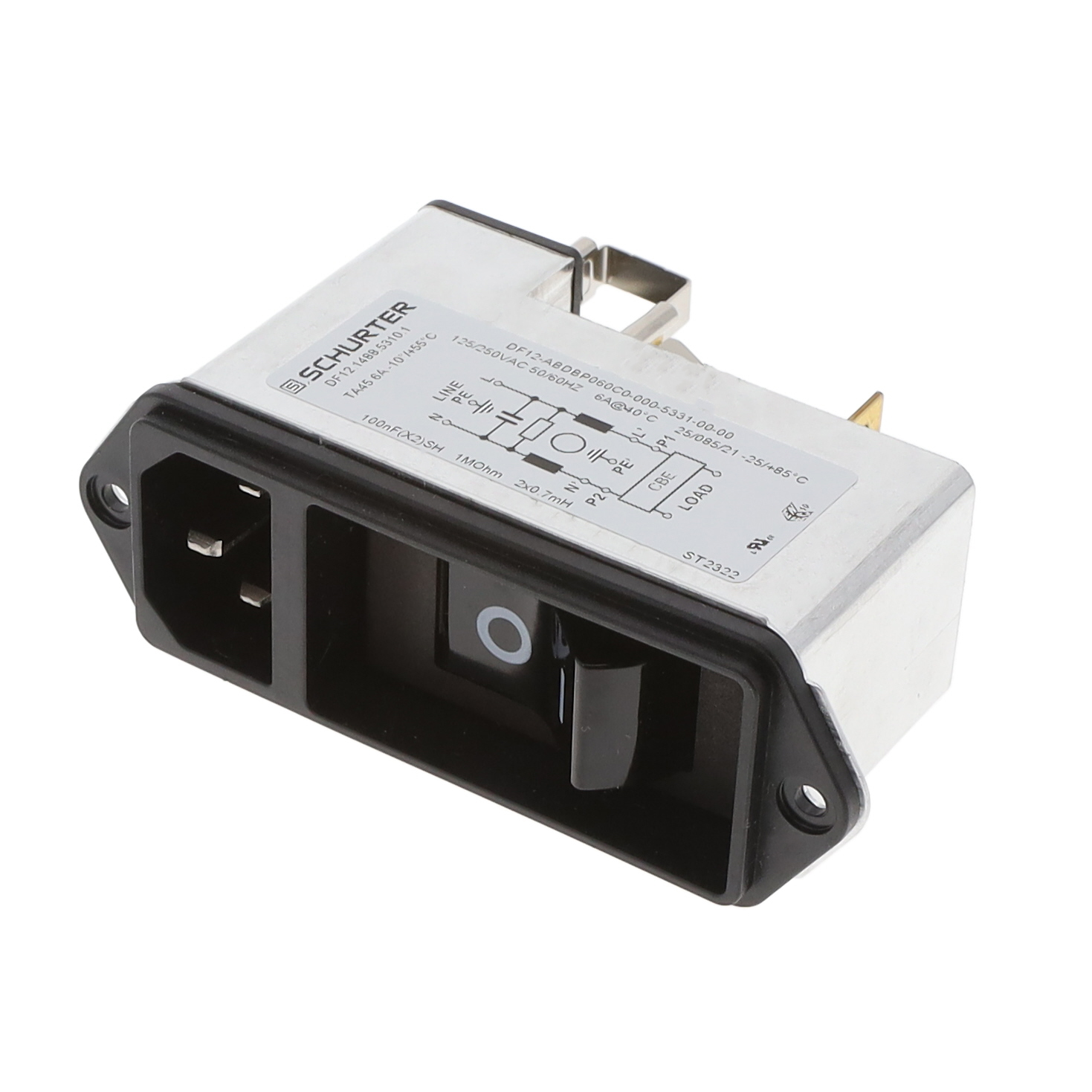

SCHURTER Inc. DF12.1488.5310.1	6 A	Circuit Breaker Switch On-Off	250 VAC	Receptacle Male Blades - Module	Filtered (EMI RFI) - Commercial Medical	10 A	UL94 V-0	IEC 320-C14	Flange Panel Mount	cULus ENEC	6.3 mm	Quick Connect	0.25 "	IP40	75.5 mm	30.8 mm	6 A
SCHURTER Inc. DF12.1250.3310.2	3 A	Circuit Breaker Switch On-Off	250 VAC	Receptacle Male Blades - Module	Filtered (EMI RFI) - Commercial Medical	10 A	UL94 V-0	IEC 320-C14	Flange Panel Mount	cULus ENEC	6.3 mm	Quick Connect	0.25 "	IP40	75.5 mm	30.8 mm
SCHURTER Inc. DF12.1682.9110.1	15 A	Circuit Breaker Switch On-Off	250 VAC	Receptacle Male Blades - Module	Filtered (EMI RFI) - Commercial	10 A	UL94 V-0	IEC 320-C14	Flange Panel Mount	cULus ENEC	6.3 mm	Quick Connect	0.25 "	IP40	75.5 mm	30.8 mm	15 A
SCHURTER Inc. DF12.0885.9110.1	15 A	Circuit Breaker Switch On-Off	250 VAC	Receptacle Male Blades - Module	Filtered (EMI RFI) - Commercial	10 A	UL94 V-0	IEC 320-C14	Flange Panel Mount	cULus ENEC	6.3 mm	Quick Connect	0.25 "	IP40	75.5 mm	30.8 mm	15 A
SCHURTER Inc. DF12.0031.9310.1	15 A	Circuit Breaker Switch On-Off	250 VAC	Receptacle Male Blades - Module	Filtered (EMI RFI) - Commercial Medical	10 A	UL94 V-0	IEC 320-C14	Flange Panel Mount	cULus ENEC	6.3 mm	Quick Connect	0.25 "	IP40	75.5 mm	30.8 mm	15 A
SCHURTER Inc. DF12.0470.7110.1	10 A	Circuit Breaker Switch On-Off	250 VAC	Receptacle Male Blades - Module	Filtered (EMI RFI) - Commercial	10 A	UL94 V-0	IEC 320-C14	Flange Panel Mount	cULus ENEC	6.3 mm	Quick Connect	0.25 "	IP40	75.5 mm	30.8 mm	10 A
