A8L-21-15 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
SWITCH ROCKER DPST 10A 125V
| Part | Electrical Life | Mechanical Life | Actuator Type | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Actuator Marking | Current Rating (Amps) | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Switch Function | Color - Actuator/Cap | Circuit | Voltage Rating - AC | Termination Style | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

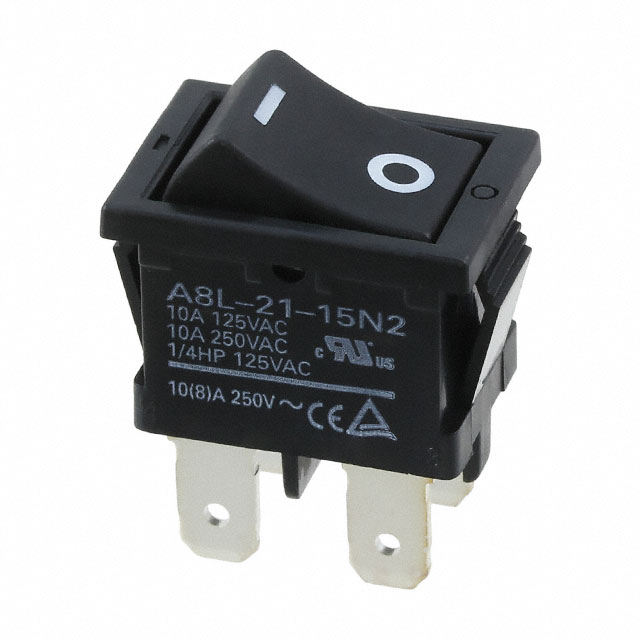

 Omron Electronics Inc-EMC Div | 10000 Cycles | 50000 Cycles | Concave (Curved) | 12.9 mm | 19.2 mm | O I | 10 A | Panel Mount Snap-In | 55 °C | -20 ░C | On-Off | Black | DPST | 125 V | Quick Connect | cULus EN UL |

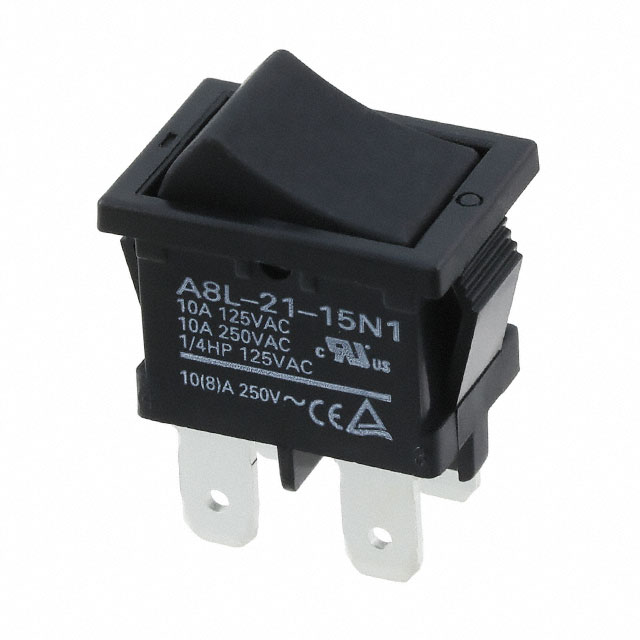

 Omron Electronics Inc-EMC Div | 10000 Cycles | 50000 Cycles | Concave (Curved) | 12.9 mm | 19.2 mm | No Marking | 10 A | Panel Mount Snap-In | 55 °C | -20 ░C | On-Off | Black | DPST | 125 V | Quick Connect | cULus EN UL |
