KX15-140 Series
Manufacturer: JAE Electronics
Beta
⌘K

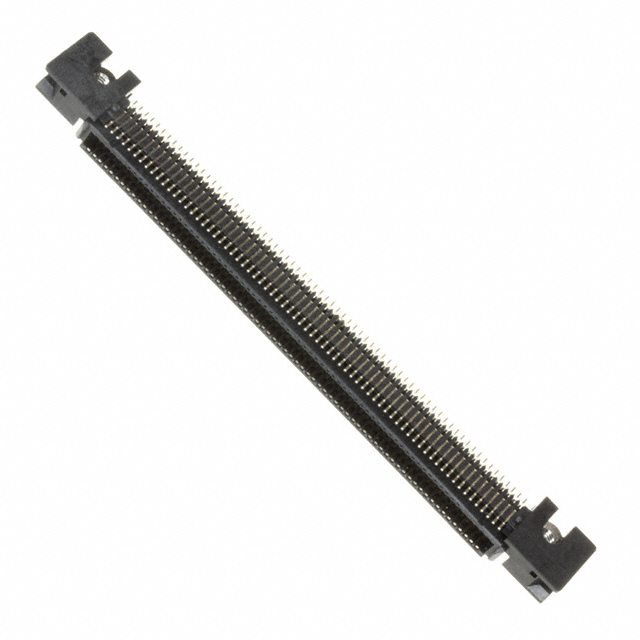

CONN PLUG 140POS R/A SMD AU
| Part | Pitch | Pitch | Number of Rows [custom] | Number of Positions | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Mated Stacking Heights | Height Above Board [z] | Height Above Board [z] | Mounting Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JAE Electronics | 0.8 mm | 0.031 in | 2 | 140 | ||||||||
 JAE Electronics | 0.8 mm | 0.031 in | 2 | 140 | Gold | 0.1 Ám | 4 Áin | 6 mm 9 mm 12 mm 15 mm 18 mm | 5.74 mm | 0.226 " | Surface Mount | Board Guide Solder Retention |
 JAE Electronics | 0.8 mm | 0.031 in | 2 | 140 | Gold | 0.1 Ám | 4 Áin | 5.74 mm | 0.226 " | Right Angle Surface Mount | Board Guide |
