305-020 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 20POS 0.156

Part	Material - Insulation	Termination Rows	Flange Feature	Color	Contact Type	Pitch	Operating Temperature (Min)	Operating Temperature (Max)	Number of Rows	Features	Number of Positions	Contact Finish Thickness	Card Type	Termination	Contact Material	Card Thickness (Min)	Card Thickness (Max)	Read Out	Contact Finish	Mounting Type	Gender	Flange Feature Diameter

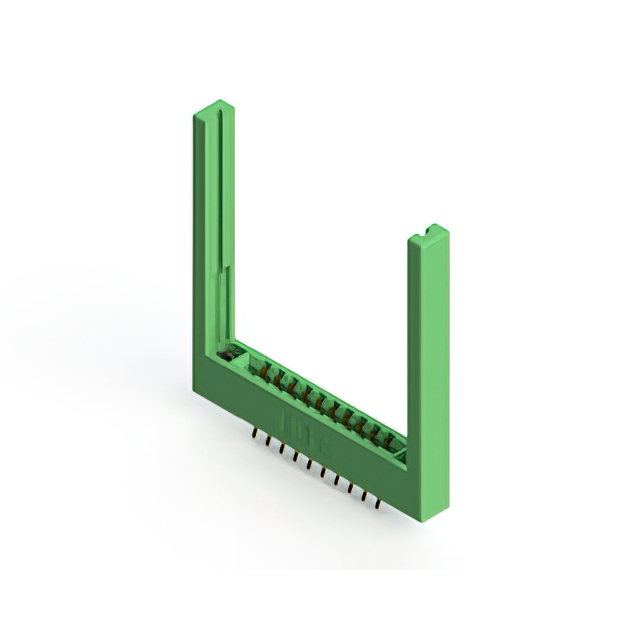

EDAC Inc. 305-020-556-558	Polyester Thermoplastic	2 rows	4-40 Flush Mount Threaded Insert Top Opening	Green	Semi Bellows	0.156 in	-40 °C	105 °C	2	Card Extender Card Guides	10 20	10 Ąin	Dual Edge Non Specified	Solder	Copper Alloy	0.054 in	0.07 in	Dual	Gold	Board Edge Straddle Mount	Female
EDAC Inc. 305-020-556-568	Polyester Thermoplastic	2 rows	4-40 Flush Mount Threaded Insert Top Opening	Green	Semi Bellows	0.156 in	-40 °C	105 °C	2	Card Extender Card Guides	10 20	10 Ąin	Dual Edge Non Specified	Solder	Copper Alloy	0.054 in	0.07 in	Dual	Gold	Board Edge Straddle Mount	Female

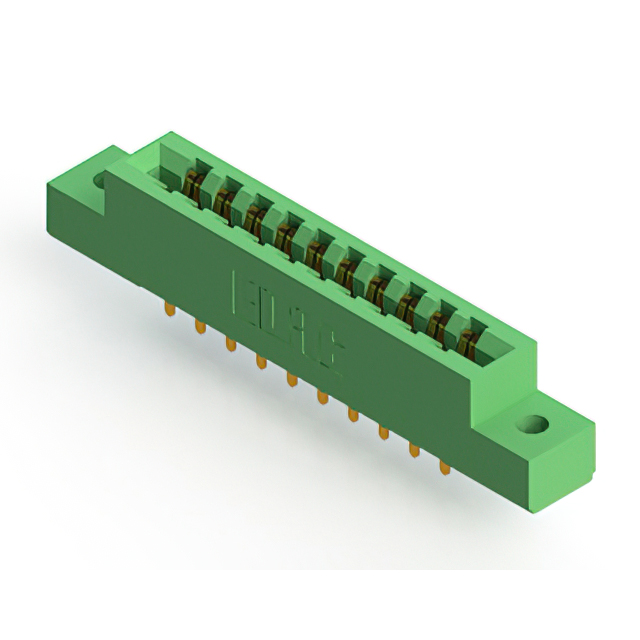

EDAC Inc. 305-020-521-202	Polyester Thermoplastic	2 rows	Flush Mount Top Opening Unthreaded	Green	Semi Bellows	0.156 in	-40 °C	105 °C	2		10 20	10 Ąin	Dual Edge Non Specified	Solder	Copper Alloy	0.054 in	0.07 in	Dual	Gold	Panel Mount Through Hole	Female	0.128 in

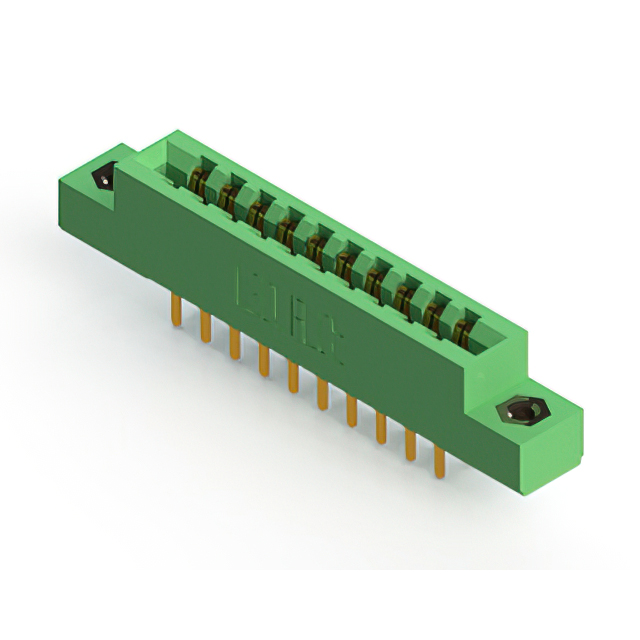

EDAC Inc. 305-020-520-508	Polyester Thermoplastic	2 rows	4-40 Flush Mount Threaded Insert Top Opening	Green	Semi Bellows	0.156 in	-40 °C	105 °C	2		10 20	10 Ąin	Dual Edge Non Specified	Solder	Copper Alloy	0.054 in	0.07 in	Dual	Gold	Panel Mount Through Hole	Female

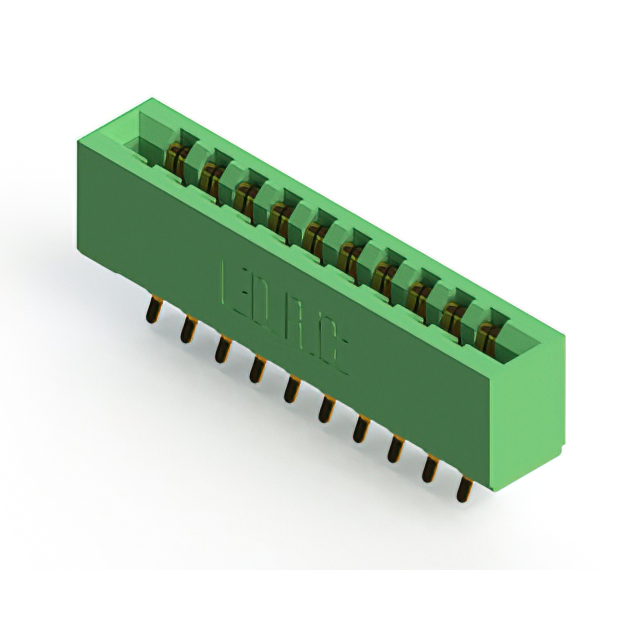

EDAC Inc. 305-020-556-201	Polyester Thermoplastic	2 rows		Green	Semi Bellows	0.156 in	-40 °C	105 °C	2	Card Extender	10 20	10 Ąin	Dual Edge Non Specified	Solder	Copper Alloy	0.054 in	0.07 in	Dual	Gold	Board Edge Straddle Mount	Female

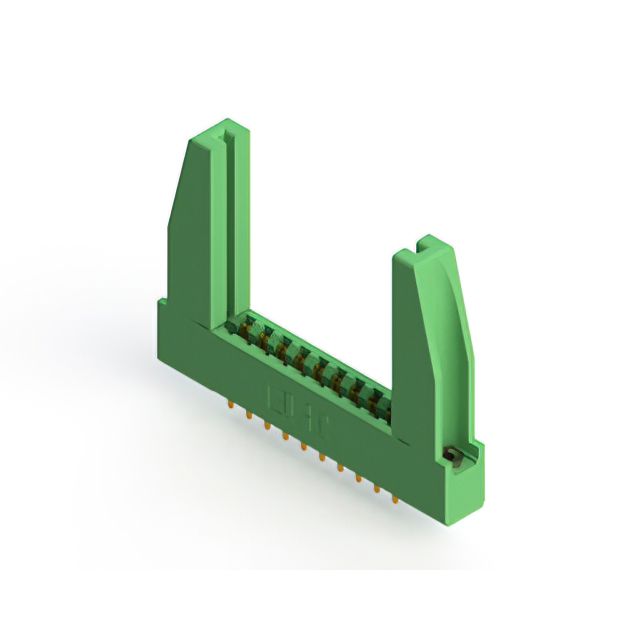

EDAC Inc. 305-020-521-578	Polyester Thermoplastic	2 rows	4-40 Flush Mount Threaded Insert Top Opening	Green	Semi Bellows	0.156 in	-40 °C	105 °C	2		10 20	10 Ąin	Dual Edge Non Specified	Solder	Copper Alloy	0.054 in	0.07 in	Dual	Gold	Panel Mount Through Hole	Female

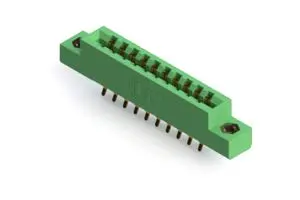

EDAC Inc. 305-020-556-208	Polyester Thermoplastic	2 rows	4-40 Flush Mount Threaded Insert Top Opening	Green	Semi Bellows	0.156 in	-40 °C	105 °C	2	Card Extender	10 20	10 Ąin	Dual Edge Non Specified	Solder	Copper Alloy	0.054 in	0.07 in	Dual	Gold	Board Edge Straddle Mount	Female
EDAC Inc. 305-020-555-507	Polyester Thermoplastic	2 rows	Flush Mount M3 Threaded Insert Top Opening	Green	Semi Bellows	0.156 in	-40 °C	105 °C	2	Card Extender	10 20	10 Ąin	Dual Edge Non Specified	Solder	Copper Alloy	0.054 in	0.07 in	Dual	Gold	Board Edge Straddle Mount	Female

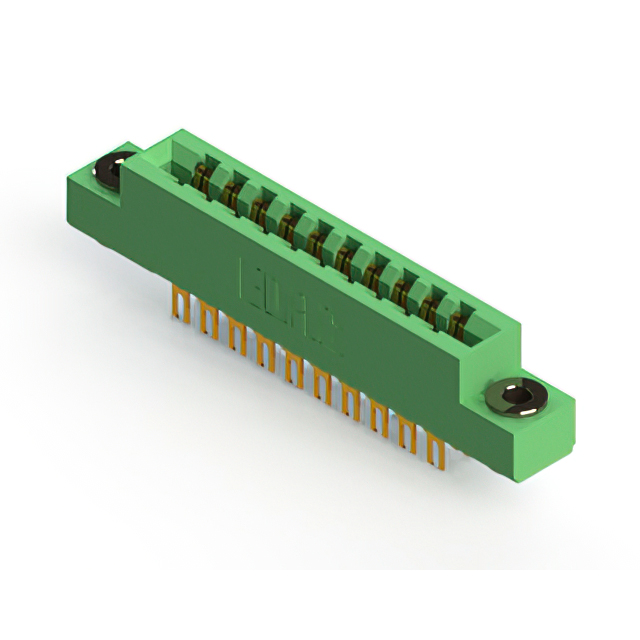

EDAC Inc. 305-020-500-203	Polyester Thermoplastic	2 rows	Floating Bobbin Flush Mount	Green	Semi Bellows	0.156 in	-40 °C	105 °C	2		10 20	10 Ąin	Dual Edge Non Specified	Solder Eyelet(s)	Copper Alloy	0.054 in	0.07 in	Dual	Gold	Panel Mount	Female	0.116 in

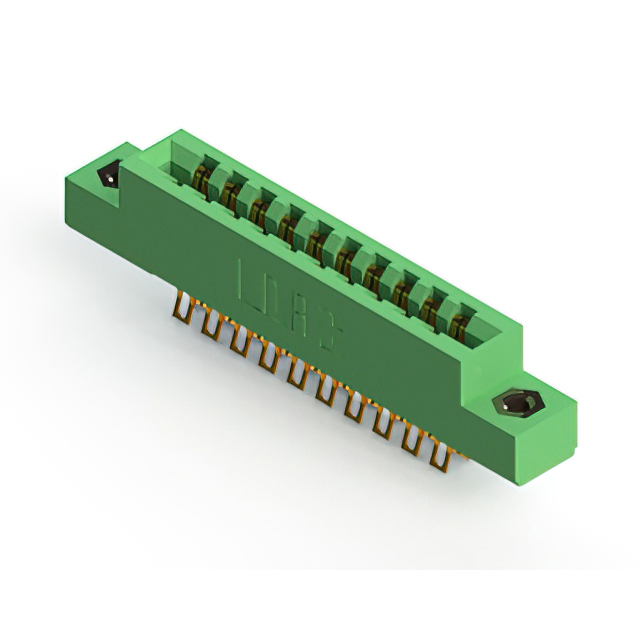

EDAC Inc. 305-020-555-508	Polyester Thermoplastic	2 rows	4-40 Flush Mount Threaded Insert Top Opening	Green	Semi Bellows	0.156 in	-40 °C	105 °C	2	Card Extender	10 20	10 Ąin	Dual Edge Non Specified	Solder	Copper Alloy	0.054 in	0.07 in	Dual	Gold	Board Edge Straddle Mount	Female
