SSL-LX100133 Series

Manufacturer: Lumex Opto/Components Inc.

Catalog

LED RED DIFFUSED T-10MM T/H

Part	Millicandela Rating	Voltage - Forward (Vf) (Typ)	Supplier Device Package	Configuration	Lens Size [diameter]	Color	Viewing Angle	Lens Transparency	Height (Max) [Max] [z]	Wavelength - Peak	Current - Test	Package / Case	Lens Color	Lens Style	Mounting Type
Lumex Opto/Components Inc. SSL-LX100133SRD/D	400 mcd	1.7 V	T-10mm	Independent	10 mm Dia	Red	60 °	Diffused	13.5 mm	660 nm	20 mA	Radial	Red	Round with Domed Top	Through Hole
Lumex Opto/Components Inc. SSL-LX100133AC	110 mcd	2.1 V	T-10mm	Standard	10 mm Dia	Amber	20 °	Clear	13.5 mm	605 nm	20 mA	Radial	Colorless	Round with Domed Top	Through Hole

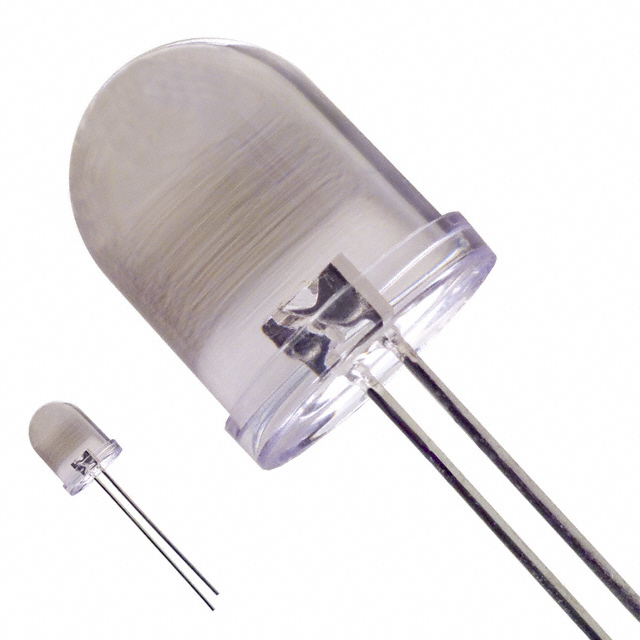

Lumex Opto/Components Inc. SSL-LX100133USBC	800 mcd	3.6 V	T-10mm	Standard	10 mm Dia	Blue	15 °	Clear	13.5 mm	470 nm	20 mA	Radial	Colorless	Round with Domed Top	Through Hole
Lumex Opto/Components Inc. SSL-LX100133SRD	550 mcd	1.7 V	T-10mm	Standard	10 mm Dia	Red	60 °	Diffused	13.5 mm	660 nm	20 mA	Radial	Red	Round with Domed Top	Through Hole

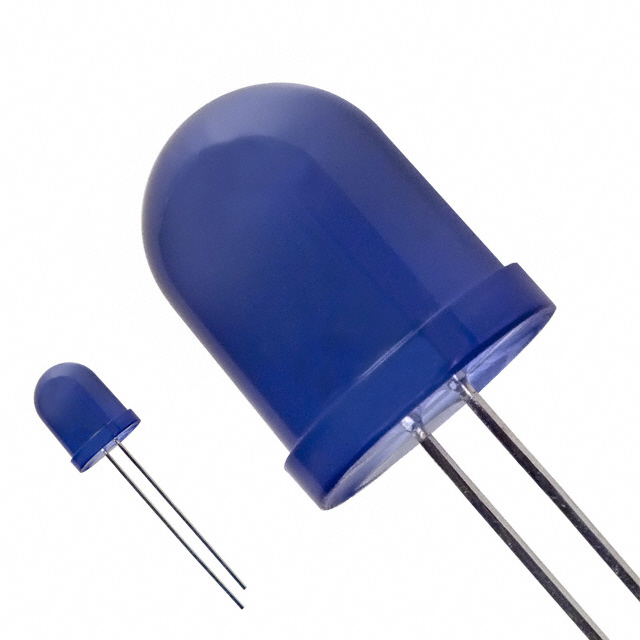

Lumex Opto/Components Inc. SSL-LX100133USBD	300 mcd	3.6 V	T-10mm	Standard	10 mm Dia	Blue	60 °	Diffused	13.5 mm	470 nm	20 mA	Radial	Blue	Round with Domed Top	Through Hole
Lumex Opto/Components Inc. SSL-LX100133SGC	120 mcd	2.2 V	T-10mm	Standard	10 mm Dia	Green	30 °	Clear	13.5 mm	565 nm	20 mA	Radial	Colorless	Round with Domed Top	Through Hole
Lumex Opto/Components Inc. SSL-LX100133ID	40 mcd	2 V	T-10mm	Standard	10 mm Dia	Red	60 °	Diffused	13.5 mm	635 nm	20 mA	Radial	Red	Round with Domed Top	Through Hole
Lumex Opto/Components Inc. SSL-LX100133SIC		2 V	T-10mm	Standard	10 mm Dia	Red	30 °	Clear	13.5 mm	636 nm	20 mA	Radial	Colorless	Round with Domed Top	Through Hole
Lumex Opto/Components Inc. SSL-LX100133SGD	45 mcd	2.2 V	T-10mm	Standard	10 mm Dia	Green	60 °	Diffused	13.5 mm	565 nm	20 mA	Radial	Green	Round with Domed Top	Through Hole
Lumex Opto/Components Inc. SSL-LX100133SRD/G	725 mcd	1.7 V	T-10mm	Standard	10 mm Dia	Red	60 °	Diffused	13.5 mm	660 nm	20 mA	Radial	Red	Round with Domed Top	Through Hole
