RAD1R1 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
SWITCH ROCKER DPDT 3A 120V
| Part | Mechanical Life | Color - Actuator/Cap | Actuator Marking | Switch Function | Voltage Rating - AC | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - DC | Current Rating (Amps) | Ingress Protection | Mounting Type | Features | Termination Style | Actuator Type | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

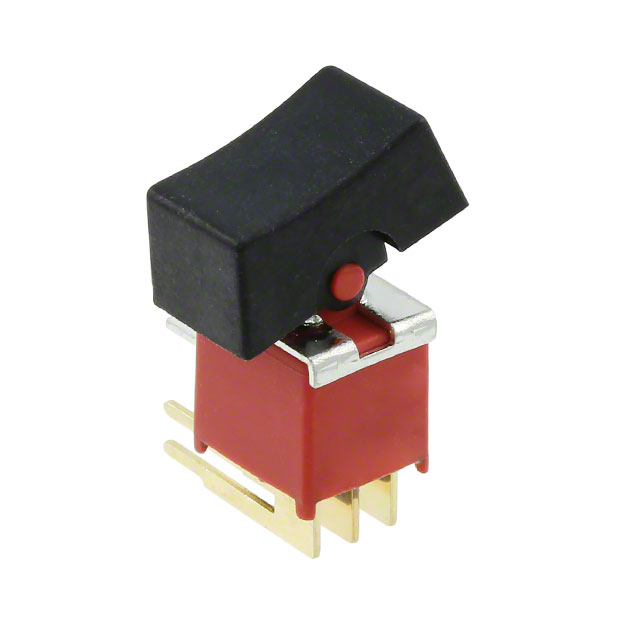

 TE Connectivity AMP Connectors | 30000 Steps | Black | No Marking | On-On | 120 V | 85 °C | -30 ░C | 28 V | 3 A | IP67 - Dust Tight Waterproof | Through Hole | Process Sealed | PC Pin | Concave (Curved) | DPDT |

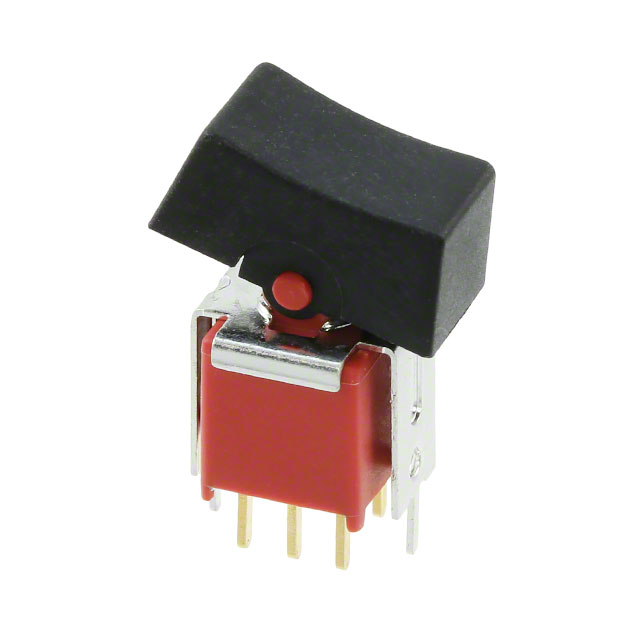

 TE Connectivity AMP Connectors | 30000 Steps | Black | No Marking | On-On | 20 V | 85 °C | -30 ░C | 20 V | 0.4 VA | IP67 - Dust Tight Waterproof | Right Angle Through Hole Vertical | Process Sealed | PC Pin | Concave (Curved) | DPDT |

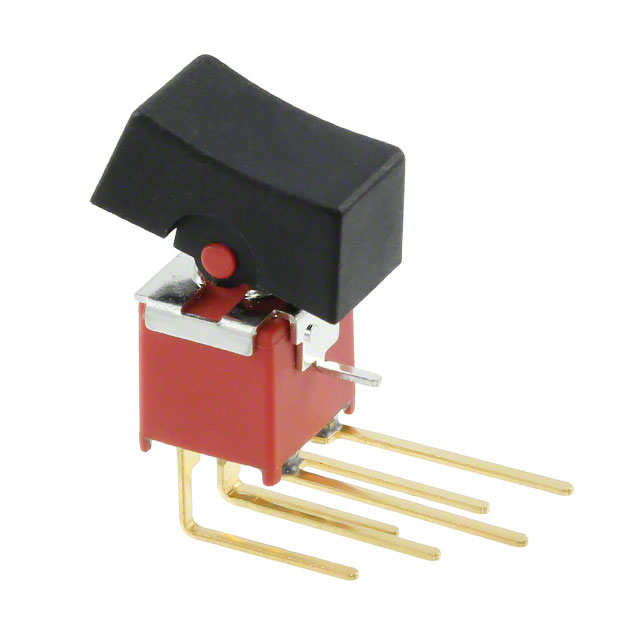

 TE Connectivity AMP Connectors | 30000 Steps | Black | No Marking | On-On | 120 V | 85 °C | -30 ░C | 28 V | 3 A | IP67 - Dust Tight Waterproof | Right Angle Through Hole | Process Sealed | PC Pin | Concave (Curved) | DPDT |
