7804R Series
Manufacturer: Belden Inc.
Beta
⌘K

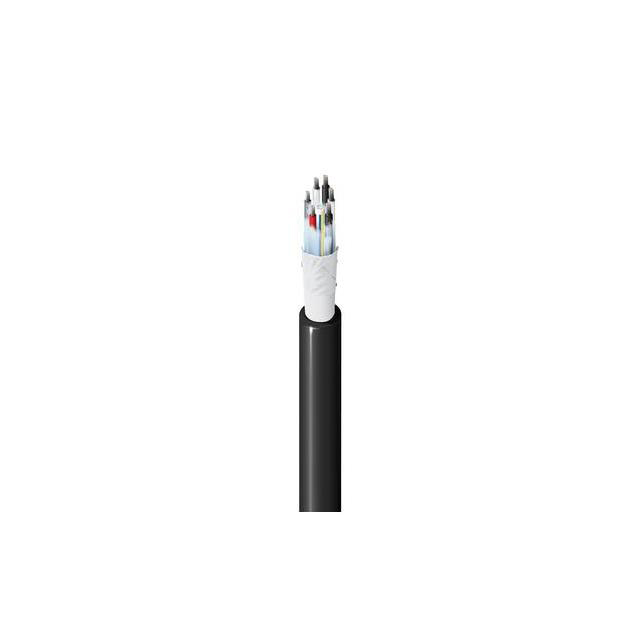

COMPOSITE CAMERA CABLE
| Part | Shield Material | Shield Coverage | Conductor Insulation | Ratings | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Material | Shield Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Number of Conductors | Wire Gauge | Cable Type | Conductor Strand [custom] | Conductor Strand [custom] | Length | Length | Jacket (Insulation) Material | Jacket Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Copper Tinned | 95 % | Poly-Vinyl Chloride (PVC) | UL Style CMR | 70 °C | -40 C | Copper Tinned | Braid | 9.06 mm | 0.357 in | 8 | 20 AWG 24 AWG | Multi-Conductor | 7 Strands 19 | 32 AWG | 1640 ft | 499.9 m | Poly-Vinyl Chloride (PVC) | Black |
 Belden Inc. | Copper Tinned | 95 % | Poly-Vinyl Chloride (PVC) | UL Style CMR | 70 °C | -40 C | Copper Tinned | Braid | 9.06 mm | 0.357 in | 8 | 20 AWG 24 AWG | Multi-Conductor | 7 Strands 19 | 32 AWG | 1000 ft | 304.8 m | Poly-Vinyl Chloride (PVC) | Black |
