SRD1-1B Series
Manufacturer: Switch Components
Beta
⌘K
VAC SEALED IP67, SPST OFF-(ON)
| Part | Color - Actuator/Cap | Switch Function | Mounting Type | Circuit | Current Rating | Voltage Rating - AC | Ingress Protection IP Rating | Ingress Protection Description | Actuator Marking | Operating Temperature (Max) | Operating Temperature (Min) | Panel Cutout Width | Panel Cutout Shape | Panel Cutout Length | Actuator Type | Quick Connect Size (0.250") | Termination Style | Mechanical Life (Cycles) | Electrical Life (Cycles) | Voltage Rating - DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

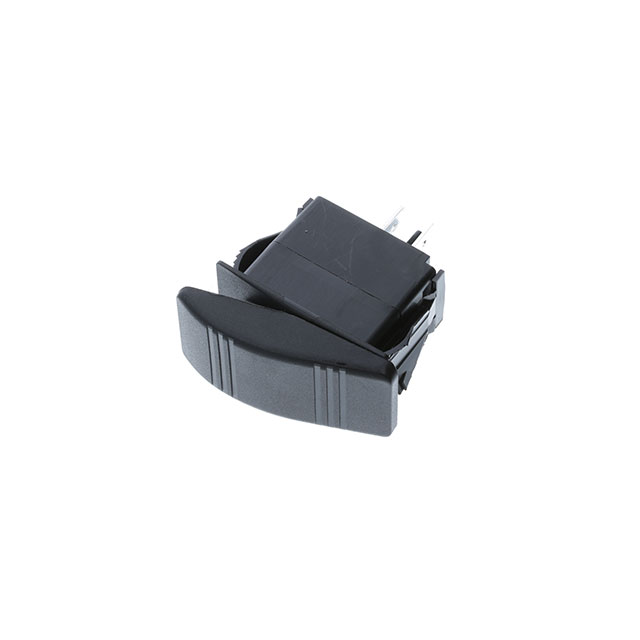

 Switch Components | Black | Off-Mom | Panel Mount Snap-In | SPST | 20 A | 125 V | IP56 | Dust Protected Water Resistant | No Marking | 85 °C | -25 °C | 21.2 mm | Rectangular | 36.8 mm | Convex (Reverse V) | 0.25 in | Quick Connect | |||
Switch Components | Black | Off-Mom | Panel Mount Snap-In | SPST-NO | 20 A 21 A | 125 V | IP56 | Dust Protected Water Resistant | No Marking | 85 °C | -25 °C | 21.2 mm | Rectangular | 36.8 mm | Convex (Reverse V) | 0.25 in | Quick Connect | 10000 Cycles | 6000 Cycles | 14 V |

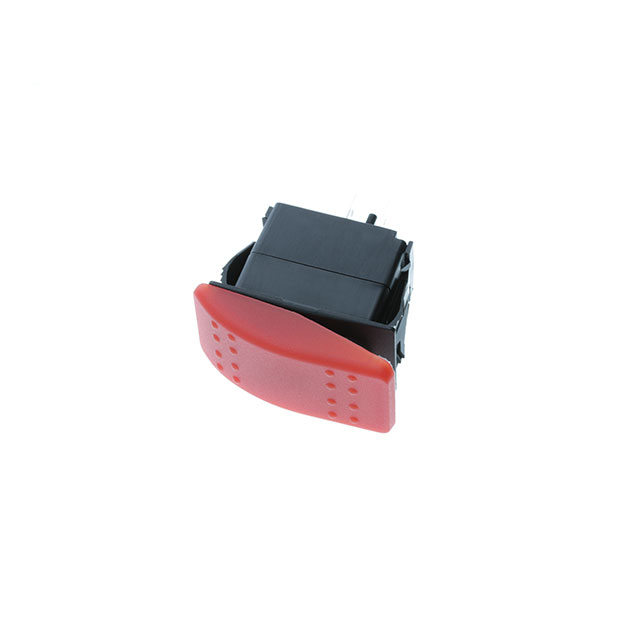

 Switch Components | Red | Off-Mom | Panel Mount Snap-In | SPST | 20 A | 125 V | IP56 | Dust Protected Water Resistant | No Marking | 85 °C | -25 °C | 21.2 mm | Rectangular | 36.8 mm | Convex (Reverse V) | 0.25 in | Quick Connect |
