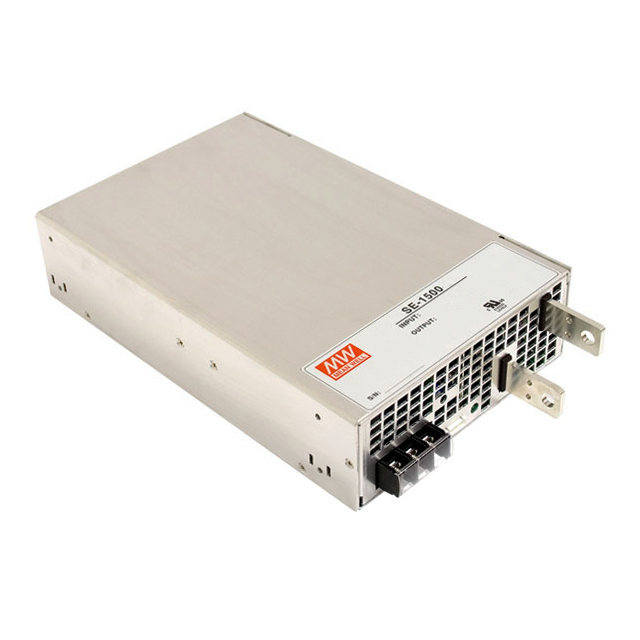

SE-1500 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
AC/DC CONVERTER 24V 1500W
| Part | Minimum Load Required | Current - Output 1 | Efficiency | Voltage - Output 1 | Power (Watts) | Features | Type | Applications | Number of Outputs | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Mounting Type | Voltage - Input [Min] | Voltage - Input [Max] | Voltage - Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | 62.5 A | 87 % | 24 V | 1500 W | Adjustable Output Remote On/Off Remote Sense | Enclosed | ITE (Commercial) | 1 | 70 °C | -20 °C | 63.5 mm | 278 mm | 177.8 mm | 7 " | 2.5 in | 10.94 in | Chassis Mount | 180 VAC 254 VDC | 264 VAC 370 VDC | 3000 V | |
MEAN WELL USA Inc. | 31.3 A | 89 % | 48 V | 1502 W | Adjustable Output Remote On/Off Remote Sense | Enclosed | ITE (Commercial) | 1 | 70 °C | -20 °C | 63.5 mm | 278 mm | 177.8 mm | 7 " | 2.5 in | 10.94 in | Chassis Mount | 180 VAC 254 VDC | 264 VAC 370 VDC | 3000 V | |
MEAN WELL USA Inc. | 55.6 A | 88 % | 27 V | 1501 W | Adjustable Output Remote On/Off Remote Sense | Enclosed | ITE (Commercial) | 1 | 70 °C | -20 °C | 63.5 mm | 278 mm | 177.8 mm | 7 " | 2.5 in | 10.94 in | Chassis Mount | 180 VAC 254 VDC | 264 VAC 370 VDC | 3000 V | |
MEAN WELL USA Inc. | 300 A | 81 % | 5 V | 1500 W | Adjustable Output Remote On/Off Remote Sense | Enclosed | ITE (Commercial) | 1 | 70 °C | -20 °C | 63.5 mm | 278 mm | 177.8 mm | 7 " | 2.5 in | 10.94 in | Chassis Mount | 180 VAC 254 VDC | 264 VAC 370 VDC | 3000 V |
