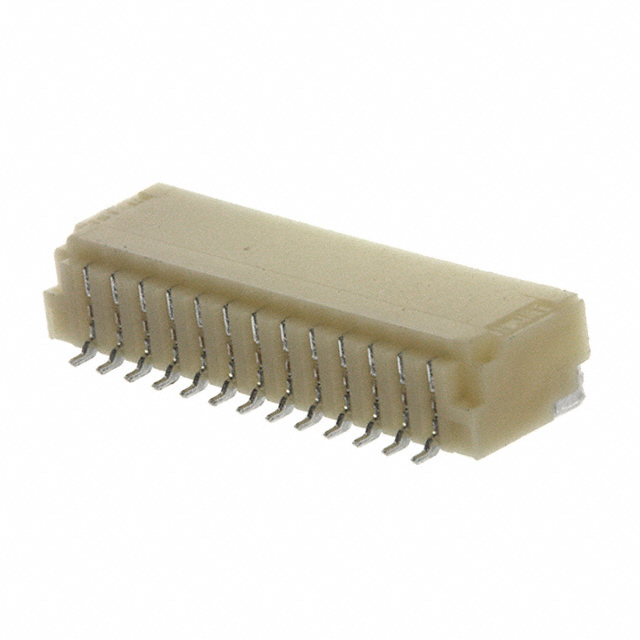

SM13B-SR Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER SMD R/A 13POS 1MM
| Part | Contact Shape | Contact Finish - Post | Number of Positions Loaded | Fastening Type | Insulation Material | Termination | Insulation Color | Connector Type | Material Flammability Rating | Contact Type | Contact Material | Voltage Rating | Number of Rows | Pitch - Mating | Pitch - Mating | Style | Mounting Type | Insulation Height | Insulation Height | Operating Temperature [Max] | Operating Temperature [Min] | Shrouding | Features | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Square | Tin | All | Push-Pull | Nylon Polyamide (PA) | Solder | Natural | Header | UL94 V-0 | Male Pin | Copper Alloy | 50 V | 1 | 1 mm | 0.039 in | Board to Cable/Wire | Right Angle Surface Mount | 0.114 in | 2.9 mm | 85 °C | -25 °C | Shrouded - 4 Wall | Solder Retention | 13 |
