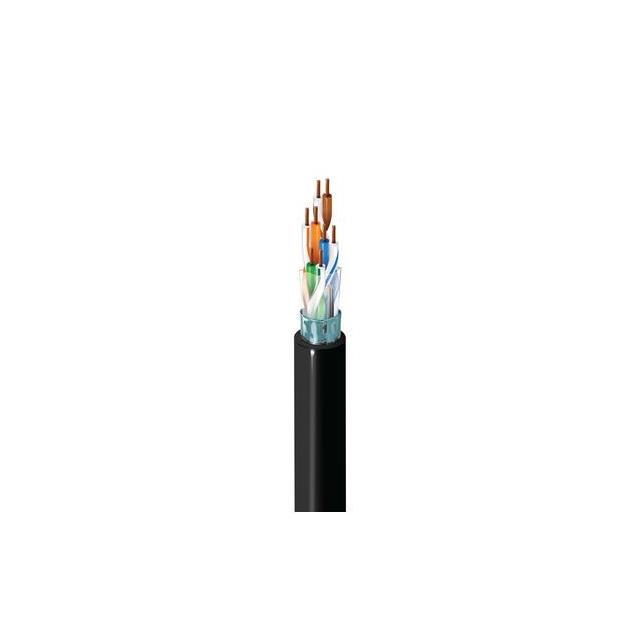

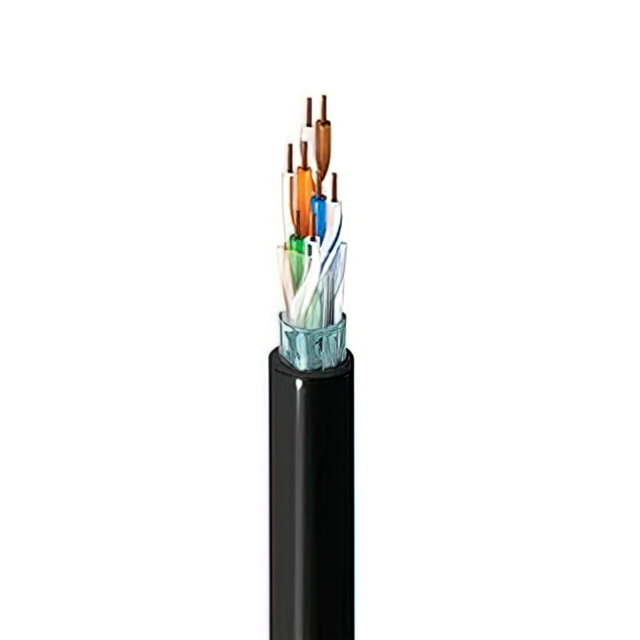

1212F Series
Manufacturer: Belden Inc.
Beta
⌘K
CAT5E+ 4PR F/UTP CMR RIB
| Part | Shield Coverage | Shield Material | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Ratings | Length | Length | Shield Type | Usage | Cable Type | Conductor Strand | Features | Number of Conductors | Voltage | Wire Gauge | Jacket Color | Conductor Insulation | Conductor Insulation | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum Polyester | Copper Bare | Poly-Vinyl Chloride (PVC) Riser | 6.6 mm | 0.26 in | UL Style CMR | 304.8 m | 1000 ft | Foil | Network | Multi-Pair Cat5e | Solid | Drain Wire | 8 | 300 VDC | 24 AWG | Yellow | Polyolefin | PO | -25 °C | 75 ░C |
 Belden Inc. | 100 % | Aluminum Polyester | Copper Bare | Poly-Vinyl Chloride (PVC) Riser | 6.6 mm | 0.26 in | UL Style CMR | 304.8 m | 1000 ft | Foil | Network | Multi-Pair Cat5e | Solid | Drain Wire | 8 | 300 VDC | 24 AWG | Red | Polyolefin | PO | -25 °C | 75 ░C |
 Belden Inc. | 100 % | Aluminum Polyester | Copper Bare | Poly-Vinyl Chloride (PVC) Riser | 6.6 mm | 0.26 in | UL Style CMR | 152.4 m | 500 ft | Foil | Network | Multi-Pair Cat5e | Solid | Drain Wire | 8 | 300 VDC | 24 AWG | White | Polyolefin | PO | -25 °C | 75 ░C |
Belden Inc. | 100 % | Aluminum Polyester | Copper Bare | Poly-Vinyl Chloride (PVC) Riser | 6.6 mm | 0.26 in | UL Style CMR | 152.4 m | 500 ft | Foil | Network | Multi-Pair Cat5e | Solid | Drain Wire | 8 | 300 VDC | 24 AWG | Blue | Polyolefin | PO | -25 °C | 75 ░C |
Belden Inc. | 100 % | Aluminum Polyester | Copper Bare | Poly-Vinyl Chloride (PVC) Riser | 6.6 mm | 0.26 in | UL Style CMR | 304.8 m | 1000 ft | Foil | Network | Multi-Pair Cat5e | Solid | Drain Wire | 8 | 300 VDC | 24 AWG | Blue | Polyolefin | PO | -25 °C | 75 ░C |
Belden Inc. | 100 % | Aluminum Polyester | Copper Bare | Poly-Vinyl Chloride (PVC) Riser | 6.6 mm | 0.26 in | UL Style CMR | 304.8 m | 1000 ft | Foil | Network | Multi-Pair Cat5e | Solid | Drain Wire | 8 | 300 VDC | 24 AWG | White | Polyolefin | PO | -25 °C | 75 ░C |
Belden Inc. | 100 % | Aluminum Polyester | Copper Bare | Poly-Vinyl Chloride (PVC) Riser | 6.6 mm | 0.26 in | UL Style CMR | 304.8 m | 1000 ft | Foil | Network | Multi-Pair Cat5e | Solid | Drain Wire | 8 | 300 VDC | 24 AWG | White | Polyolefin | PO | -25 °C | 75 ░C |
 Belden Inc. | 100 % | Aluminum Polyester | Copper Bare | Poly-Vinyl Chloride (PVC) Riser | 6.6 mm | 0.26 in | UL Style CMR | 304.8 m | 1000 ft | Foil | Network | Multi-Pair Cat5e | Solid | Drain Wire | 8 | 300 VDC | 24 AWG | Red | Polyolefin | PO | -25 °C | 75 ░C |
Belden Inc. | 100 % | Aluminum Polyester | Copper Bare | Poly-Vinyl Chloride (PVC) Riser | 6.6 mm | 0.26 in | UL Style CMR | 304.8 m | 1000 ft | Foil | Network | Multi-Pair Cat5e | Solid | Drain Wire | 8 | 300 VDC | 24 AWG | Black | Polyolefin | PO | -25 °C | 75 ░C |
