845 Series
Manufacturer: EDAC Inc.
Beta
⌘K

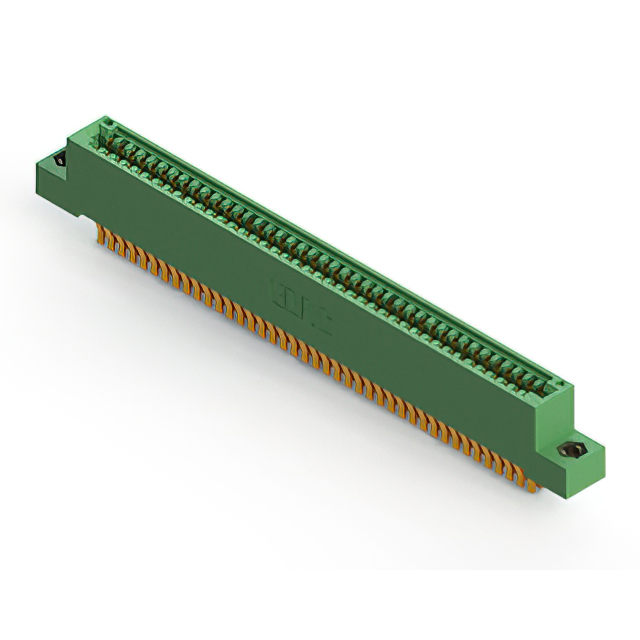

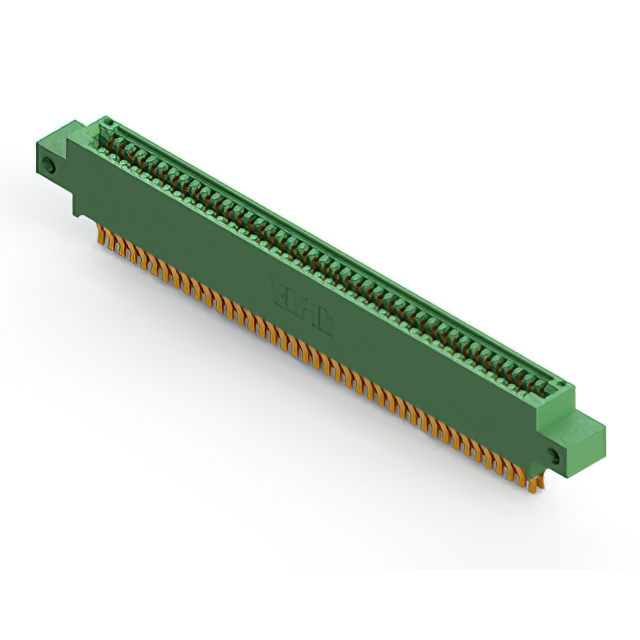

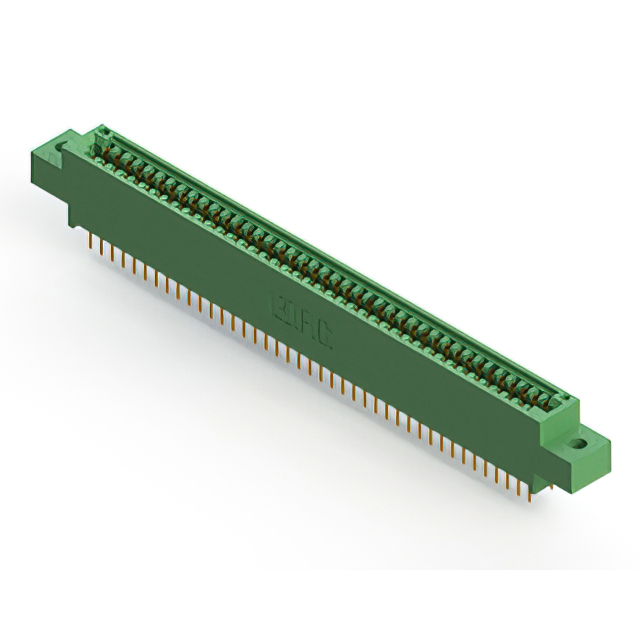

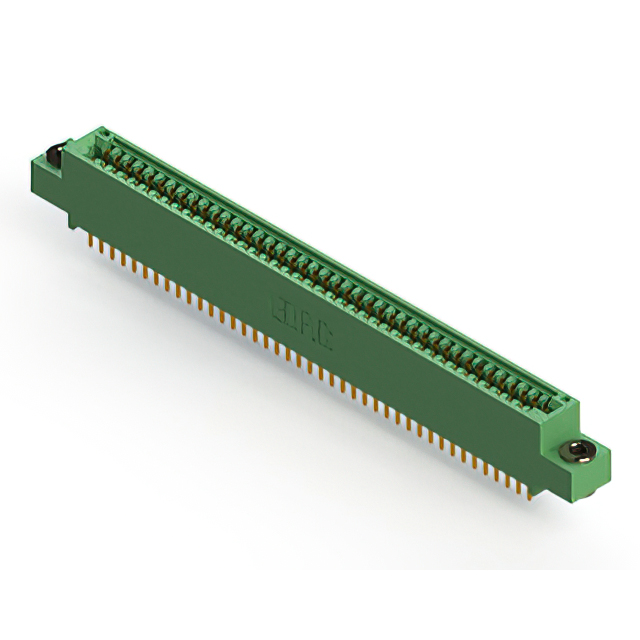

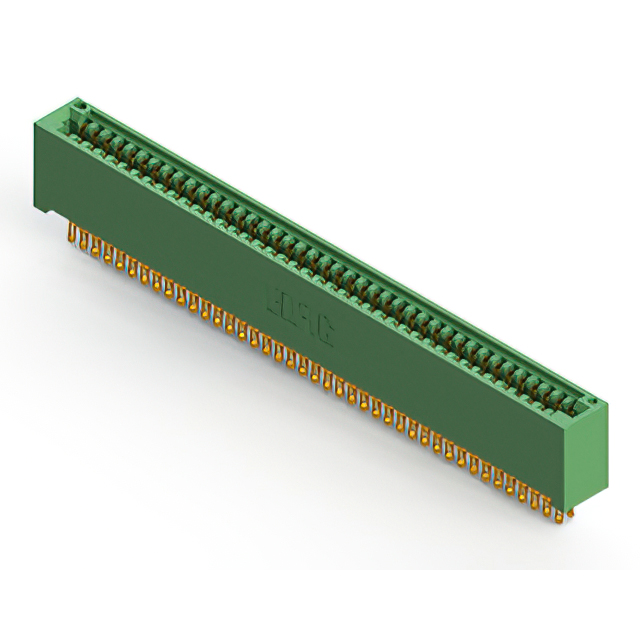

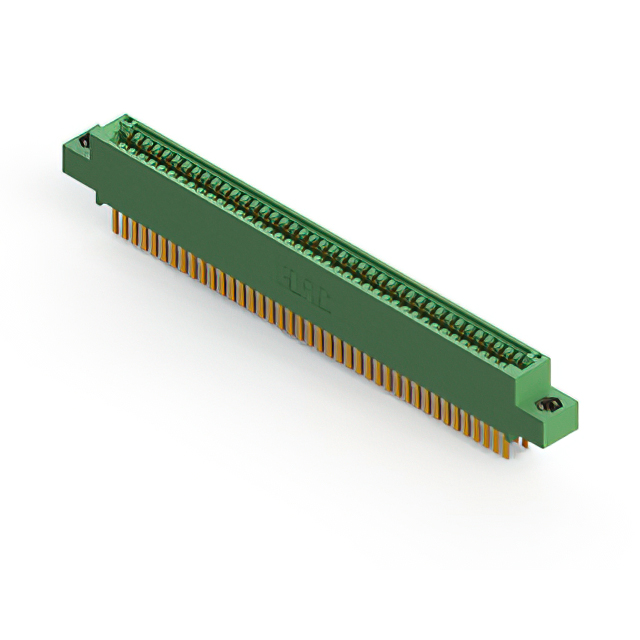

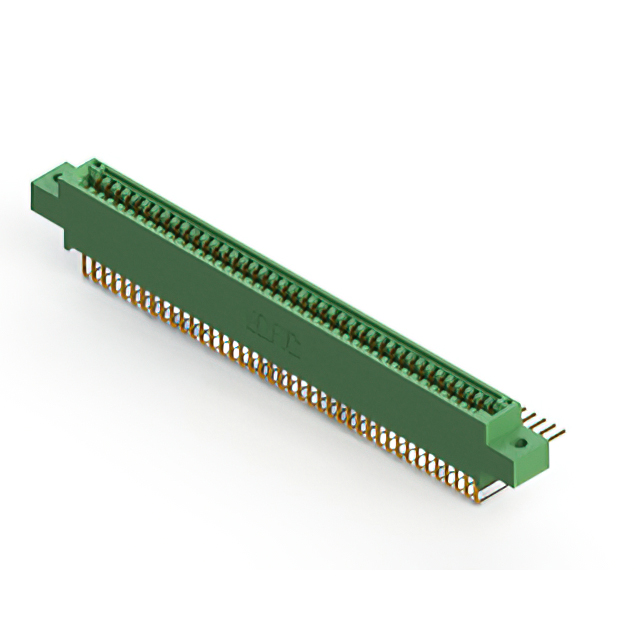

STANDARD CARD EDGE CONNECTORS .100" (2.54MM) PITCH CARD EDGE CONNECTOR

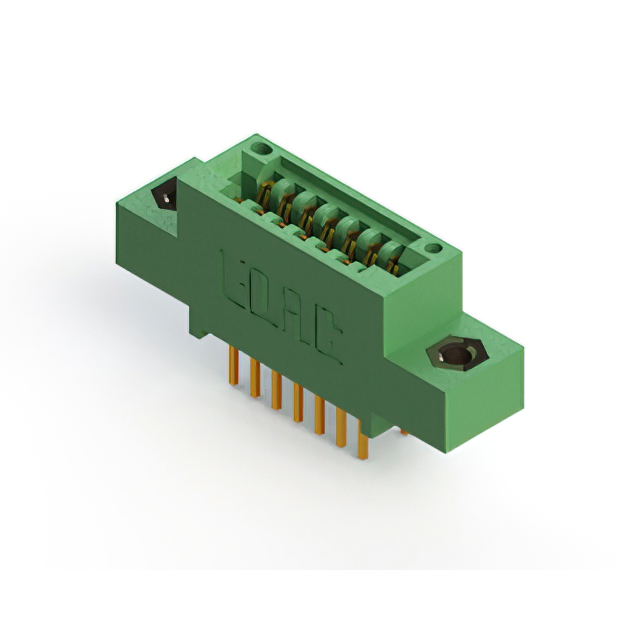

| Part | Termination | Number of Positions/Bay/Row [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Gender | Contact Material | Card Thickness [Max] | Card Thickness [Min] | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Read Out | Number of Rows | Card Type | Number of Positions | Color | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Contact Finish | Pitch | Pitch | Mounting Type | Number of Rows [custom] | Number of Positions/Bay/Row | Termination Rows | Material - Insulation | Termination Rows [custom] | Number of Positions | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Solder | 51 | 125 °C | -40 C | Female | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Floating Bobbin Top Mount Opening | 0.116 " | 2.95 mm | Single | 1 | Non Specified - Single Edge | 51 | Green | 0.25 Ám | 10 Áin | Cantilever | Gold | 0.1 " | 2.54 mm | Through Hole | |||||||
 EDAC Inc. | Solder | 125 °C | -40 C | Female | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Floating Bobbin Top Mount Opening | 0.116 " | 2.95 mm | Dual | Non Specified - Dual Edge | 56 | Green | 0.25 Ám | 10 Áin | Cantilever | Gold | 0.1 " | 2.54 mm | Through Hole | 2 | 28 | |||||||
 EDAC Inc. | Solder | 125 °C | -40 C | Female | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | M3 Threaded Insert Top Mount Opening | Single | 1 | Non Specified - Single Edge | 25 | Green | 0.25 Ám | 10 Áin | Cantilever | Gold | 0.1 " | 2.54 mm | Through Hole | 25 | 1 | Diallyl Phthalate (DAP) | |||||||
 EDAC Inc. | Solder | 125 °C | -40 C | Female | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | Single | 1 | Non Specified - Single Edge | 16 | Green | 0.25 Ám | 10 Áin | Cantilever | Gold | 0.1 " | 2.54 mm | Through Hole | 16 | |||||||
 EDAC Inc. | Wire Wrap | 125 °C | -40 C | Female | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | M3 Threaded Insert Top Mount Opening | Single | 1 | Non Specified - Single Edge | 24 | Green | 0.25 Ám | 10 Áin | Cantilever | Gold | 0.1 " | 2.54 mm | Through Hole | 24 | |||||||||
 EDAC Inc. | Solder | 125 °C | -40 C | Female | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | M3 Threaded Insert Top Mount Opening | Single | 1 | Non Specified - Single Edge | 43 | Green | 0.25 Ám | 10 Áin | Cantilever | Gold | 0.1 " | 2.54 mm | Right Angle Through Hole | 43 | 1 | Diallyl Phthalate (DAP) | |||||||
 EDAC Inc. | Solder | 125 °C | -40 C | Female | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | M3 Threaded Insert Top Mount Opening | Dual | Non Specified - Dual Edge | 14 | Green | 0.25 Ám | 10 Áin | Cantilever | Gold | 0.1 " | 2.54 mm | Through Hole | 2 | 7 | Diallyl Phthalate (DAP) | 2 | |||||||
 EDAC Inc. | Wire Wrap | 125 °C | -40 C | Female | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | Single | 1 | Non Specified - Single Edge | Green | 0.25 Ám | 10 Áin | Cantilever | Gold | 0.1 " | 2.54 mm | Through Hole | 47 | 47 | |||||||
 EDAC Inc. | Solder | 125 °C | -40 C | Female | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 4-40 Threaded Insert Top Mount Opening | Single | 1 | Non Specified - Single Edge | 11 | Green | 0.25 Ám | 10 Áin | Cantilever | Gold | 0.1 " | 2.54 mm | Through Hole | 11 | 1 | Diallyl Phthalate (DAP) | |||||||
 EDAC Inc. | Solder | 125 °C | -40 C | Female | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Non Specified - Dual Edge | 78 | Green | 0.25 Ám | 10 Áin | Cantilever | Gold | 0.1 " | 2.54 mm | Board Edge Straddle Mount | 2 | 39 | Card Extender |
