165167 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

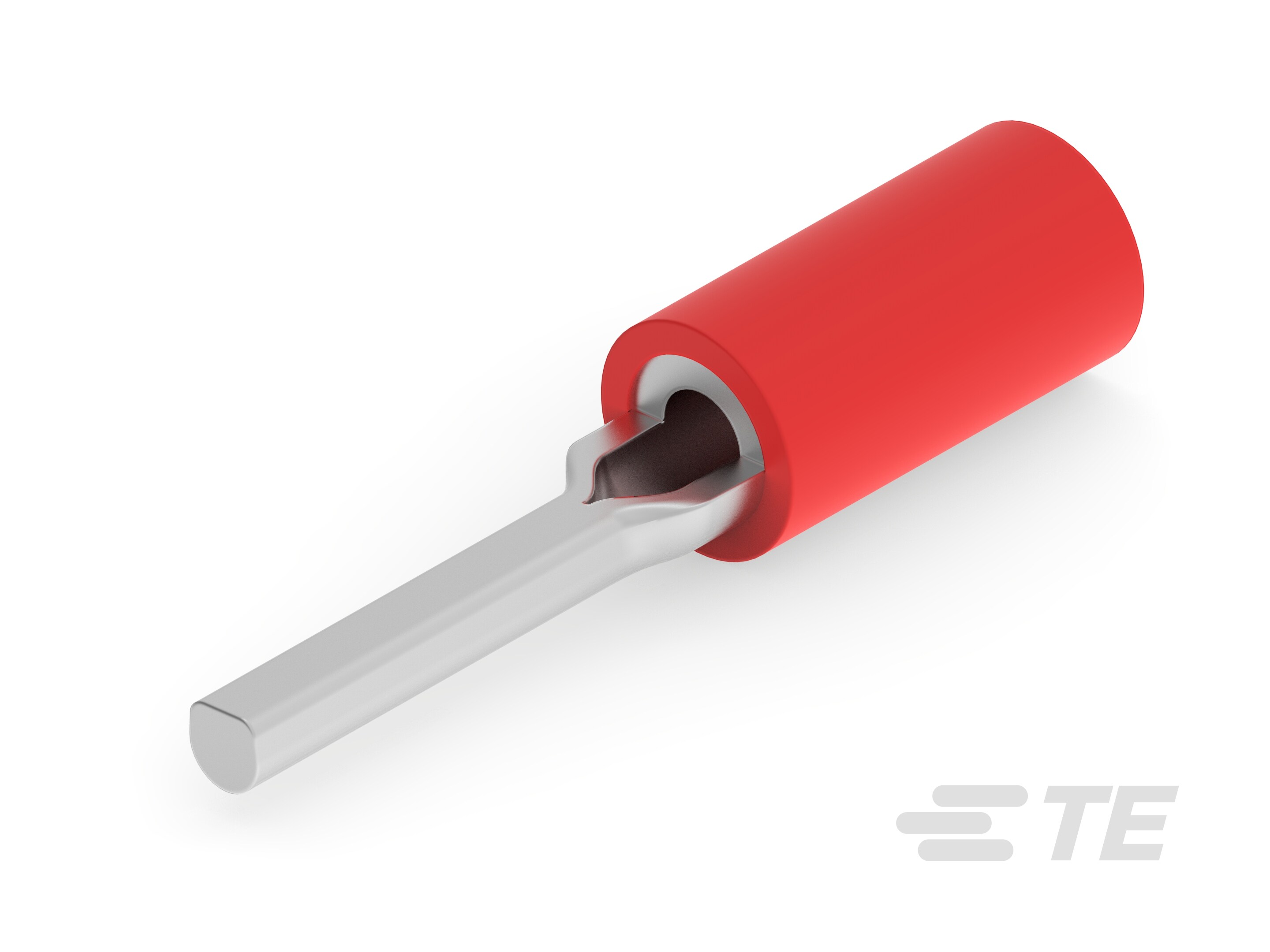

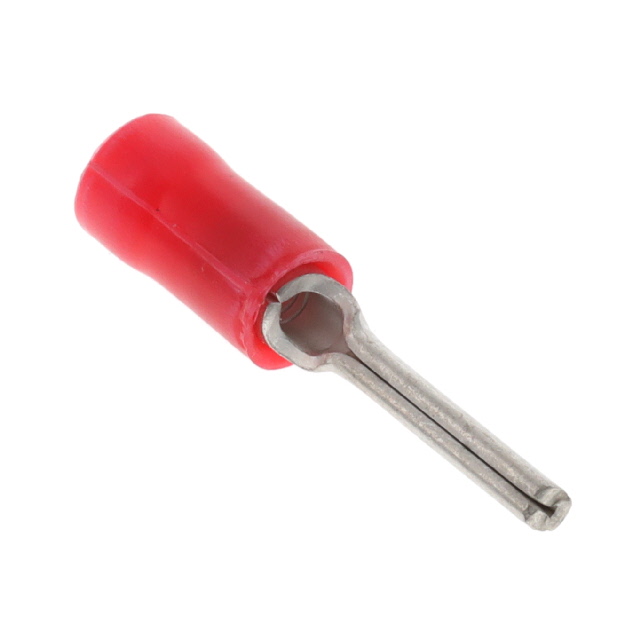

PIN TERMINAL, PLASTI-GRIP SERIES, CRIMP, 22 AWG, 16 AWG, 1.42 MM², 1.8 MM
| Part | Contact Finish | Contact Material | Material - Insulation | Length - Overall [x] | Length - Overall [x] | Features | Pin Diameter [diameter] | Pin Diameter [diameter] | Insulation | Length - Pin | Length - Pin | Termination | Color | Insulation Diameter [diameter] | Insulation Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Tin | Copper | Poly-Vinyl Chloride (PVC) | 23.8 mm | 0.937 in | Serrated Termination | 0.071 in | 1.8 mm | Insulated | 0.39 in | 9.91 mm | Crimp | Red | 3.61 mm | 0.142 in |
