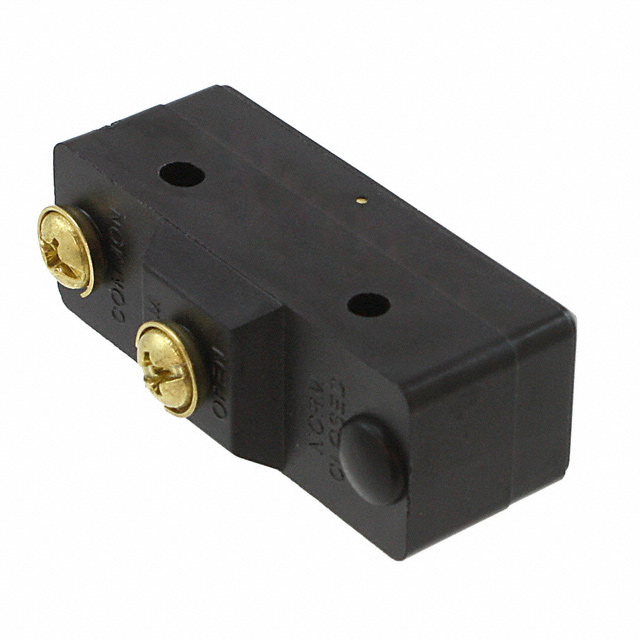

YZ-2RA Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
BASIC / SNAP ACTION SWITCHES SPNO 15A 250VAC PIN PLGR BASIC SW
| Part | Operating Force [Max] | Operating Force [Min] | Mounting Type | Pretravel | Pretravel | Operating Temperature [Min] | Operating Temperature [Max] | Switch Function | Differential Travel | Differential Travel | Voltage Rating - DC | Overtravel [custom] | Overtravel [custom] | Mechanical Life | Actuator Type | Release Force | Current Rating (Amps) | Circuit | Operating Position | Operating Position | Termination Style | Voltage Rating - AC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | 368 gf | 255 gf | Chassis Mount | 0.015 " | 0.4 mm | -55 C | 85 °C | Off-Mom | 0.05 mm | 0.002 in | 125 VDC | 0.005 " | 0.13 mm | 20000000 Cycles | Round (Pin Plunger) | 113 gf | 15 A 500 mA | SPST-NO | 0.625 in | 15.9 mm | Screw Terminal | 125 V |
