1658525 Series

Catalog

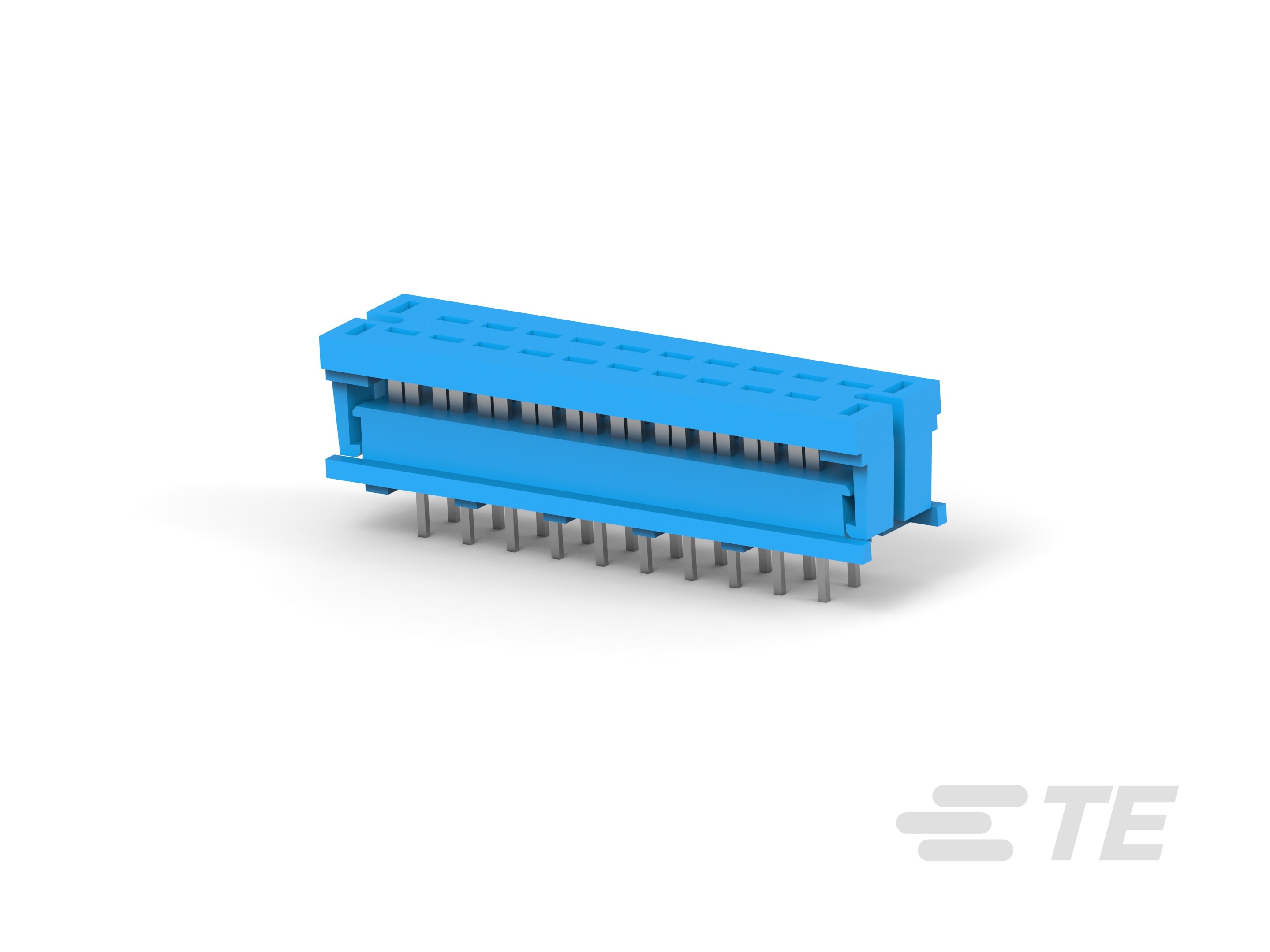

622-2053LF, PCB IDC, LEAD FREE

Part	Board-Side Pitch	Board-Side Pitch	Number of Positions	Color	Number of Rows	Cable Termination	Wire Gauge [Min]	Wire Gauge [Max]	Wire Gauge	Cable Pitch	Cable Pitch	Features	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Contact Finish	Number of Positions Loaded	Row Spacing [x]	Row Spacing	Mounting Type

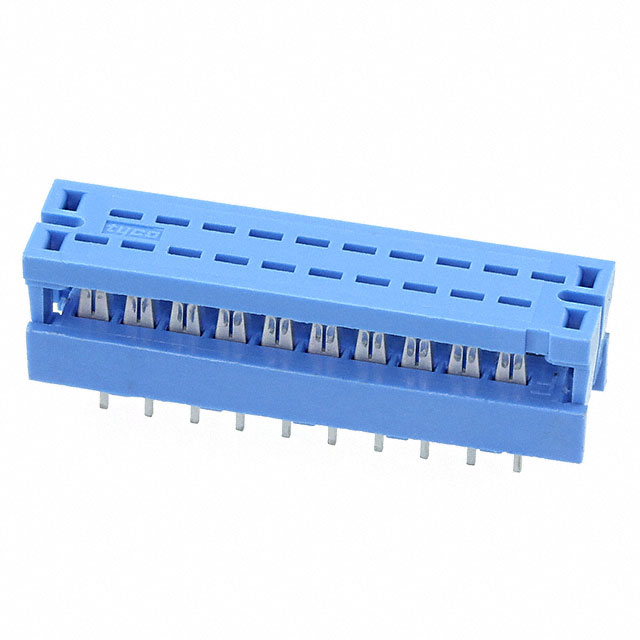

TE Connectivity Raychem Cable Protection 1658525-9	0.1 in	2.54 mm	20	Blue	2	IDC	26 AWG	28 AWG	Solid Stranded	1.27 mm	0.05 in	Feed Through	2.54 µm	100 µin	DIP Header Ribbon Cable	Tin	All	0.1 in	2.54 mm	Through Hole

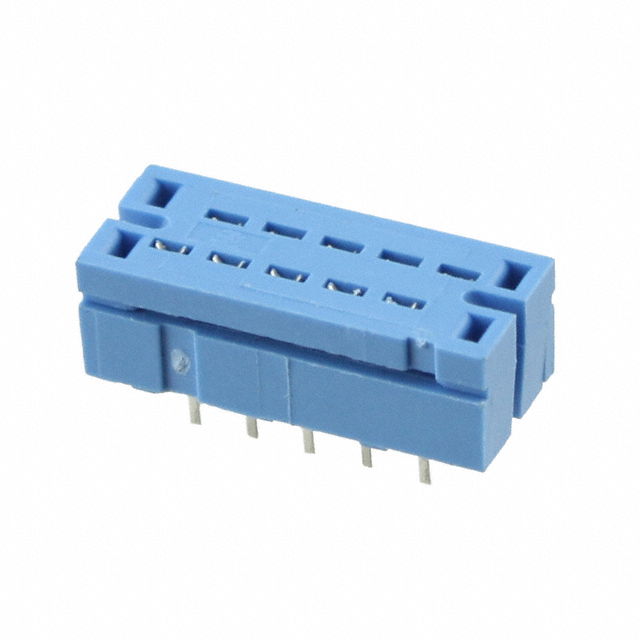

TE Connectivity Raychem Cable Protection 1658525-6	0.1 in	2.54 mm	10	Blue	2	IDC	26 AWG	28 AWG	Solid Stranded	1.27 mm	0.05 in	Feed Through	2.54 µm	100 µin	DIP Header Ribbon Cable	Tin	All	0.1 in	2.54 mm	Through Hole
TE Connectivity Raychem Cable Protection 1-1658525-2	0.1 in	2.54 mm	36	Blue	2	IDC	26 AWG	28 AWG	Solid Stranded	1.27 mm	0.05 in	Feed Through	2.54 µm	100 µin	DIP Header Ribbon Cable	Tin	All	0.1 in	2.54 mm	Through Hole
