LCAX Series

Terminals Copp Comp Lug 1 Hole 3/0 AWG

Manufacturer: Panduit Corp

Catalog

Terminals Copp Comp Lug 1 Hole 3/0 AWG

Catalog

Terminals Copp Comp Lug 1 Hole 3/0 AWG

...

Part	Tab Thickness	Tab Thickness	Termination	Terminal Type	Terminal Style	Wire Gauge	Contact Finish	Mounting Type	Color	Width - Outer Edges [y]	Width - Outer Edges [y]	Insulation	Stud/Tab Size	Diameter - Barrel ID [diameter]	Diameter - Barrel ID [diameter]	Diameter - Barrel OD [diameter]	Diameter - Barrel OD [diameter]	Diameter - Ring ID [diameter]	Diameter - Ring ID [diameter]	Contact Material	Length - Overall [x]	Length - Overall [x]	Stud/Tab Size	Diameter - Barrel OD [diameter]	Wire Gauge	Diameter - Ring ID [diameter]
Panduit Corp LCAX650-38H-6	7.62 mm	0.3 in	Barrel Crimp	Rectangular Tongue	Single Stud Hole	650 MCM (kcmil)	Electro-Tin	45° Angle Free Hanging (In-Line)	Black	1.95 in	49.53 mm	Non-Insulated	3/8 Stud	26.67 mm	1.05 in	1.35 in	34.29 mm	10.41 mm	0.41 "	Copper

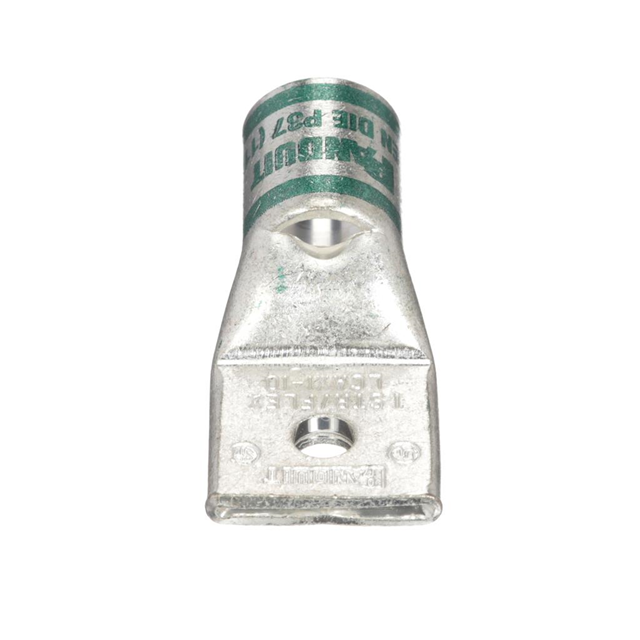

Panduit Corp LCAX1-10-X	3.05 mm	0.12 in	Barrel Crimp	Rectangular Tongue	Single Stud Hole	1 AWG	Electro-Tin	Free Hanging (In-Line)	Green	0.76 in	19.3 mm	Non-Insulated								Copper	1.5 in	38.1 mm	10 Stud
Panduit Corp LCAX650-58H-6	7.62 mm	0.3 in	Barrel Crimp	Rectangular Tongue	Single Stud Hole	650 MCM (kcmil)	Electro-Tin	45° Angle Free Hanging (In-Line)	Black	1.95 in	49.53 mm	Non-Insulated		26.67 mm	1.05 in	1.35 in	34.29 mm			Copper			0.625 Stud
Panduit Corp LCAX3/0-38-T	3.56 mm	0.14 "	Barrel Crimp	Rectangular Tongue	Single Stud Hole		Electro-Tin	Free Hanging (In-Line)		1.06 in	26.92 mm	Non-Insulated	3/8 Stud	14.48 mm	0.57 "	0.71 in	18.03 mm	10.41 mm	0.41 "	Copper	2.17 in	55.12 mm
Panduit Corp LCAX6-10F-L	2.29 mm	0.09 in	Barrel Crimp	Rectangular Tongue	Single Stud Hole	6 AWG	Electro-Tin	Free Hanging (In-Line) Right Angle	Blue	0.45 in	11.43 mm	Non-Insulated		5.59 mm	0.22 in		0.31 in	5.08 mm	0.2 in	Copper			10 Stud	7.87 mm
Panduit Corp LCAX2/0-38F-X	3.3 mm	0.13 in	Barrel Crimp	Rectangular Tongue	Single Stud Hole		Electro-Tin	Free Hanging (In-Line) Right Angle	Black	0.96 in	24.38 mm	Non-Insulated	3/8 Stud	12.95 mm	0.51 in	0.64 "	16.26 mm	10.41 mm	0.41 "	Copper

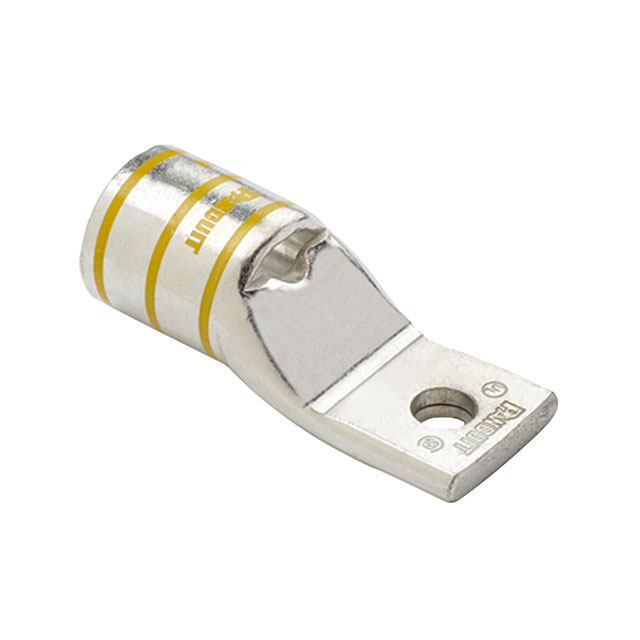

Panduit Corp LCAXN750-12-3	8.38 mm	0.33 in	Barrel Crimp	Rectangular Tongue	Single Stud Hole	750 kcmil	Electro-Tin	Free Hanging (In-Line)	Yellow	1.5 in	38.1 mm	Non-Insulated	1/2 Stud	29.72 mm	1.17 "	1.5 in	38.1 mm	0.53 in		Copper	3.94 in	100.08 mm			750 MCM	13.46 mm

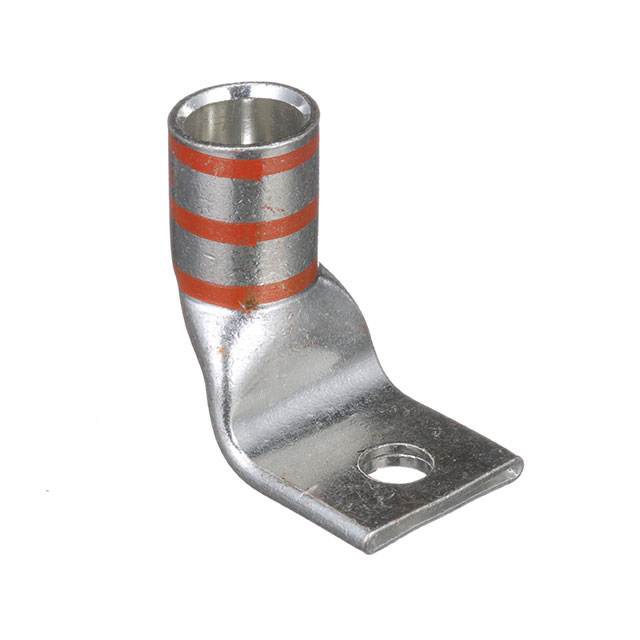

Panduit Corp LCAX3/0-56F-X	3.56 mm	0.14 "	Barrel Crimp	Rectangular Tongue	Single Stud Hole		Electro-Tin	Free Hanging (In-Line) Right Angle		1.06 in	26.92 mm	Non-Insulated		14.48 mm	0.57 "	0.71 in	18.03 mm	0.34 in		Copper			0.3125 Stud			8.64 mm

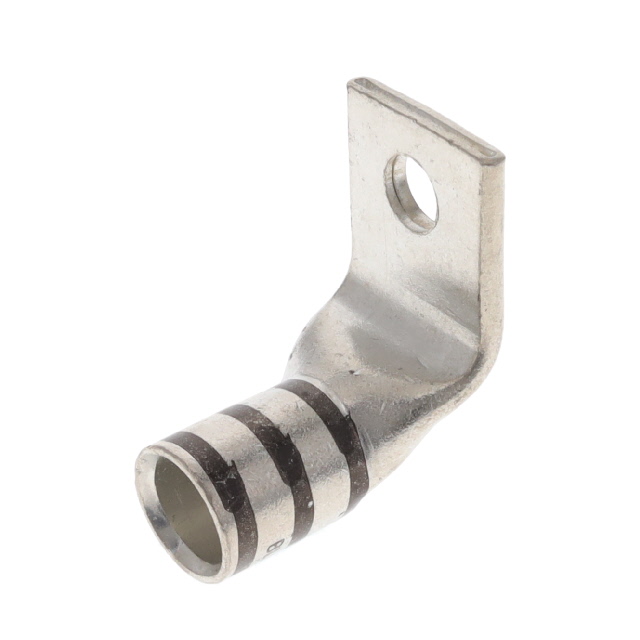

Panduit Corp LCAX2/0-56F-X	3.3 mm	0.13 in	Barrel Crimp	Rectangular Tongue	Single Stud Hole		Electro-Tin	Free Hanging (In-Line) Right Angle	Black	0.96 in	24.38 mm	Non-Insulated		12.95 mm	0.51 in	0.64 "	16.26 mm	0.34 in		Copper			0.3125 Stud			8.64 mm
Panduit Corp LCAX6-38-L	1.52 mm	0.06 in	Barrel Crimp	Rectangular Tongue	Single Stud Hole	6 AWG	Electro-Tin	Free Hanging (In-Line)	Blue	0.62 in	15.75 mm	Non-Insulated	3/8 Stud	5.59 mm	0.22 in		0.31 in	10.41 mm	0.41 "	Copper	1.5 in	38.1 mm		7.87 mm
