TPS92613-Q1 Series

Automotive single-channel LED driver with 600mA output, open and short detection

Catalog

Automotive single-channel LED driver with 600mA output, open and short detection

Part	Voltage - Supply (Min) [Min]	Mounting Type	Type	Current - Output / Channel	Dimming	Grade	Voltage - Supply (Max) [Max]	Number of Outputs	Package / Case	Qualification	Internal Switch(s)	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Voltage - Output [Max]	Voltage - Output [Min]	Supplier Device Package	Outputs and Type	Outputs and Type	Voltage - Input [Min]	Voltage - Input [Max]	Utilized IC / Part	Supplied Contents
Texas Instruments TPS92613QNDRRQ1	4.5 V	Surface Mount	Linear	600 mA	PWM	Automotive	40 V	1	D2PAK (7 Leads + Tab) TO-263-8 TO-263CA	AEC-Q100		-40 °C	125 °C	General Purpose Lighting	40 V	0 VDC	TO-263-7

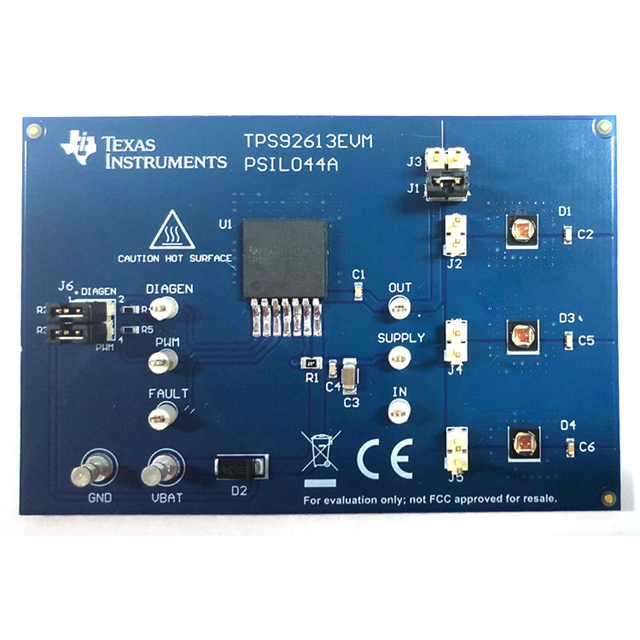

Texas Instruments TPS92613EVM				210 mA														Non-Isolated	1	9 VDC	16 V	TPS92613-Q1	Board(s)

Catalog

Automotive single-channel LED driver with 600mA output, open and short detection

Key Features

• AEC-Q100-qualified for automotive applications:Temperature grade 1: –40°C to +125°C, TAFunctional safety capableDocumentation available to aid functional safety system designWide input voltage range: 4.5 V to 40 VLow quiescent and low fault-mode current: typical 200 µASingle high-precision current regulation:±4.6% Accuracy over full junction temperature rangeConstant current adjustable by external sense resistorUp to 600 mA maximum currentBrightness control by input PWM duty cycleHeat sharing with external resistorLow dropout voltage (sense-resistor voltage drop included):Maximum dropout: 150 mV at 10 mAMaximum dropout: 400 mV at 70 mAMaximum dropout: 700 mV at 150 mAMaximum dropout: 1.3 V at 300 mADiagnostics and protection:LED open-circuit and short-circuit detection with auto-recoveryDiagnostic enable with adjustable threshold for low-dropout operationFault bus up to 15 devices, configurable as either one-fails–all-fail or only-failed-channel-off (N-1)Thermal shutdownOperating junction temperature range: –40°C to +150°CAEC-Q100-qualified for automotive applications:Temperature grade 1: –40°C to +125°C, TAFunctional safety capableDocumentation available to aid functional safety system designWide input voltage range: 4.5 V to 40 VLow quiescent and low fault-mode current: typical 200 µASingle high-precision current regulation:±4.6% Accuracy over full junction temperature rangeConstant current adjustable by external sense resistorUp to 600 mA maximum currentBrightness control by input PWM duty cycleHeat sharing with external resistorLow dropout voltage (sense-resistor voltage drop included):Maximum dropout: 150 mV at 10 mAMaximum dropout: 400 mV at 70 mAMaximum dropout: 700 mV at 150 mAMaximum dropout: 1.3 V at 300 mADiagnostics and protection:LED open-circuit and short-circuit detection with auto-recoveryDiagnostic enable with adjustable threshold for low-dropout operationFault bus up to 15 devices, configurable as either one-fails–all-fail or only-failed-channel-off (N-1)Thermal shutdownOperating junction temperature range: –40°C to +150°C

Description

With LEDs being widely used in automotive applications, simple LED drivers are more and more popular. Comparing to discrete solutions, a low-cost monolithic solution lowers system-level component count and significantly improves current accuracy and reliability. The TPS92613-Q1 device is a single-channel, high-side LED driver operating from an automotive car battery. It is a simple, yet elegant, solution to deliver constant current for a single LED string with full LED diagnostics. The one-fails–all-fail feature is able to work together with other LED drivers, such as the TPS9261x-Q1, TPS9263x-Q1, and TPS92830-Q1 devices, to address different requirements. With LEDs being widely used in automotive applications, simple LED drivers are more and more popular. Comparing to discrete solutions, a low-cost monolithic solution lowers system-level component count and significantly improves current accuracy and reliability. The TPS92613-Q1 device is a single-channel, high-side LED driver operating from an automotive car battery. It is a simple, yet elegant, solution to deliver constant current for a single LED string with full LED diagnostics. The one-fails–all-fail feature is able to work together with other LED drivers, such as the TPS9261x-Q1, TPS9263x-Q1, and TPS92830-Q1 devices, to address different requirements.
