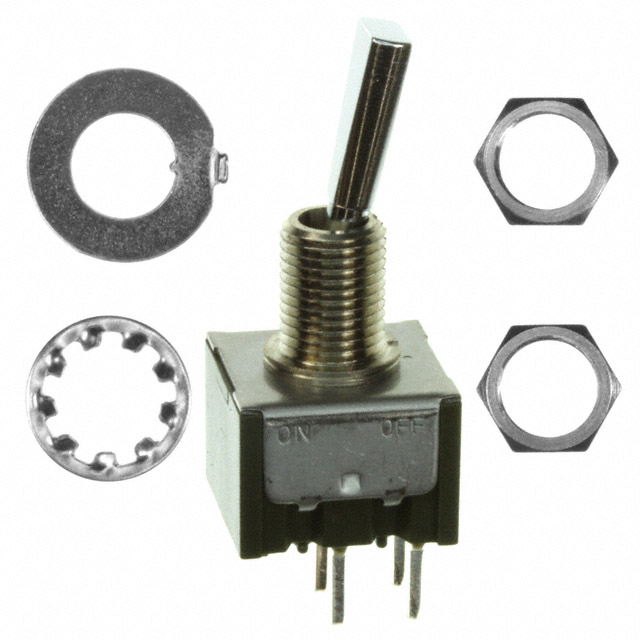

M2021ES Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH TOGGLE DPST 6A 125V
| Part | Electrical Life | Actuator Material | Panel Cutout Dimensions [diameter] | Circuit | Termination Style | Bushing Thread | Current Rating (Amps) | Features | Illumination | Voltage Rating - DC | Actuator Type | Mounting Type | Voltage Rating - AC | Actuator Length [x] | Switch Function | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 25000 Steps | Brass Chrome Plated | 6.5 mm | DPST | PC Pin | 1/4-40 | 4 A 6 A | Epoxy Sealed Terminals | Non-Illuminated | 30 V | Flatted | Panel Mount | 125 V | 11.4 mm | On-Off | 85 °C | -30 ░C |
