7921A Series
Manufacturer: Belden Inc.
Beta
⌘K

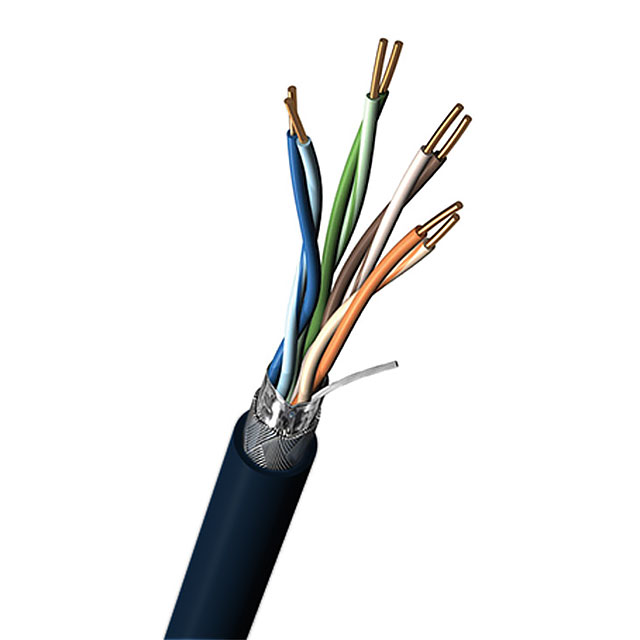

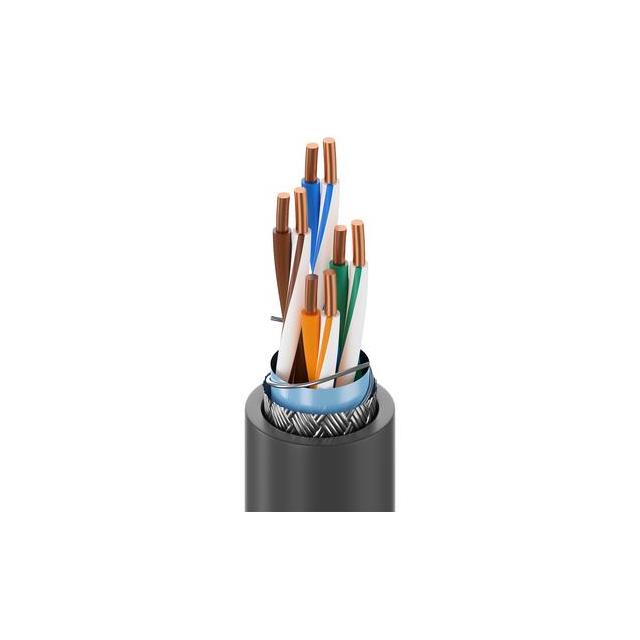

CABLE CAT5E 8COND 24AWG
| Part | Shield Coverage | Shield Material | Jacket Color | Shield Type | Jacket (Insulation) Material | Conductor Insulation | Conductor Insulation | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Strand | Length | Length | Wire Gauge | Conductor Material | Ratings | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Features | Voltage | Cable Type | Number of Conductors | Usage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 70 % 100 % | Aluminum Copper Tinned | Teal | Braid Foil | Poly-Vinyl Chloride (PVC) | Polyolefin | PO | -40 C | 75 ░C | 0.33 in | 8.38 mm | Solid | 304.8 m | 1000 ft | 24 AWG | Copper Bare | UL Style CMR | 0.03 in | 0.762 mm | Drain Wire Oil Resistant UV Resistant | 300 VDC | Multi-Pair Cat5e | 8 | Industrial Network |
Belden Inc. | 70 % 100 % | Aluminum Copper Tinned | Red | Braid Foil | Poly-Vinyl Chloride (PVC) | Polyolefin | PO | -40 C | 75 ░C | 0.33 in | 8.38 mm | Solid | 304.8 m | 1000 ft | 24 AWG | Copper Bare | UL Style CMR | 0.03 in | 0.762 mm | Drain Wire Oil Resistant UV Resistant | 300 VDC | Multi-Pair Cat5e | 8 | Industrial Network |
 Belden Inc. | 70 % 100 % | Aluminum Copper Tinned | Black | Braid Foil | Poly-Vinyl Chloride (PVC) | Polyolefin | PO | -40 C | 75 ░C | 0.33 in | 8.38 mm | Solid | 304.8 m | 1000 ft | 24 AWG | Copper Bare | 0.03 in | 0.762 mm | Drain Wire Oil Resistant UV Resistant | Multi-Pair Cat5e | 8 | Network |
