AW 110 Series

Catalog

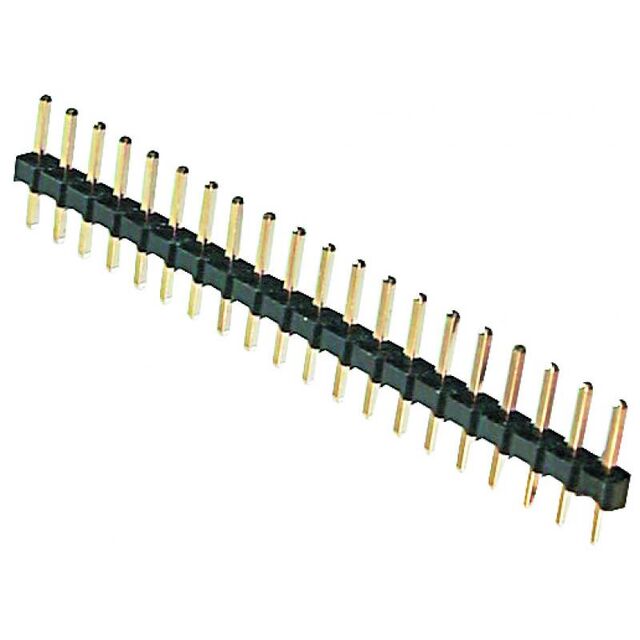

SINGLE ROW HEADER

Part	Overall Contact Length [x]	Overall Contact Length	Insulation Color	Insulation Height	Insulation Height	Contact Type	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Contact Length - Mating	Contact Length - Mating	Contact Length - Post	Contact Length - Post	Number of Positions Loaded	Contact Finish - Mating	Number of Rows	Insulation Material	Mounting Type	Termination	Contact Material	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Current Rating (Amps)	Shrouding	Material Flammability Rating	Number of Positions
Assmann WSW Components AW 110/03-T	0.362 in	9.2 mm	Black	0.059 in	1.5 mm	Male Pin	Header Cuttable	0.025 µm	1 µin	0.1 "	2.54 mm	4.7 mm	0.185 in	0.118 in	3 mm	All	Gold	1	Polybutylene Terephthalate (PBT) Glass Filled	Through Hole	Solder	Brass	Push-Pull	-40 C	105 ░C	Square	3 A	Unshrouded	UL94 V-0
Assmann WSW Components AW 110/16-T	0.362 in	9.2 mm	Black	0.059 in	1.5 mm	Male Pin	Header Cuttable	0.025 µm	1 µin	0.1 "	2.54 mm	4.7 mm	0.185 in	0.118 in	3 mm	All	Gold	1	Polybutylene Terephthalate (PBT) Glass Filled	Through Hole	Solder	Brass	Push-Pull	-40 C	105 ░C	Square	3 A	Unshrouded	UL94 V-0	16
Assmann WSW Components AW 110/10-T	0.362 in	9.2 mm	Black	0.059 in	1.5 mm	Male Pin	Header Cuttable	0.025 µm	1 µin	0.1 "	2.54 mm	4.7 mm	0.185 in	0.118 in	3 mm	All	Gold	1	Polybutylene Terephthalate (PBT) Glass Filled	Through Hole	Solder	Brass	Push-Pull	-40 C	105 ░C	Square	3 A	Unshrouded	UL94 V-0	10
Assmann WSW Components AW 110/12-T	0.362 in	9.2 mm	Black	0.059 in	1.5 mm	Male Pin	Header Cuttable	0.025 µm	1 µin	0.1 "	2.54 mm	4.7 mm	0.185 in	0.118 in	3 mm	All	Gold	1	Polybutylene Terephthalate (PBT) Glass Filled	Through Hole	Solder	Brass	Push-Pull	-40 C	105 ░C	Square	3 A	Unshrouded	UL94 V-0	12
Assmann WSW Components AW 110/02-T	0.362 in	9.2 mm	Black	0.059 in	1.5 mm	Male Pin	Header Cuttable	0.025 µm	1 µin	0.1 "	2.54 mm	4.7 mm	0.185 in	0.118 in	3 mm	All	Gold	1	Polybutylene Terephthalate (PBT) Glass Filled	Through Hole	Solder	Brass	Push-Pull	-40 C	105 ░C	Square	3 A	Unshrouded	UL94 V-0	2
Assmann WSW Components AW 110/37-T	0.362 in	9.2 mm	Black	0.059 in	1.5 mm	Male Pin	Header Cuttable	0.025 µm	1 µin	0.1 "	2.54 mm	4.7 mm	0.185 in	0.118 in	3 mm	All	Gold	1	Polybutylene Terephthalate (PBT) Glass Filled	Through Hole	Solder	Brass	Push-Pull	-40 C	105 ░C	Square	3 A	Unshrouded	UL94 V-0	37
Assmann WSW Components AW 110/14-T	0.362 in	9.2 mm	Black	0.059 in	1.5 mm	Male Pin	Header Cuttable	0.025 µm	1 µin	0.1 "	2.54 mm	4.7 mm	0.185 in	0.118 in	3 mm	All	Gold	1	Polybutylene Terephthalate (PBT) Glass Filled	Through Hole	Solder	Brass	Push-Pull	-40 C	105 ░C	Square	3 A	Unshrouded	UL94 V-0	14
Assmann WSW Components AW 110/32-T	0.362 in	9.2 mm	Black	0.059 in	1.5 mm	Male Pin	Header Cuttable	0.025 µm	1 µin	0.1 "	2.54 mm	4.7 mm	0.185 in	0.118 in	3 mm	All	Gold	1	Polybutylene Terephthalate (PBT) Glass Filled	Through Hole	Solder	Brass	Push-Pull	-40 C	105 ░C	Square	3 A	Unshrouded	UL94 V-0
Assmann WSW Components AW 110/09-T	0.362 in	9.2 mm	Black	0.059 in	1.5 mm	Male Pin	Header Cuttable	0.025 µm	1 µin	0.1 "	2.54 mm	4.7 mm	0.185 in	0.118 in	3 mm	All	Gold	1	Polybutylene Terephthalate (PBT) Glass Filled	Through Hole	Solder	Brass	Push-Pull	-40 C	105 ░C	Square	3 A	Unshrouded	UL94 V-0	9
Assmann WSW Components AW 110/15-T	0.362 in	9.2 mm	Black	0.059 in	1.5 mm	Male Pin	Header Cuttable	0.025 µm	1 µin	0.1 "	2.54 mm	4.7 mm	0.185 in	0.118 in	3 mm	All	Gold	1	Polybutylene Terephthalate (PBT) Glass Filled	Through Hole	Solder	Brass	Push-Pull	-40 C	105 ░C	Square	3 A	Unshrouded	UL94 V-0	15
