PTDA Series

Catalog

FIXED TERMINAL BLOCKS PTDA 1.5/ 3-3.5 3P 3.5MM FIXED

Part	Housing Material	Wire Termination	Number of Levels	Mounting Type	Mating Orientation	Mating Orientation	Current	Pitch	Pitch	Color	Voltage	Positions Per Level	Wire Gauge [Max]	Wire Gauge [Min]	Number of Positions	Plug Wire Entry	Type	Termination Style	Insulation Height	Insulation Height	Material Flammability Rating	Wire Strip Length	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Positions Per Level [custom]	Positions Per Level [custom]	Voltage - IEC	Voltage - UL	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Current - UL	Current - IEC	Number of Levels [custom]	Number of Levels [custom]	Contact Mating Finish
Phoenix Contact 1724925	Polyamide (PA) Nylon	Leg Spring Push-In Spring	1	Through Hole	135 °	45 °	12 A	3.5 mm	0.138 "	Green	300 VDC	3	24 AWG	16 AWG
Phoenix Contact 1706551			1	Free Hanging (In-Line)				5 mm	0.197 in	Gray		9			9	45 °	Plug for Unshrouded Header	Screwless - Spring Cage Tension Clamp
Phoenix Contact 1725315		Leg Spring Push-In Spring	1	Through Hole	135 °	45 °	15 A	5 mm	0.197 in	Green	300 VDC	3	24 AWG	14 AWG
Phoenix Contact 1725341	Polyamide (PA) Nylon	Leg Spring Push-In Spring	1	Through Hole	135 °	45 °	15 A	5 mm	0.197 in	Green	300 VDC	5	24 AWG	14 AWG
Phoenix Contact 1725497	Polyamide (PA) Nylon			Free Hanging (In-Line)				5 mm	0.197 in	Green					2	45 °	Plug for Unshrouded Header	Screwless - Spring Cage Tension Clamp	16 mm	0.63 in	UL94 V-0	10 mm	2.5 mm²	0.2 mm²	2	4	630 V	300 V	14 AWG	24 AWG	13.5 A	13.5 A	1	2	Tin
Phoenix Contact 1725328	Polyamide (PA) Nylon	Leg Spring Push-In Spring	1	Through Hole	135 °	45 °	15 A	5 mm	0.197 in	Green	300 VDC	4	24 AWG	14 AWG

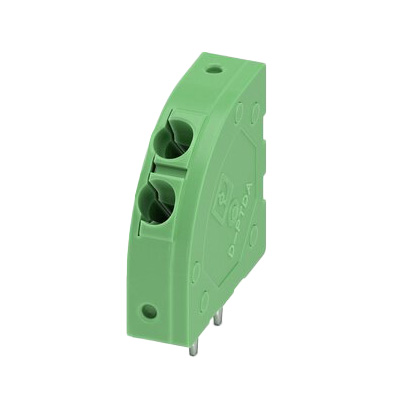

Phoenix Contact 1724912	Polyamide (PA) Nylon	Leg Spring Push-In Spring	1	Through Hole	135 °	45 °	12 A	3.5 mm	0.138 "	Green	300 VDC	2	24 AWG	16 AWG

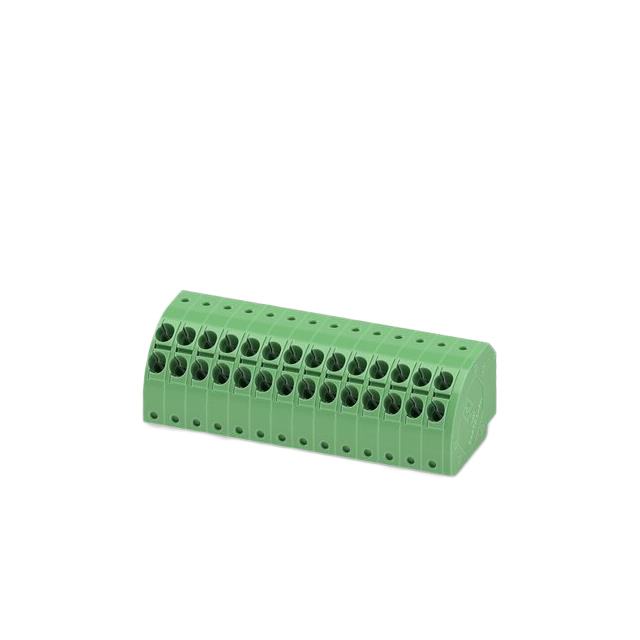

Phoenix Contact 1725263	Polyamide (PA) Nylon			Free Hanging (In-Line)				3.5 mm	0.138 "	Green		14 28			14	45 °	Plug for Unshrouded Header	Screwless - Spring Cage Tension Clamp	16 mm	0.63 in	UL94 V-0	10 mm	1.5 mm²	0.2 mm²			400 V	300 V	16 AWG	24 AWG	10 A	8 A	1	2	Tin
Phoenix Contact 1706554			1	Free Hanging (In-Line)				5 mm	0.197 in	Gray		10			10	45 °	Plug for Unshrouded Header	Screwless - Spring Cage Tension Clamp

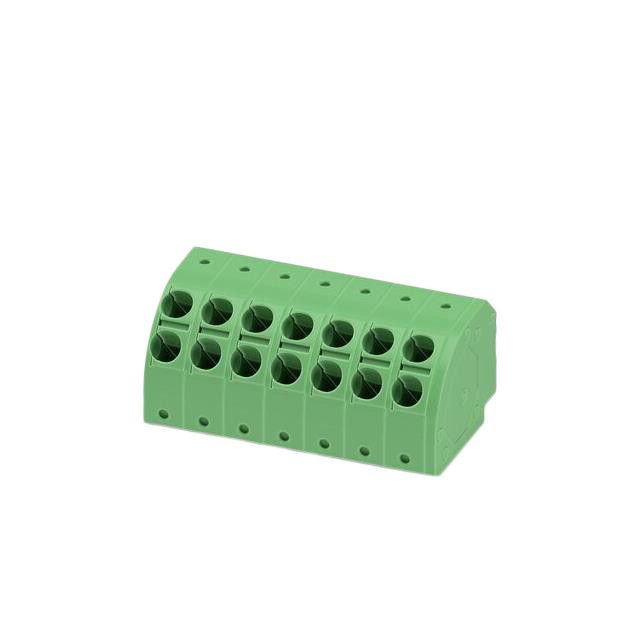

Phoenix Contact 1725623	Polyamide (PA) Nylon			Free Hanging (In-Line)				5 mm	0.197 in	Green					7	45 °	Plug for Unshrouded Header	Screwless - Spring Cage Tension Clamp	16 mm	0.63 in	UL94 V-0	10 mm	2.5 mm²	0.2 mm²	7	14	630 V	300 V	14 AWG	24 AWG	13.5 A	13.5 A	1	2	Tin
