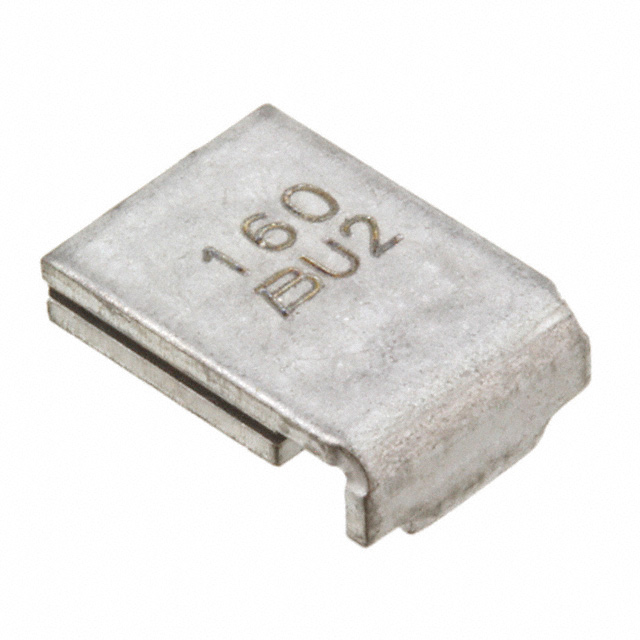

MF-SMHT Series
Manufacturer: Bourns Inc.
Beta
⌘K
PTC RESET FUSE 16V 1.6A 2SMD
| Part | Type | Thickness (Max) [Max] | Thickness (Max) [Max] | Grade | Resistance - Initial (Ri) (Min) [Min] | Current - Trip (It) | Operating Temperature [Max] | Operating Temperature [Min] | Qualification | Resistance - Post Trip (R1) (Max) [Max] | Time to Trip | Voltage - Max [Max] | Current - Max [Max] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Current - Hold (Ih) (Max) | Mounting Type | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | Polymeric | 3 mm | 0.118 in | Automotive | 50 mOhms | 3.2 A | 125 °C | -40 C | AEC-Q200 | 150 mOhms | 10 s | 16 V | 100 A | 5.94 mm | 0.374 in | 9.5 mm | 0.234 " | 1.6 A | Surface Mount | 2-SMD |
