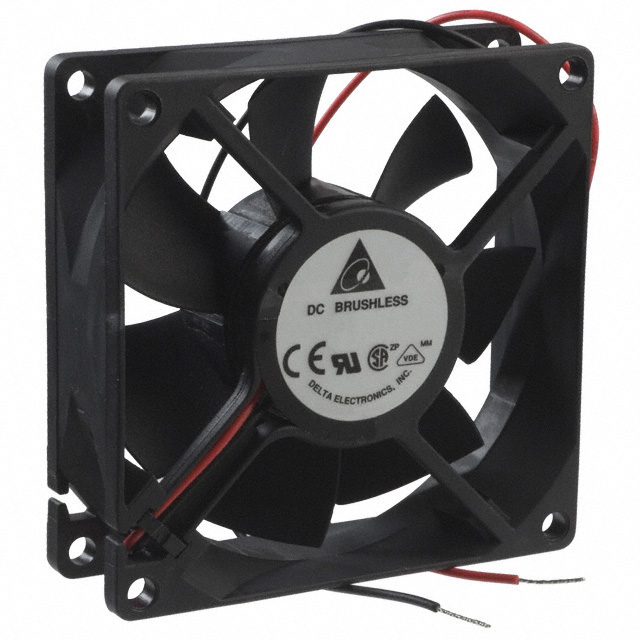

AFB0805 Series

Catalog

DC FAN AXIAL BALL BEARING 5V 4.5V TO 5.5V 35.31CFM 31DB 80 X 80 X 25.4MM

Part	Material - Frame	Current Rating (Amps)	Lifetime @ Temp.	Material - Blade	Voltage Range [Max]	Voltage Range [Min]	Static Pressure	Static Pressure	RPM	Power (Watts)	Voltage - Rated	Termination	Fan Type	Air Flow	Air Flow	Size / Dimension [z]	Size / Dimension [x]	Approval Agency	Bearing Type	Width [y]	Weight	Weight	Operating Temperature [Max]	Operating Temperature [Min]	Noise	Static Pressure	Features
Delta Electronics AFB0805H	Plastic	430 mA	70000 Hrs	Plastic	5.5 V	4.5 V	39.6 Pa	0.159 in H2O	3000 RPM	2.15 W	5 V	2 Wire Leads	Tubeaxial	0.988 mł/min	35.3 CFM	80 mm	80 mm	CE CSA UL VDE	Ball	25.4 mm	0.176 lb	80 g	70 °C	-10 °C	31 dB(A)
Delta Electronics AFB0805L	Plastic	0.24 A	70000 Hrs	Plastic	5.5 V	4.5 V	0.102 in H2O		2400 RPM	1.2 W	5 V	2 Wire Leads	Tubeaxial	0.781 m³/min	27.9 CFM	80 mm	80 mm	CE CSA UL VDE	Ball	25.4 mm	0.176 lb	80 g	70 °C	-10 °C	25 dB(A)	25.5 Pa
Delta Electronics AFB0805H-R00	Plastic	430 mA	70000 Hrs	Plastic	5.5 V	4.5 V	39.6 Pa	0.159 in H2O	3000 RPM	2.15 W	5 V	3 Wire Leads	Tubeaxial	0.988 mł/min	35.3 CFM	80 mm	80 mm	CE CSA UL VDE	Ball	25.4 mm	0.176 lb	80 g	70 °C	-10 °C	31 dB(A)		Locked Rotor Sensor
