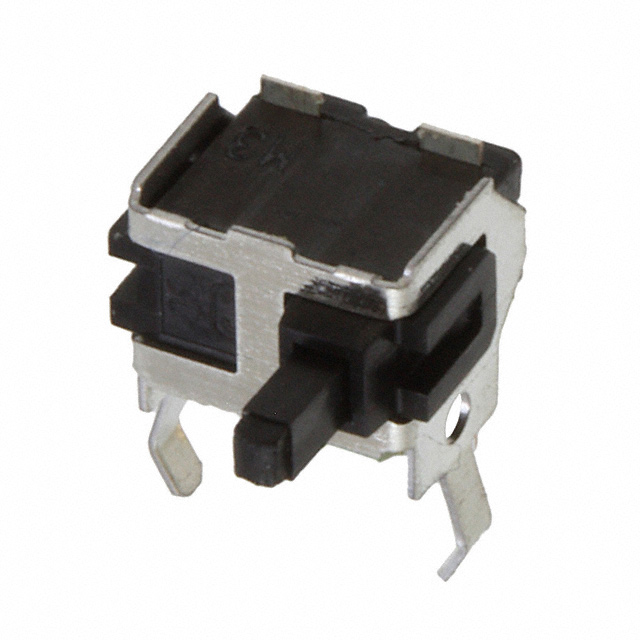

ESE-11 Series
Manufacturer: Panasonic Industrial Automation Sales
Beta
⌘K
SWITCH DETECTOR SPST-NO 0.01A 5V
| Part | Termination Style | Operating Position | Operating Position | Mounting Type | Operating Force | Circuit | Voltage Rating - DC | Electrical Life | Operating Temperature [Min] [custom] | Operating Temperature [Max] [custom] | Actuator Type | Current Rating (Amps) | Switch Function | Operating Position [x] | Operating Position [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Industrial Automation Sales | PC Pin | 0.183 in | 4.65 mm | Through Hole Right Angle | 35 gf | SPST-NO | 5 V | 50000 Cycles | -10 °C | 158 °F | Overtravel Plunger | 10 mA | Off-Mom | ||
 Panasonic Industrial Automation Sales | Solder Lug | 0.313 in | 7.95 mm | Chassis Mount | 35 gf | SPST-NO | 5 V | 50000 Cycles | -10 °C | 158 °F | Overtravel Plunger | 10 mA | Off-Mom | ||
 Panasonic Industrial Automation Sales | Solder Lug | 0.313 in | 7.95 mm | Chassis Mount | 35 gf | SPST-NO | 5 V | 50000 Cycles | -10 °C | 158 °F | Overtravel Plunger | 10 mA | Off-Mom | ||
 Panasonic Industrial Automation Sales | Quick Connect - 0.062" (1.5mm) | 0.313 in | 7.95 mm | Panel Mount Snap-In | 35 gf | SPST-NO | 5 V | 50000 Cycles | -10 °C | 158 °F | Overtravel Plunger | 10 mA | Off-Mom | ||
 Panasonic Industrial Automation Sales | Gull Wing | Surface Mount Right Angle | 35 gf | SPST-NO | 5 V | 50000 Cycles | -10 °C | 158 °F | Overtravel Plunger | 10 mA | Off-Mom | 3.7 mm | 0.146 in | ||
 Panasonic Industrial Automation Sales | Gull Wing | 0.132 in | 3.35 mm | Surface Mount Right Angle | 35 gf | SPST-NO | 5 V | 50000 Cycles | -10 °C | 158 °F | Overtravel Plunger | 10 mA | Off-Mom | ||
 Panasonic Industrial Automation Sales | PC Pin | 0.183 in | 4.65 mm | Through Hole Right Angle | 35 gf | SPST-NO | 5 V | 50000 Cycles | -10 °C | 158 °F | Overtravel Plunger | 10 mA | Off-Mom | ||
Panasonic Industrial Automation Sales | Gull Wing | Surface Mount | 35 gf | SPST-NO | 5 V | 50000 Cycles | -10 °C | 158 °F | Overtravel Plunger | 10 mA | Off-Mom | ||||
 Panasonic Industrial Automation Sales | Gull Wing | 0.305 in | 7.75 mm | Surface Mount | 35 gf | SPST-NO | 5 V | 50000 Cycles | -10 °C | 158 °F | Overtravel Plunger | 10 mA | Off-Mom | ||
 Panasonic Industrial Automation Sales | Gull Wing | 0.305 in | 7.75 mm | Surface Mount | 35 gf | SPST-NO | 5 V | 50000 Cycles | -10 °C | 158 °F | Overtravel Plunger | 10 mA | Off-Mom |
