KG10.6101 Series

Catalog

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Connector Type	Material Flammability Rating	Mounting Type	Switch Features	Connector Style	Termination	Termination	Termination	Features	Voltage Rating - Appliance Inlet	Panel Thickness	Panel Thickness	Ingress Protection	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Fuse Holder, Drawer	Approval Agency	Filter Type	Current Rating - Appliance Inlet

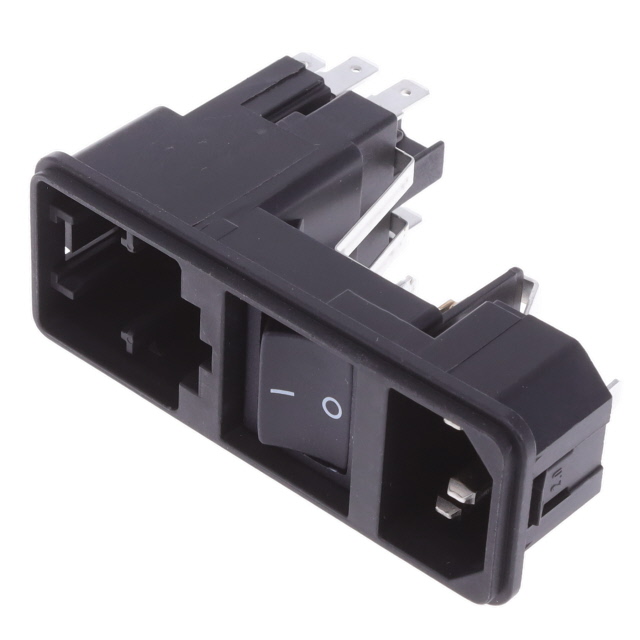

SCHURTER Inc. KG10.6101.107	Receptacle Male Blades - Module	UL94 V-0	Panel Mount Snap-In	Switch On-Off	IEC 320-C14	0.189 "	4.8 mm	Quick Connect	Voltage Selector	250 VAC	0.079 in	2 mm	IP40	27.5 mm	80 mm	Drawer Sold Separate	CSA ENEC UL	Unfiltered - Commercial	10 A
SCHURTER Inc. KG10.6101.151	Receptacle Male Blades - Module	UL94 V-0	Flange Panel Mount	Switch On-Off	IEC 320-C14	0.189 "	4.8 mm	Quick Connect	Voltage Selector	250 VAC			IP40	27.5 mm	80 mm	Drawer Sold Separate	CSA ENEC UL	Unfiltered - Commercial	10 A

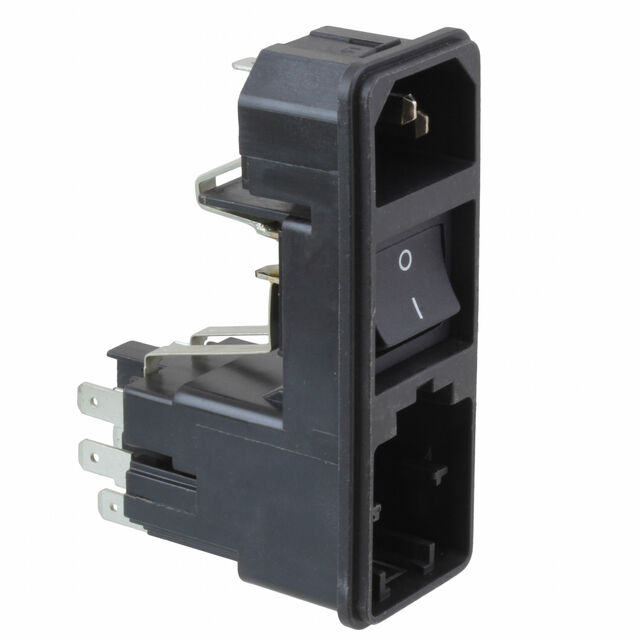

SCHURTER Inc. KG10.6101.105	Receptacle Male Blades - Module	UL94 V-0	Panel Mount Snap-In	Switch On-Off	IEC 320-C14	0.189 "	4.8 mm	Quick Connect	Voltage Selector	250 VAC	0.059 in	1.5 mm	IP40	27.5 mm	80 mm	Drawer Sold Separate	CSA ENEC UL	Unfiltered - Commercial	10 A

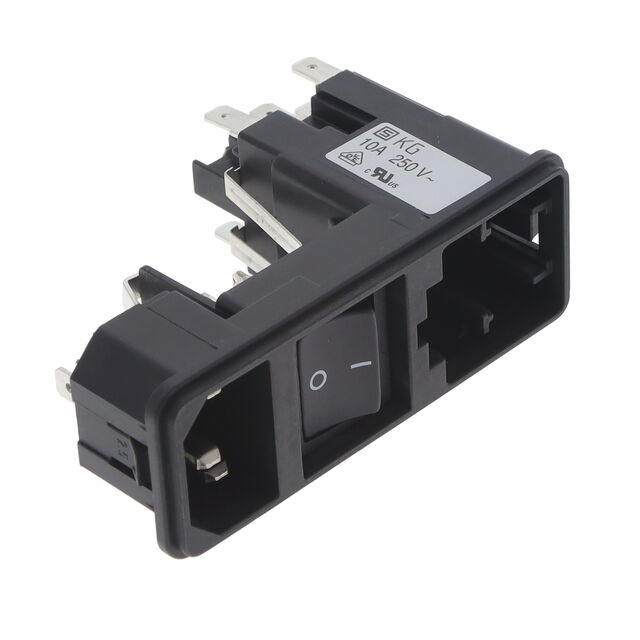

SCHURTER Inc. KG10.6101.109	Receptacle Male Blades - Module	UL94 V-0	Panel Mount Snap-In	Switch On-Off	IEC 320-C14	0.189 "	4.8 mm	Quick Connect	Voltage Selector	250 VAC	0.098 in	2.5 mm	IP40	27.5 mm	80 mm	Drawer Sold Separate	CSA ENEC UL	Unfiltered - Commercial	10 A
