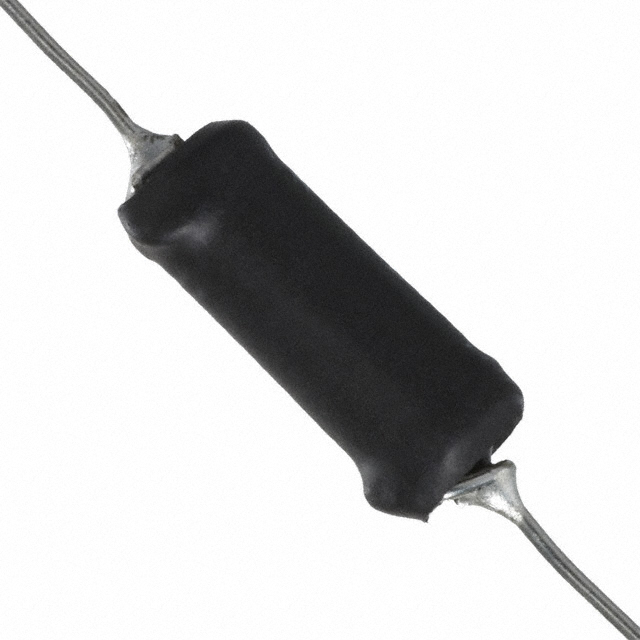

5800 Series
Manufacturer: Bourns Inc.
Beta
⌘K
FIXED IND 12UH 2A 35 MOHM TH
| Part | Package / Case | Current - Saturation (Isat) | Operating Temperature [Min] | Operating Temperature [Max] | Shielding | Type | Material - Core | Tolerance | Inductance Frequency - Test | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [diameter] | Size / Dimension [x] | Mounting Type | Inductance | DC Resistance (DCR) [Max] | Current Rating (Amps) | DC Resistance (DCR) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | Axial | 3.4 A | -55 C | 105 ░C | Unshielded | Drum Core Wirewound | Ferrite | 10 % | 1 kHz | 0.7 " | 6.99 mm | 0.275 " | 17.78 mm | Through Hole | 12 µH | 35 mOhm | 2 A | |
 Bourns Inc. | Axial | 1.1 A | -55 C | 105 ░C | Unshielded | Drum Core Wirewound | Ferrite | 10 % | 1 kHz | 0.7 " | 6.99 mm | 0.275 " | 17.78 mm | Through Hole | 100 µH | 210 mOhm | 800 mA | |
 Bourns Inc. | Axial | 170 mA | -55 C | 105 ░C | Unshielded | Drum Core Wirewound | Ferrite | 10 % | 1 kHz | 0.7 " | 6.99 mm | 0.275 " | 17.78 mm | Through Hole | 4.7 mH | 12.5 Ohm | 110 mA | |
Bourns Inc. | Axial | 5 A | -55 C | 105 ░C | Unshielded | Drum Core Wirewound | Ferrite | 10 % | 1 kHz | 0.7 " | 6.99 mm | 0.275 " | 17.78 mm | Through Hole | 5.6 µH | 23 mOhm | 2.5 A | |
Bourns Inc. | Axial | 170 mA | -55 C | 105 ░C | Unshielded | Drum Core Wirewound | Ferrite | 10 % | 1 kHz | 0.7 " | 6.99 mm | 0.275 " | 17.78 mm | Through Hole | 4.7 mH | 12.5 Ohm | 110 mA | |
Bourns Inc. | Axial | 3.6 A | -55 C | 105 ░C | Unshielded | Drum Core Wirewound | Ferrite | 10 % | 1 kHz | 0.7 " | 6.99 mm | 0.275 " | 17.78 mm | Through Hole | 10 µH | 2.1 A | 32 mOhm | |
Bourns Inc. | Axial | 80 mA | -55 C | 105 ░C | Unshielded | Drum Core Wirewound | Ferrite | 10 % | 1 kHz | 0.7 " | 6.99 mm | 0.275 " | 17.78 mm | Through Hole | 18 mH | 41 Ohm | 58 mA | |
Bourns Inc. | Axial | -55 C | 105 ░C | Unshielded | Drum Core Wirewound | Ferrite | 10 % | 1 kHz | 0.7 " | 6.99 mm | 0.275 " | 17.78 mm | Through Hole | 56 µH | 1 A | 150 mOhm | ||
Bourns Inc. | Axial | 220 mA | -55 C | 105 ░C | Unshielded | Drum Core Wirewound | Ferrite | 10 % | 1 kHz | 0.7 " | 6.99 mm | 0.275 " | 17.78 mm | Through Hole | 2.7 mH | 6.6 Ohm | 150 mA | |
Bourns Inc. | Axial | 3.4 A | -55 C | 105 ░C | Unshielded | Drum Core Wirewound | Ferrite | 10 % | 1 kHz | 0.7 " | 6.99 mm | 0.275 " | 17.78 mm | Through Hole | 12 µH | 35 mOhm | 2 A |
