598-8N Series

Manufacturer: DIALIGHT

Catalog

LED GREEN CLEAR 0603 SMD

Part	Height (Max) [z]	Lens Style	Package / Case	Package / Case	Lens Transparency	Size / Dimension [x]	Size / Dimension [y]	Millicandela Rating	Mounting Type	Current - Test	Height (Max) [z]	Lens Size [y]	Lens Size [x]	Voltage - Forward (Vf) (Typ)	Lens Color	Wavelength - Dominant	Color	Viewing Angle	Height (Max) [Max] [z]	Wavelength - Dominant [Max]	Wavelength - Dominant [Min]
DIALIGHT 598-8N80-107F	0.08 mm	Rectangle with Flat Top	1608 Metric	0603	Clear	1.6 mm	0.8 mm	715 mcd	Surface Mount	20 mA	0.35 mm	0.8 mm	1.1 mm	3.1 V	Colorless	525 nm	Green	140 °
DIALIGHT 598-8N10-107F	0.08 mm	Rectangle with Flat Top	1608 Metric	0603	Clear	1.6 mm	0.8 mm	64 mcd	Surface Mount	20 mA	0.35 mm	0.8 mm	1.1 mm	2.1 V	Colorless	632 nm	Red	140 °

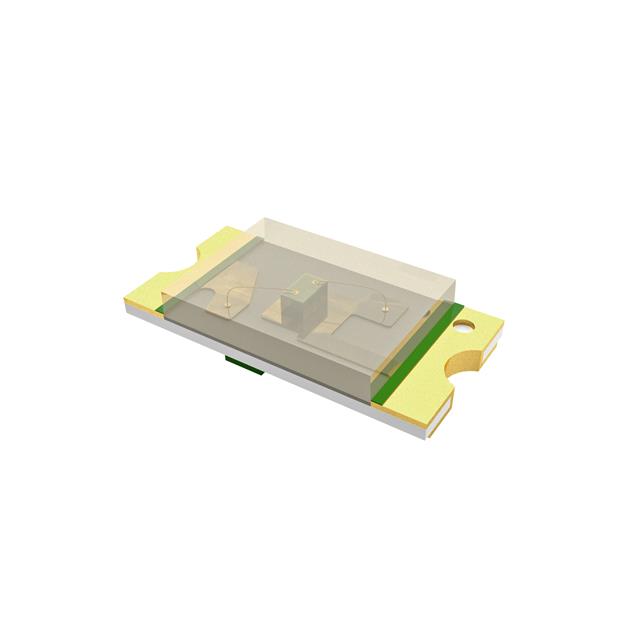

DIALIGHT 598-8N40-107F	0.08 mm	Rectangle with Flat Top	1608 Metric	0603	Clear	1.6 mm	0.8 mm	207.5 mcd	Surface Mount	20 mA	0.35 mm	0.8 mm	1.1 mm	2 V	Colorless	590 nm	Yellow	140 °
DIALIGHT 598-8N30-107F	0.08 mm	Rectangle with Flat Top	1608 Metric	0603	Clear	1.6 mm	0.8 mm	207.5 mcd	Surface Mount	20 mA	0.35 mm	0.8 mm	1.1 mm	2 V	Colorless	605 nm		140 °
DIALIGHT 598-8N90-107F	0.08 mm	Rectangle with Flat Top	1608 Metric	0603	Clear	1.6 mm	0.8 mm	136.5 mcd	Surface Mount	20 mA	0.35 mm	0.8 mm	1.1 mm	3.1 V	Colorless	470 nm	Blue	140 °
DIALIGHT 598-8N20-107F		Rectangle with Flat Top	1608 Metric	0603	Clear	1.6 mm	0.8 mm	207.5 mcd	Surface Mount	20 mA	0.35 mm	0.8 mm	1.1 mm	2 V	Colorless		Orange Red	140 °	0.38 mm	630 nm	615 nm
DIALIGHT 598-8N60-107F		Rectangle with Flat Top	1608 Metric	0603	Clear	1.6 mm	0.8 mm	49 mcd	Surface Mount	20 mA	0.35 mm	0.8 mm	1.1 mm	2 V	Colorless	570 nm	Green Yellow	140 °	0.38 mm
