TL3304 Series

Manufacturer: E-Switch

Catalog

SWITCH TACTILE SPST-NO 0.05A 50V

Part	Actuator Material	Switch Travel	Mechanical Life	Operating Force	Actuator Type	Contact Rating @ Voltage	Mounting Type	Actuator Orientation	Circuit	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Height off PCB, Vertical	Illumination	Switch Function	Outline [x]	Outline [y]	Termination Style	Actuator Height off PCB, Vertical [z]
E-Switch TL3304AF260QG	Rubber	0.25 mm	100000 Cycles	260 gf	Standard	0.05 A 50 VDC	Surface Mount	Top Actuated	SPST-NO	-20 ░C	70 °C	3.4 mm	Non-Illuminated	Off-Mom	6.2 mm	6.2 mm	Gull Wing
E-Switch TL3304BF160QG	Rubber	0.25 mm	100000 Cycles	160 gf	Standard	0.05 A 12 VDC	Surface Mount	Top Actuated	SPST-NO	-20 ░C	70 °C		Non-Illuminated	Off-Mom	6.2 mm	6.2 mm	Gull Wing
E-Switch TL3304NF500QG				0.5 kgf	Standard	0.05 A 50 VDC	Surface Mount	Top Actuated	SPST-NO	-20 ░C	70 °C		Non-Illuminated	Off-Mom	6.2 mm	6.2 mm	Gull Wing	2.6 mm

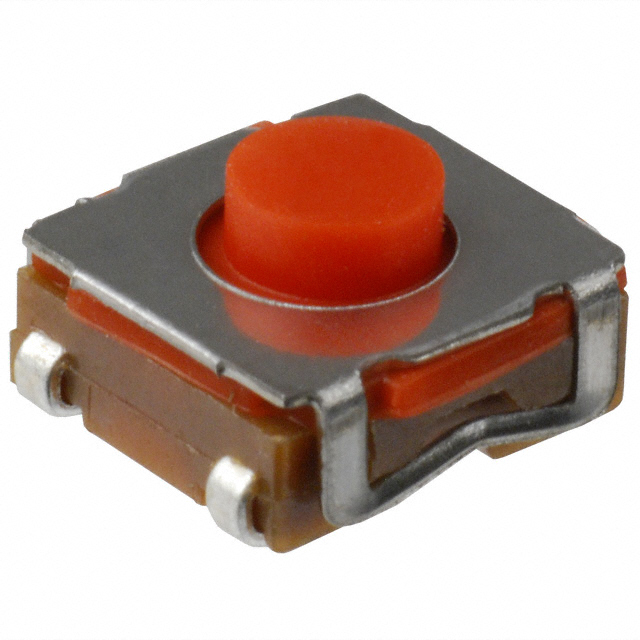

E-Switch TL3304AF260QJ	Rubber	0.25 mm	100000 Cycles	260 gf	Standard	0.05 A 50 VDC	Surface Mount	Top Actuated	SPST-NO	-20 ░C	70 °C	3.4 mm	Non-Illuminated	Off-Mom	6.2 mm	6.2 mm	J Lead

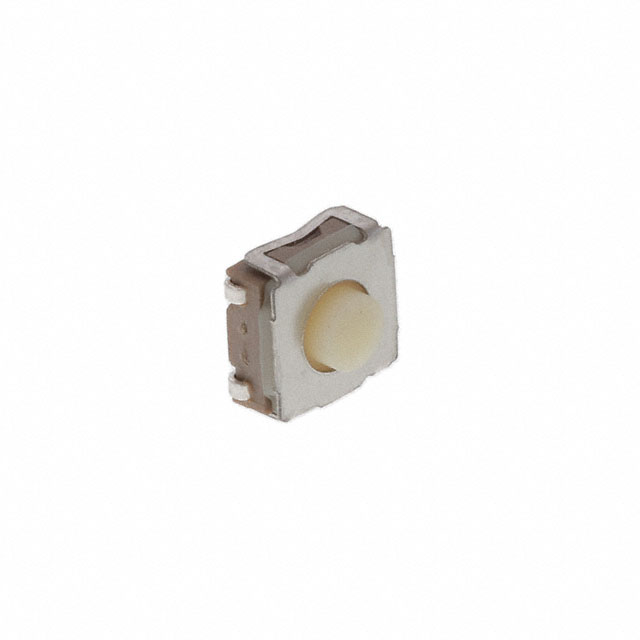

E-Switch TL3304AF160QJ	Rubber	0.25 mm	100000 Cycles	160 gf	Standard	0.05 A 50 VDC	Surface Mount	Top Actuated	SPST-NO	-20 ░C	70 °C	3.4 mm	Non-Illuminated	Off-Mom	6.2 mm	6.2 mm	J Lead
E-Switch TL3304AF350QJ	Rubber	0.25 mm	100000 Cycles	350 gf	Standard	0.05 A 50 VDC	Surface Mount	Top Actuated	SPST-NO	-20 ░C	70 °C	3.4 mm	Non-Illuminated	Off-Mom	6.2 mm	6.2 mm	J Lead
