172-015 Series

Catalog

CONN D-SUB RCPT 15P PNL MNT SLDR

Part	Dielectric Material	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Shell Size, Connector Layout	Material Flammability Rating	Number of Positions	Contact Type	Connector Style	Connector Type	Contact Finish Thickness	Flange Feature	Mounting Type	Number of Rows [custom]	Contact Finish	Current Rating (Amps)	Color	Contact Material	Shell Material, Finish	Features	Shell Material, Finish [custom]	Shell Material, Finish [custom]	Wire Gauge [Max]	Wire Gauge [Min]
NorComp Inc. 172-015-282-011	Polybutylene Terephthalate (PBT)	100 °C	-50 °C	Solder	2	UL94 V-0	15	Signal	D-Sub	Receptacle Female Sockets	Flash	Board Side (4-40)	Panel Mount Through Hole	2	Gold	5 A
NorComp Inc. 172-015-283L021	Polybutylene Terephthalate (PBT)	125 °C	-50 °C	Solder	2	UL94 V-0	15	Signal	D-Sub	Receptacle Female Sockets	Flash	Board Side (4-40)	Panel Mount Through Hole	2	Gold	5 A	Black	Brass	Nickel Plated Steel

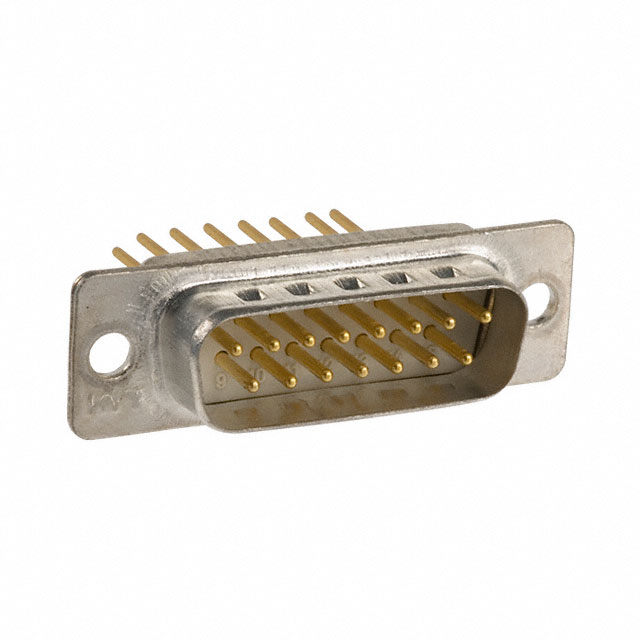

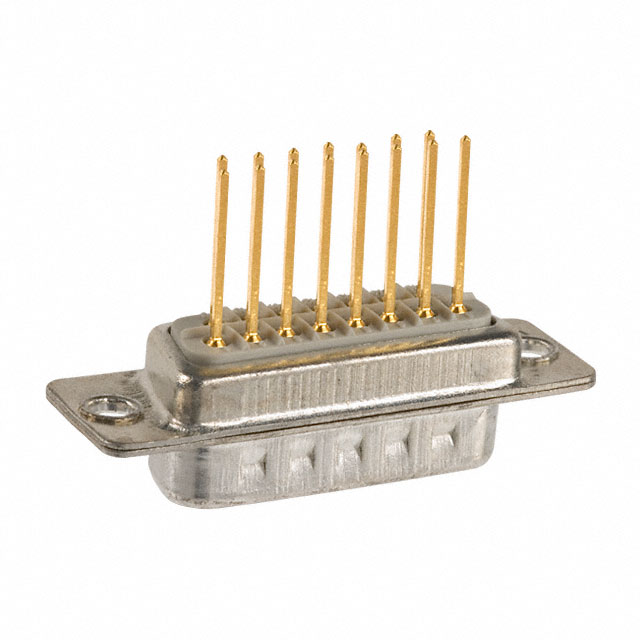

NorComp Inc. 172-015-142R001	Polybutylene Terephthalate (PBT) Polyester	100 °C	-50 °C	Wire Wrap	2	UL94 V-0	15	Signal	D-Sub	Plug Male Pins	Flash	Housing/Shell (Unthreaded)	Panel Mount Through Hole	2	Gold	5 A	Beige	Brass		Grounding Indents
NorComp Inc. 172-015-212-011	Polybutylene Terephthalate (PBT)	125 °C	-50 °C	Solder	2	UL94 V-0	15	Signal	D-Sub	Receptacle Female Sockets	Flash	Board Side (4-40)	Panel Mount Through Hole	2	Gold	5 A	Beige

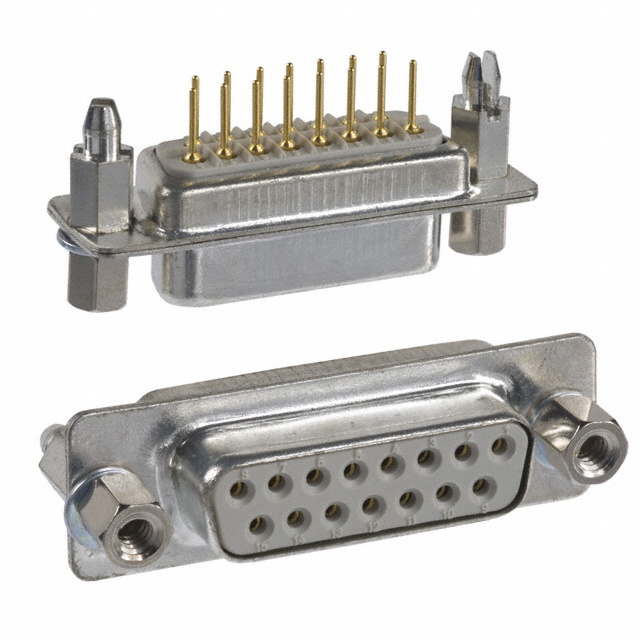

NorComp Inc. 172-015-212R911	Polybutylene Terephthalate (PBT) Polyester	100 °C	-50 °C	Solder	2	UL94 V-0	15	Signal	D-Sub	Receptacle Female Sockets	Flash	Board Side (4-40) Mating Side Female Screwlock (4-40)	Panel Mount Through Hole	2	Gold	5 A	Beige	Brass		Board Lock
NorComp Inc. 172-015-111-001	Polybutylene Terephthalate (PBT)	100 °C	-50 °C	Solder	2	UL94 V-0	15	Signal	D-Sub	Plug Male Pins	Flash	Housing/Shell (Unthreaded)	Panel Mount Through Hole	2	Gold	5 A	Black				Steel	Yellow Chromate Plated
NorComp Inc. 172-015-282-021	Polybutylene Terephthalate (PBT)	100 °C	-50 °C	Solder	2	UL94 V-0	15	Signal	D-Sub	Receptacle Female Sockets	Flash	Board Side (4-40)	Panel Mount Through Hole	2	Gold	5 A

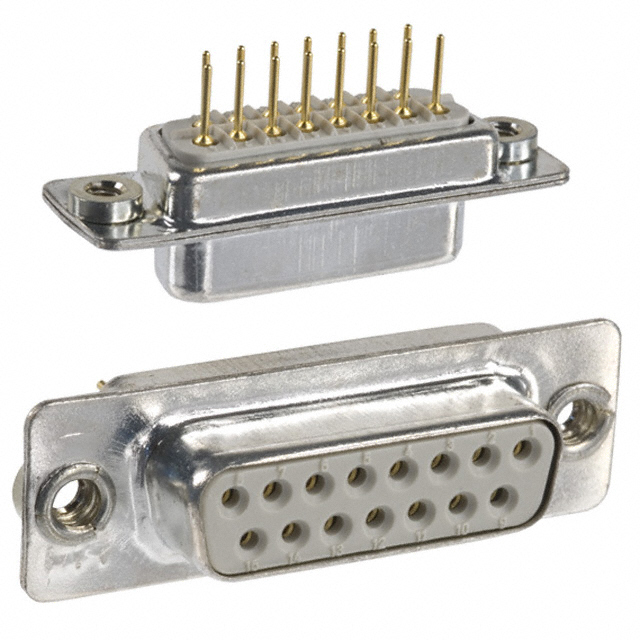

NorComp Inc. 172-015-212R011	Polybutylene Terephthalate (PBT) Polyester	100 °C	-50 °C	Solder	2	UL94 V-0	15	Signal	D-Sub	Receptacle Female Sockets	Flash	Board Side (4-40)	Panel Mount Through Hole	2	Gold	5 A	Beige	Brass
NorComp Inc. 172-015-242R011	Polybutylene Terephthalate (PBT) Polyester	100 °C	-50 °C	Wire Wrap	2	UL94 V-0	15	Signal	D-Sub	Receptacle Female Sockets	Flash	Board Side (4-40)	Panel Mount Through Hole	2	Gold	5 A	Beige	Brass

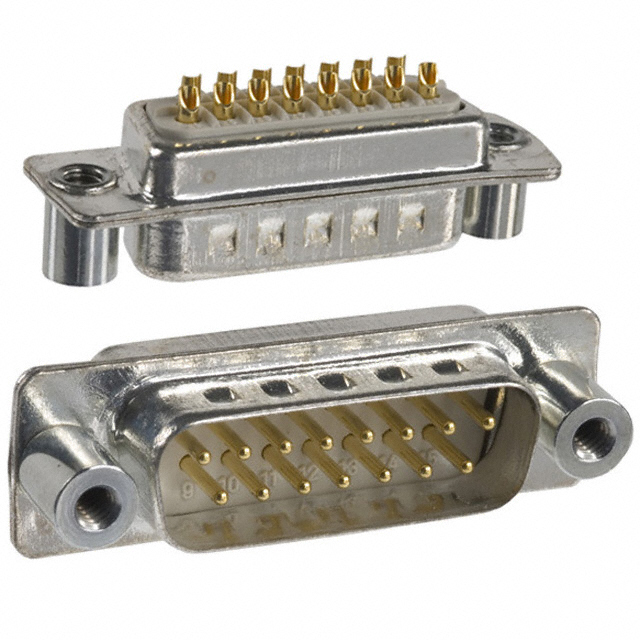

NorComp Inc. 172-015-102-031	Polybutylene Terephthalate (PBT)	100 °C	-50 °C		2	UL94 V-0	15	Signal	D-Sub	Plug Male Pins	Flash	4-40	Panel Mount	2	Gold	5 A		Brass		Grounding Indents			28 AWG	19.5 AWG
