PE4560 Series

Catalog

2.92(F) FLD RPL 2HOLE 0.015" PIN

Part	Center Contact Plating	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Body Material	Mating Cycles	Features	Contact Termination	Shield Termination	Impedance	Housing Color	Frequency - Max [Max]	Connector Type	Mounting Feature	Center Contact Material	Number of Ports	Connector Style [x]	Fastening Type	Mounting Type

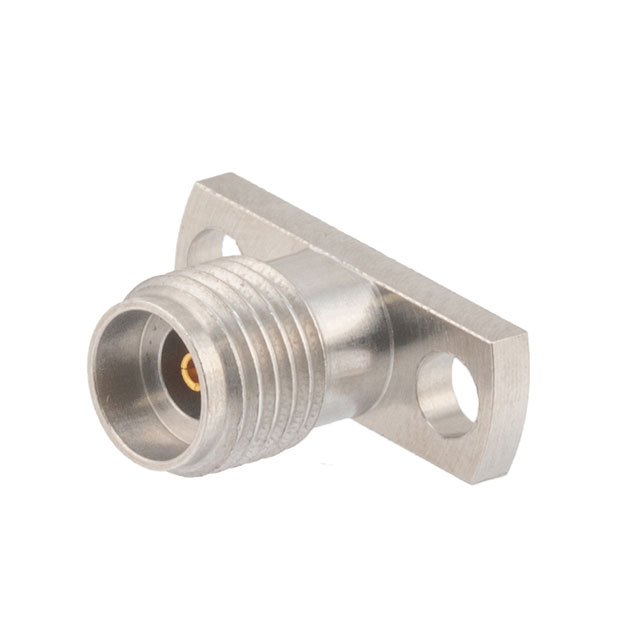

Pasternack PE45608	Gold	-40 C	165 °C	Polyetherimide (PEI)	Stainless Steel	500	Field Replaceable For Hermetically Sealed Pin	Compression	Screw	50 Ohms	Silver	40 GHz	Receptacle Female Socket	Flange	Beryllium Copper	1	2.92 mm	Threaded	Panel Mount

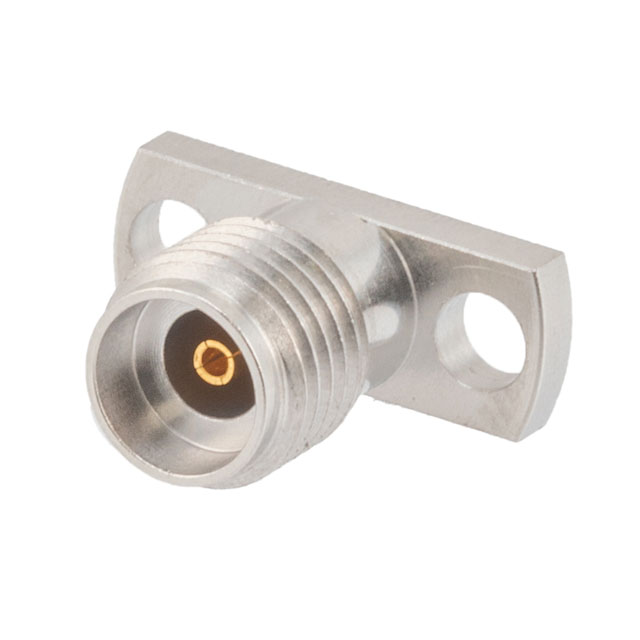

Pasternack PE45604	Gold	-40 C	165 °C	Polyetherimide (PEI)	Stainless Steel	500	Field Replaceable For Hermetically Sealed Pin	Compression	Screw	50 Ohms	Silver	40 GHz	Receptacle Female Socket	Flange	Beryllium Copper	1	2.92 mm	Threaded	Panel Mount

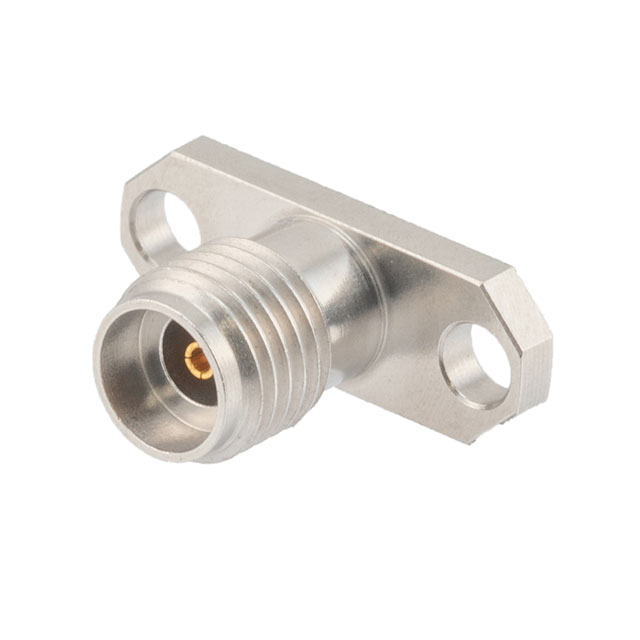

Pasternack PE45600	Gold	-40 C	165 °C	Polyetherimide (PEI)	Stainless Steel	500	Field Replaceable For Hermetically Sealed Pin	Compression	Screw	50 Ohms	Silver	40 GHz	Receptacle Female Socket	Flange	Beryllium Copper	1	2.92 mm	Threaded	Panel Mount

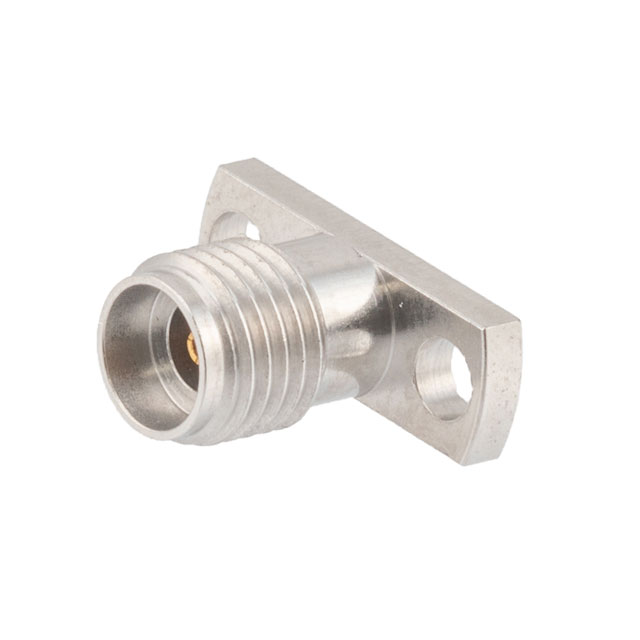

Pasternack PE45607	Gold	-40 C	165 °C	Polyetherimide (PEI)	Stainless Steel	500	Field Replaceable For Hermetically Sealed Pin	Compression	Screw	50 Ohms	Silver	40 GHz	Receptacle Female Socket	Flange	Beryllium Copper	1	2.92 mm	Threaded	Panel Mount
