325-108 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FML 108POS 0.100

Part	Material - Insulation	Termination Rows [custom]	Card Type	Color	Read Out	Number of Rows [custom]	Contact Material	Contact Type	Gender	Contact Finish	Mounting Type	Number of Positions/Bay/Row	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Card Thickness	Card Thickness	Contact Finish Thickness	Contact Finish Thickness	Pitch	Pitch	Termination

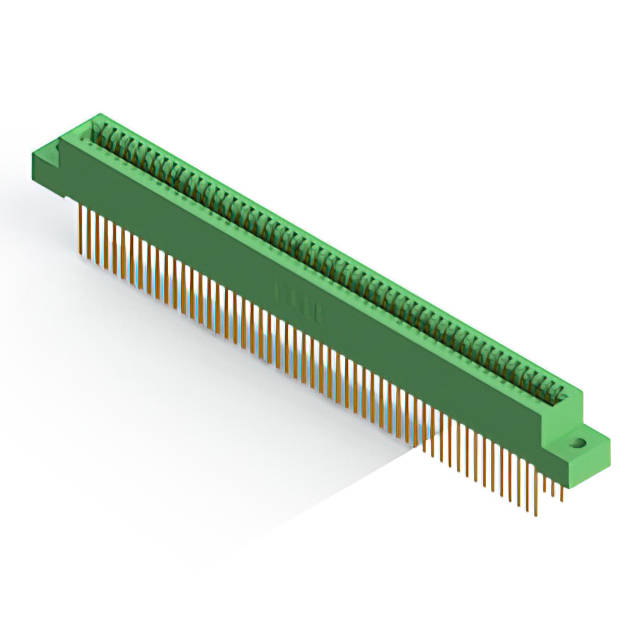

EDAC Inc. 325-108-540-209	Diallyl Phthalate (DAP)	2	Non Specified - Dual Edge	Green	Dual	2	Copper Alloy	Cantilever	Female	Gold	Through Hole	54	Flush Mount Top Opening Unthreaded	0.16 "	4.06 mm	-65 ░C	125 °C	108	3.18 mm	0.125 in	0.25 Ám	10 Áin	0.1 "	2.54 mm	Wire Wrap
EDAC Inc. 325-108-540-208	Diallyl Phthalate (DAP)	2	Non Specified - Dual Edge	Green	Dual	2	Copper Alloy	Cantilever	Female	Gold	Through Hole	54	4-40 Flush Mount Threaded Insert Top Opening			-65 ░C	125 °C	108	3.18 mm	0.125 in	0.25 Ám	10 Áin	0.1 "	2.54 mm	Wire Wrap

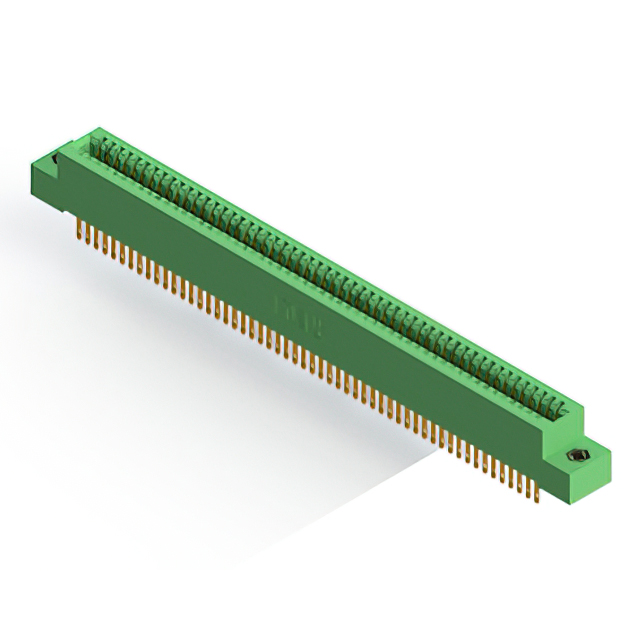

EDAC Inc. 325-108-500-208	Diallyl Phthalate (DAP)	2	Non Specified - Dual Edge	Green	Dual	2	Copper Alloy	Cantilever	Female	Gold	Through Hole	54	4-40 Flush Mount Threaded Insert Top Opening			-65 ░C	125 °C	108	3.18 mm	0.125 in	0.25 Ám	10 Áin	0.1 "	2.54 mm	Solder Eyelet(s)
EDAC Inc. 325-108-520-208	Diallyl Phthalate (DAP)	2	Non Specified - Dual Edge	Green	Dual	2	Copper Alloy	Cantilever	Female	Gold	Through Hole	54	4-40 Flush Mount Threaded Insert Top Opening			-65 ░C	125 °C	108	3.18 mm	0.125 in	0.25 Ám	10 Áin	0.1 "	2.54 mm	Solder
EDAC Inc. 325-108-520-207	Diallyl Phthalate (DAP)	2	Non Specified - Dual Edge	Green	Dual	2	Copper Alloy	Cantilever	Female	Gold	Through Hole	54	Flush Mount M3 Threaded Insert Top Opening			-65 ░C	125 °C	108	3.18 mm	0.125 in	0.25 Ám	10 Áin	0.1 "	2.54 mm	Solder
