TRF3722 Series
Manufacturer: Texas Instruments
Beta
⌘K
400-MHZ TO 4.2-GHZ QUADRATURE MODULATOR WITH INTEGRATED WIDEBAND PLL/VCO
| Part | Noise Floor | P1dB | Supplier Device Package | LO Frequency [Max] | LO Frequency [Min] | Voltage - Supply [Max] | Voltage - Supply [Min] | RF Frequency [Max] | RF Frequency [Min] | Current - Supply | Test Frequency [Max] | Test Frequency [Min] | Package / Case | Output Power | Function | Mounting Type | Supplied Contents | For Use With/Related Products | Utilized IC / Part | Contents | Frequency [Min] | Frequency [Max] | Type | Test Frequency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments | -159 dBm/Hz | 10.2 dBm | 48-VQFN (7x7) | 4.2 GHz | 250 MHz | 3.6 V | 3 V | 4.2 GHz | 400 MHz | 374 mA | 4.2 GHz | 400 MHz | 48-VFQFN Exposed Pad | 1 dBm | Modulator | Surface Mount | ||||||||

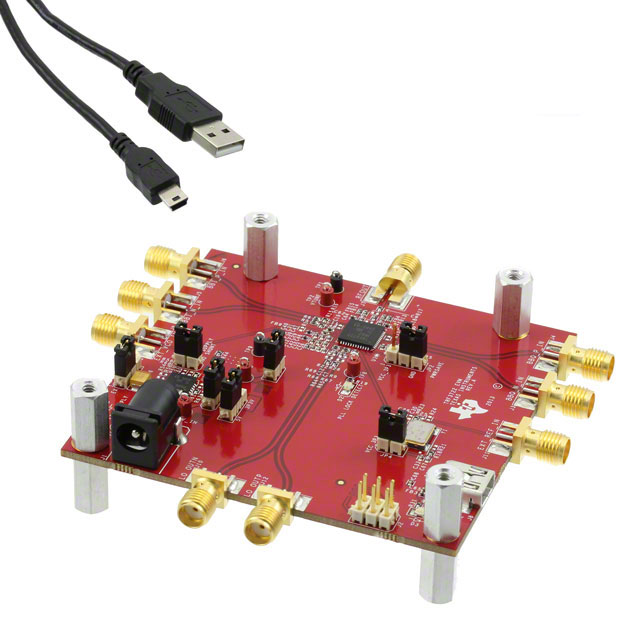

 Texas Instruments | Board(s) | TRF3722 | TRF3722 | Board(s) | 400 MHz | 4.1 GHz | Modulator | |||||||||||||||||
Texas Instruments | -156 dBm/Hz | 13 dBm | 48-VQFN (7x7) | 3.6 GHz | 750 MHz | 5.5 V | 3 V | 4.2 GHz | 400 MHz | 374 mA | 48-VFQFN Exposed Pad | 1 dBm | Modulator | Surface Mount | 1.8 GHz |
