84688 Series

Catalog

CONN RCPT HIGH SPEED 36P EDGE MT

Part	Contact Layout, Typical [custom]	Contact Layout, Typical [custom]	Features	Connector Style	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Color	Number of Positions Loaded	Number of Positions	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Material Flammability Rating	Termination	Connector Type	Mounting Type	Contact Layout, Typical
Amphenol ICC (FCI) 84688-101	6	30	Board Guide Shielded Spacer	High Speed	5	105 ░C	-55 °C	Gold	Natural	All	36	0.079 in	2 mm	0.76 Ám	30 Áin	UL94 V-0	Press-Fit	Receptacle Female Sockets	Board Edge Right Angle Through Hole
Amphenol ICC (FCI) 84688-901LF	36	180	Board Guide Shielded Spacer	High Speed	5	105 ░C	-55 °C	Gold	Natural	All	216	0.079 in	2 mm	0.76 Ám	30 Áin	UL94 V-0	Press-Fit	Receptacle Female Sockets	Board Edge Right Angle Through Hole
Amphenol ICC (FCI) 84688-302LF	36	180	Board Guide Shielded Spacer	High Speed	5	105 ░C	-55 °C	Gold or Gold GXT™	Natural	All	216	0.079 in	2 mm	0.8 µm	31.5 µin	UL94 V-0	Press-Fit	Receptacle Female Sockets	Board Edge Right Angle Through Hole

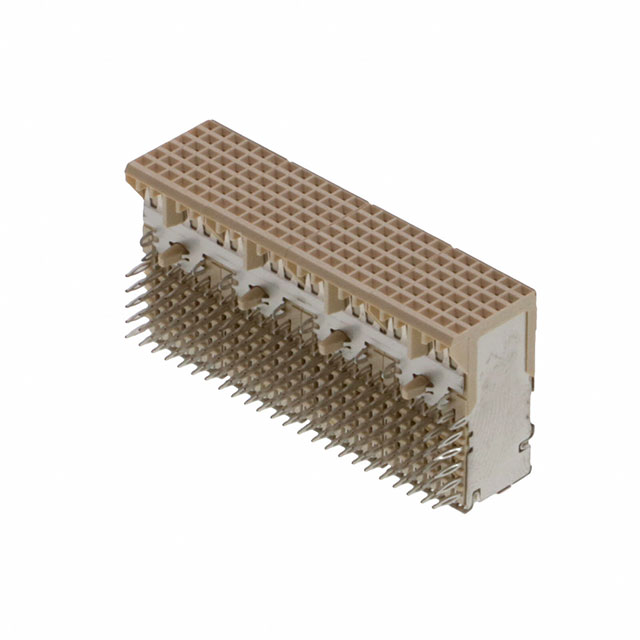

Amphenol ICC (FCI) 84688-104LF			Board Guide Shielded Spacer	High Speed	5	105 ░C	-55 °C	Gold	Natural	All	144	0.079 in	2 mm	0.76 Ám	30 Áin	UL94 V-0	Press-Fit	Receptacle Female Sockets	Board Edge Right Angle Through Hole	24 120
Amphenol ICC (FCI) 84688-901	36	180	Board Guide Shielded Spacer	High Speed	5	105 ░C	-55 °C	Gold	Natural	All	216	0.079 in	2 mm	0.76 Ám	30 Áin	UL94 V-0	Press-Fit	Receptacle Female Sockets	Board Edge Right Angle Through Hole
Amphenol ICC (FCI) 84688-104			Board Guide Shielded Spacer	High Speed	5	105 ░C	-55 °C	Gold	Natural	All	144	0.079 in	2 mm	0.76 Ám	30 Áin	UL94 V-0	Press-Fit	Receptacle Female Sockets	Board Edge Right Angle Through Hole	24 120
Amphenol ICC (FCI) 84688-902S	36	180	Board Guide Shielded Spacer	High Speed	5	105 ░C	-55 °C		Natural	All	216	0.079 in	2 mm			UL94 V-0	Press-Fit	Receptacle Female Sockets	Board Edge Right Angle Through Hole
Amphenol ICC (FCI) 84688-102LF	12	60	Board Guide Shielded Spacer	High Speed	5	105 ░C	-55 °C	Gold	Natural	All	72	0.079 in	2 mm	0.76 Ám	30 Áin	UL94 V-0	Press-Fit	Receptacle Female Sockets	Board Edge Right Angle Through Hole
Amphenol ICC (FCI) 84688-901S	36	180	Board Guide Shielded Spacer	High Speed	5	105 ░C	-55 °C		Natural	All	216	0.079 in	2 mm			UL94 V-0	Press-Fit	Receptacle Female Sockets	Board Edge Right Angle Through Hole
Amphenol ICC (FCI) 84688-904SLF			Board Guide Shielded Spacer	High Speed	5	105 ░C	-55 °C		Natural	All	144	0.079 in	2 mm			UL94 V-0	Press-Fit	Receptacle Female Sockets	Board Edge Right Angle Through Hole	24 120
