MX23A12N Series
Manufacturer: JAE Electronics
Beta
⌘K

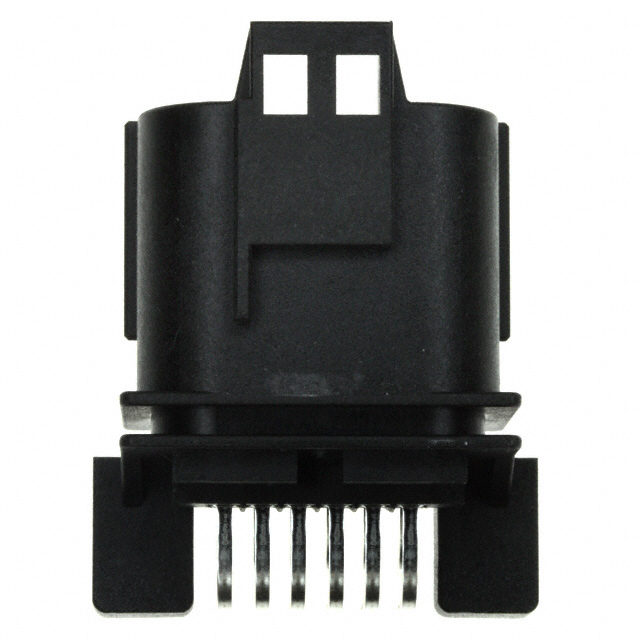

CONN HEADER R/A 12POS 2.5MM
| Part | Applications | Features | Contact Shape | Current Rating (Amps) | Mounting Type | Shrouding | Insulation Height | Insulation Height | Contact Finish - Post | Fastening Type | Insulation Material | Number of Rows [custom] | Number of Positions Loaded | Row Spacing - Mating | Row Spacing - Mating | Connector Type | Termination | Contact Type | Style | Pitch - Mating | Pitch - Mating | Contact Length - Post [x] | Contact Length - Post [x] | Number of Positions | Ingress Protection | Contact Material | Insulation Color | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JAE Electronics | Automotive | Board Guide | Square | 3 A | Right Angle Through Hole | Shrouded - 4 Wall | 0.72 in | 18.3 mm | Tin | Latch Holder | Polybutylene Terephthalate (PBT) Glass Filled | 2 | All | 4.4 mm | 0.173 " | Header | Solder | Male Pin | Board to Cable/Wire | 2.5 mm | 0.098 in | 0.122 in | 3.1 mm | 12 | Waterproof | Brass | Black | 125 °C | -40 C |
