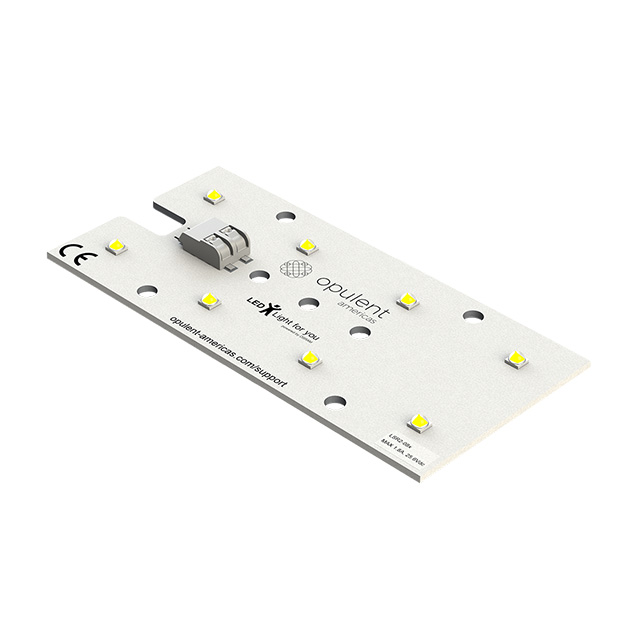

LSR2-08 Series

Catalog

LED MOD OSLON WM WH RECT 2700K

Part	Type	Luminous Flux @ Current/Temperature	Lumens/Watt @ Current - Test	CCT (K)	Temperature - Test	Voltage - Forward (Vf) (Typ)	Size / Dimension [y]	Size / Dimension [x]	Lens Type	Configuration	CRI (Color Rendering Index)	Current - Max [Max]	Color
New Energy LSR2-08F04-2780-00	LED Module	1880 lm	120 lm/W	2700 K	85 °C	22.4 V	45.01 mm	59.59 mm	Flat	Rectangle	80	1.8 A	Warm White
New Energy LSR2-08F04-4070-00	LED Module	2520 lm	160 lm/W	4000 K	85 °C	22.4 V	45.01 mm	59.59 mm	Flat	Rectangle	70	1.8 A	Neutral White
New Energy LSR2-08F04-2790-00	LED Module	1640 lm	104 lm/W	2700 K	85 °C	22.4 V	45.01 mm	59.59 mm	Flat	Rectangle	90	1.8 A	Warm White
New Energy LSR2-08F04-3080-00	LED Module	1950 lm	125 lm/W	3000 K	85 °C	22.4 V	45.01 mm	59.59 mm	Flat	Rectangle	80	1.8 A	Warm White
New Energy LSR2-08F04-5070-00	LED Module	2520 lm	160 lm/W	5000 K	85 °C	22.4 V	45.01 mm	59.59 mm	Flat	Rectangle	70	1.8 A	Cool White
New Energy LSR2-08F04-4080-00	LED Module	2040 lm	130 lm/W	4000 K	85 °C	22.4 V	45.01 mm	59.59 mm	Flat	Rectangle	80	1.8 A	Neutral White
New Energy LSR2-08F04-3070-00	LED Module	2440 lm	155 lm/W	3000 K	85 °C	22.4 V	45.01 mm	59.59 mm	Flat	Rectangle	70	1.8 A	Warm White
New Energy LSR2-08F04-5080-00	LED Module	2120 lm	135 lm/W	5000 K	85 °C	22.4 V	45.01 mm	59.59 mm	Flat	Rectangle	80	1.8 A	Cool White
