74LVC86 Series
Manufacturer: NXP USA Inc.
Beta
⌘K

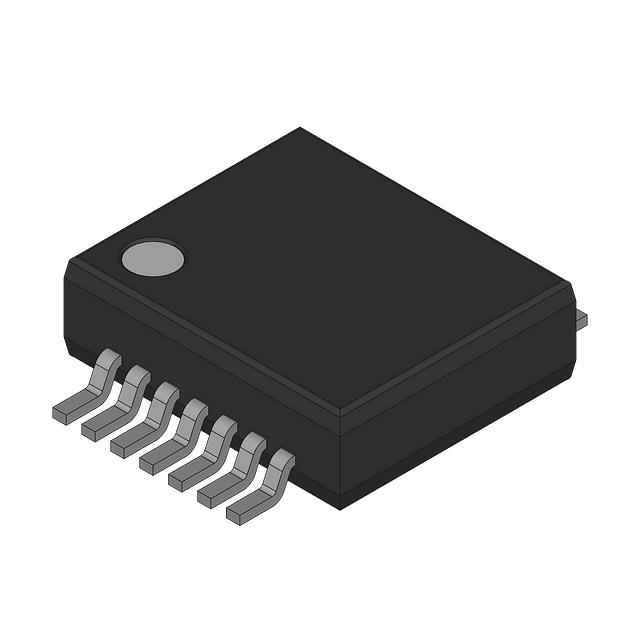

IC GATE XOR 4CH 2-INP 14-SO
| Part | Package Width | Package Name | Package Length | Logic Type | Input Logic Level - Low (Max) | Input Logic Level - Low (Min) | Current - Quiescent (Max) | Current - Output Low | Current - Output High | Max Propagation Delay | Max CL | Number of Inputs | Voltage - Supply (Minimum) | Voltage - Supply (Maximum) | Number of Circuits | Mounting Type | Input Logic Level - High (Max) | Input Logic Level - High (Min) | Operating Temperature (Max) | Operating Temperature (Min) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NXP USA Inc. | ||||||||||||||||||||
 NXP USA Inc. | 5.3 mm | 14-SSOP | 0.209 in | XOR (Exclusive OR) | 0.8 V | 0.58 V | 40 ĄA | 24 mA | 24 mA | 5 ns | 50 pF | 2 | 1.2 V | 3.6 V | 4 | Surface Mount | 2 V | 1.07 V | 125 °C | -40 °C |
