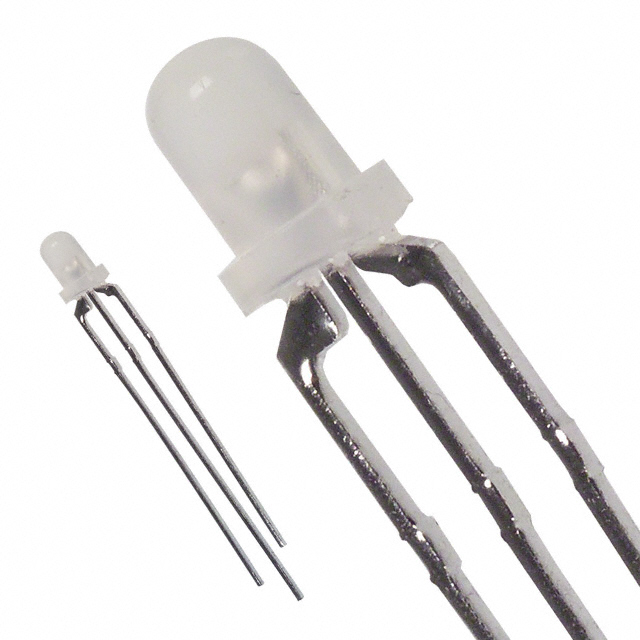

SSL-LX3059 Series

Manufacturer: Lumex Opto/Components Inc.

Catalog

LED GRN/YLW T-3MM TRI T/H

Part	Height (Max) [Max] [z]	Mounting Type	Package / Case	Millicandela Rating	Current - Test	Lens Size [diameter]	Supplier Device Package	Viewing Angle	Lens Color	Wavelength - Peak	Color	Voltage - Forward (Vf) (Typ)	Lens Style	Lens Transparency	Wavelength - Peak	Configuration	Millicandela Rating [custom]	Millicandela Rating [custom]	Lens Size	Lens Size	Current - Test [custom]	Current - Test [custom]	Millicandela Rating
Lumex Opto/Components Inc. SSL-LX3059SYSUGW	7.03 mm	Through Hole	Radial - 3 Leads	80 mcd 250 mcd	20 mA 20 mA	3 mm	T-3mm TRI-LEADED	60 °	White	574nm Green 590nm Yellow	Green Yellow	2 V 2.2 V	Round with Domed Top
Lumex Opto/Components Inc. SSL-LX3059IYW	7.03 mm	Through Hole	Radial - 3 Leads		20 mA 20 mA		T-3mm TRI-LEADED	60 °	White		Red Yellow	2 V 2.1 V	Round with Domed Top	Diffused	585 nm 635 nm	Common Cathode	30 mcd	30 mcd	3 mm	T-1
Lumex Opto/Components Inc. SSL-LX3059IGW	7.03 mm	Through Hole	Radial - 3 Leads	30 mcd 30 mcd			T-3mm TRI-LEADED	60 °	White		Green Red	2 V 2.2 V	Round with Domed Top	Diffused	565 nm 635 nm	Common Cathode			3 mm	T-1	20 mA	20 mA
Lumex Opto/Components Inc. SSL-LX3059GYW	7.03 mm	Through Hole	Radial - 3 Leads	6 mcd 6 mcd	20 mA 20 mA		T-3mm TRI-LEADED	60 °	White		Green Yellow	2 V 2.2 V	Round with Domed Top	Diffused	565 nm 585 nm	Common Cathode			3 mm	T-1

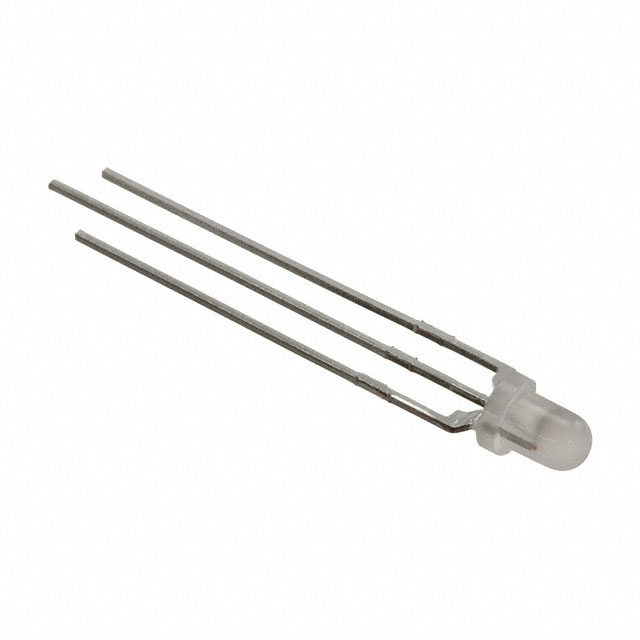

Lumex Opto/Components Inc. SSL-LX3059IGW-CA	7.03 mm	Through Hole	Radial - 3 Leads	30 mcd 30 mcd			T-3mm TRI-LEADED	60 °	White		Green Red	2 V 2.2 V	Round with Domed Top	Diffused	565 nm 635 nm	Common Anode			3 mm	T-1	20 mA	20 mA
Lumex Opto/Components Inc. SSL-LX3059SISUGW	7.03 mm	Through Hole	Radial				T-1 (3mm)	60 °	White		Green Red	2 V 2.2 V	Round with Domed Top	Diffused	574 nm 636 nm	Common Cathode			3 mm	T-1	20 mA	20 mA	240mcd Red 90mcd Green
Lumex Opto/Components Inc. SSL-LX3059IGW-TR	5 mm	Through Hole	Radial - 3 Leads	40 mcd 40 mcd			T-3mm TRI-LEADED	60 °	White		Green Red	2 V 2.2 V	Round with Domed Top	Diffused	565 nm 627 nm	Common Cathode			3 mm	T-1	20 mA	20 mA
